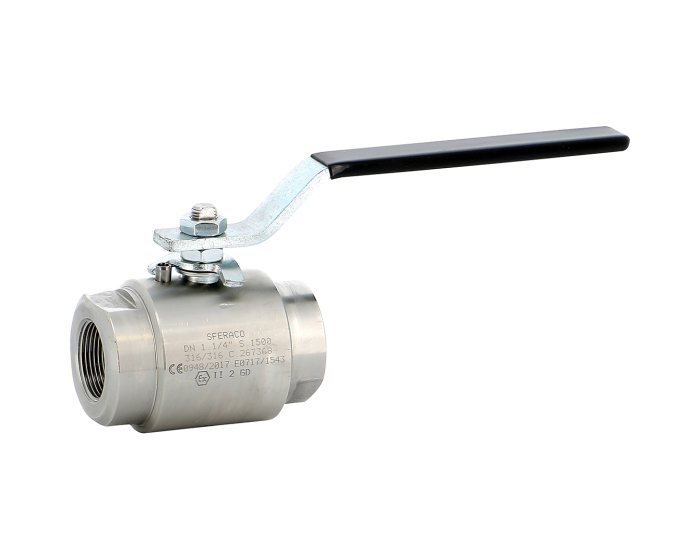

The 734 series ball valve, 2-piece body, made of forged stainless steel, Class 1500, for shutting off fluids in oils and gas industry. NPT and BSP connections are available.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Option certificate 3.1 | Yes |
| CE risk category | III Module B+C2 |
| NACE MR0175 | Yes |
| Thread standard | ISO 228-1 |
| Tightness test standard | API 598 |
| Stem sealing material | FKM O-ring |
| Antistatic device | Yes |
| Steam | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel ASTM A479 type 316L |
| Lockable | No |
| ATEX compatible | Yes |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 915.0 |
| Fluid | Hydrocarbons. gas |
| Body material | Stainless steel F316/F316L |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | No |
| PS (bar) | 255 |
| Connections | BSP FF |
| Seats | PEEK |
| Ball material | Stainless steel ASTM A276 316L |
| TS max (°C) | 250 |
| TS min (°C) | -30 |
| Ball valve design | 2-piece body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Carbon steel |
| Handle type | Black lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel F316/F316L Full 2-piece body BSP FF DN8 - 1/4'' | 735002 | S1006618 |
€127.87
(excl. btw)
|
add to cart |
| BSP FF Stainless steel F316/F316L Full 2-piece body BSP FF DN10 - 3/8'' | 735003 | S1006619 |
€127.87
(excl. btw)
|
add to cart |
| BSP FF Stainless steel F316/F316L Full 2-piece body DN15 - 1/2'' BSP FF | 735004 | S1006620 |
€164.71
(excl. btw)
|
add to cart |
| BSP FF Stainless steel F316/F316L Full 2-piece body DN20 - 3/4'' BSP FF | 735005 | S1006621 |
€239.61
(excl. btw)
|
add to cart |
| BSP FF Stainless steel F316/F316L Full 2-piece body DN25 - 1'' BSP FF | 735006 | S1006622 |
€327.14
(excl. btw)
|
add to cart |
| BSP FF Stainless steel F316/F316L Full 2-piece body DN32 - 1''1/4 BSP FF | 735007 | S1006623 |
€438.89
(excl. btw)
|
add to cart |
| BSP FF Stainless steel F316/F316L Full 2-piece body DN40 - 1''1/2 BSP FF | 735008 | S1006624 |
€602.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel F316/F316L Full 2-piece body DN50 - 2'' BSP FF | 735009 | S1006625 |
€898.50
(excl. btw)
|
add to cart |
| BSP FF Stainless steel F316/F316L Full 2-piece body NPT FF DN8 - 1/4'' | 735102 | S1006626 |
€127.87
(excl. btw)
|
add to cart |
| BSP FF Stainless steel F316/F316L Full 2-piece body NPT FF DN10 - 3/8'' | 735103 | S1006627 |
€127.87
(excl. btw)
|
add to cart |
| BSP FF Stainless steel F316/F316L Full 2-piece body DN15 - 1/2'' NPT FF | 735104 | S1006628 |
€164.71
(excl. btw)
|
add to cart |
| BSP FF Stainless steel F316/F316L Full 2-piece body DN20 - 3/4'' NPT FF | 735105 | S1006629 |
€239.61
(excl. btw)
|
add to cart |
| BSP FF Stainless steel F316/F316L Full 2-piece body DN25 - 1'' NPT FF | 735106 | S1006630 |
€327.14
(excl. btw)
|
add to cart |
| BSP FF Stainless steel F316/F316L Full 2-piece body DN32 - 1''1/4 NPT FF | 735107 | S1006631 |
€438.89
(excl. btw)
|
add to cart |
| BSP FF Stainless steel F316/F316L Full 2-piece body DN40 - 1''1/2 NPT FF | 735108 | S1006632 |
€602.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel F316/F316L Full 2-piece body DN50 - 2'' NPT FF | 735109 | S1006633 |
€898.50
(excl. btw)
|
add to cart |
