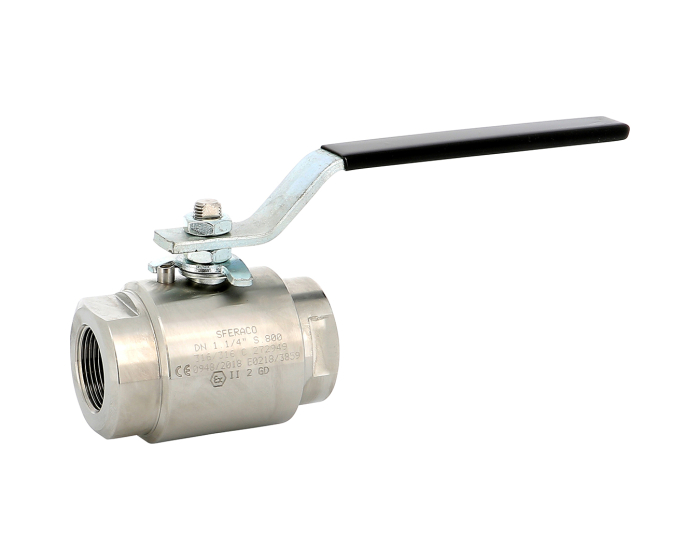

Stainless steel ball valve 716 2-piece body Forged 800lbs
€83.57
(excl. btw)
2-piece body 716 series ball valve, in forged stainless steel, Class 800, full bore, fire safe and ATEX compatible for the oil and gas industries.
| Specification |
Value |
| DN inches NPS |
1/4'' |
| Option certificate 3.1 |
Yes |
| CE risk category |
III Module B+C2 |
| NACE MR0175 |
Yes |
| Fire safe standard |
BS 6755-2 |
| Thread standard |
ISO 228-1 |
| Tightness test standard |
API 598 |
| Stem sealing material |
Graphite |
| Antistatic device |
Yes |
| Steam |
Yes |
| Opening device |
Handle |
| Application |
Industry |
| ATEX atmosphere |
Group II Cat. 2G/2D |
| Shaft/stem matérial |
Stainless steel ASTM A479 type 316L |
| Lockable |
No |
| ATEX compatible |
Yes |
| DN |
DN8 - 1/4'' |
| Face to Face (mm) |
915.0 |
| Fluid |
Hydrocarbons. gas |
| Body material |
Stainless steel F316/F316L |
| Number of ways |
2 |
| Bore |
Full |
| ISO pad 5211 |
No |
| PS (bar) |
132 |
| Connections |
BSP FF |
| Seats |
PTFE-Graphite |
| Ball material |
Stainless steel ASTM A276 316L |
| TS max (°C) |
180 |
| TS min (°C) |
-30 |
| Ball valve design |
2-piece body |
| ATEX zone |
1 & 21. 2 & 22 |
| Warranty period |
2 years |
| CE |
Yes |
| Handle material |
Carbon steel |
| Handle type |
Black lever |
| Fire safe |
Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name |
Product Number |
EVAC Number |
Price |
Add to Cart |
| 6279 |
BSP FF Stainless steel F316/F316L Full 2-piece body BSP FF DN8 - 1/4'' No |
716002 |
S1006506 |
€83.57
(excl. btw)
|
add to cart |
| 6280 |
BSP FF Stainless steel F316/F316L Full 2-piece body BSP FF DN10 - 3/8'' No |
716003 |
S1006507 |
€83.57
(excl. btw)
|
add to cart |
| 6281 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN15 - 1/2'' BSP FF No |
716004 |
S1006508 |
€114.36
(excl. btw)
|
add to cart |
| 6282 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN20 - 3/4'' BSP FF No |
716005 |
S1006509 |
€167.13
(excl. btw)
|
add to cart |
| 6283 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN25 - 1'' BSP FF No |
716006 |
S1006510 |
€239.70
(excl. btw)
|
add to cart |
| 6284 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN32 - 1''1/4 BSP FF No |
716007 |
S1006511 |
€335.37
(excl. btw)
|
add to cart |
| 6285 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN40 - 1''1/2 BSP FF No |
716008 |
S1006512 |
€451.91
(excl. btw)
|
add to cart |
| 6286 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN50 - 2'' BSP FF No |
716009 |
S1006513 |
€682.83
(excl. btw)
|
add to cart |
| 6287 |
BSP FF Stainless steel F316/F316L Full 2-piece body NPT FF DN8 - 1/4'' No |
716102 |
S1006514 |
€83.57
(excl. btw)
|
add to cart |
| 6288 |
BSP FF Stainless steel F316/F316L Full 2-piece body NPT FF DN10 - 3/8'' No |
716103 |
S1006515 |
€83.57
(excl. btw)
|
add to cart |
| 6289 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN15 - 1/2'' NPT FF No |
716104 |
S1006516 |
€114.36
(excl. btw)
|
add to cart |
| 6290 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN20 - 3/4'' NPT FF No |
716105 |
S1006517 |
€167.13
(excl. btw)
|
add to cart |
| 6291 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN25 - 1'' NPT FF No |
716106 |
S1006518 |
€239.70
(excl. btw)
|
add to cart |
| 6292 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN32 - 1''1/4 NPT FF No |
716107 |
S1006519 |
€335.37
(excl. btw)
|
add to cart |
| 6293 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN40 - 1''1/2 NPT FF No |
716108 |
S1006520 |
€451.91
(excl. btw)
|
add to cart |
| 6294 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN50 - 2'' NPT FF No |
716109 |
S1006521 |
€682.83
(excl. btw)
|
add to cart |
| 6295 |
BSP FF Stainless steel F316/F316L Full 2-piece body BSP FF DN8 - 1/4'' Yes |
716L002 |
S1006522 |
€108.44
(excl. btw)
|
add to cart |
| 6296 |
BSP FF Stainless steel F316/F316L Full 2-piece body BSP FF DN10 - 3/8'' Yes |
716L003 |
S1006523 |
€108.44
(excl. btw)
|
add to cart |
| 6297 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN15 - 1/2'' BSP FF Yes |
716L004 |
S1006524 |
€139.23
(excl. btw)
|
add to cart |
| 6298 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN20 - 3/4'' BSP FF Yes |
716L005 |
S1006525 |
€192.00
(excl. btw)
|
add to cart |
| 6299 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN25 - 1'' BSP FF Yes |
716L006 |
S1006526 |
€264.59
(excl. btw)
|
add to cart |
| 6300 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN32 - 1''1/4 BSP FF Yes |
716L007 |
S1006527 |
€360.24
(excl. btw)
|
add to cart |
| 6301 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN40 - 1''1/2 BSP FF Yes |
716L008 |
S1006528 |
€476.79
(excl. btw)
|
add to cart |
| 6302 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN50 - 2'' BSP FF Yes |
716L009 |
S1006529 |
€707.70
(excl. btw)
|
add to cart |
| 6303 |
BSP FF Stainless steel F316/F316L Full 2-piece body NPT FF DN8 - 1/4'' Yes |
716L102 |
S1006530 |
€108.44
(excl. btw)
|
add to cart |
| 6304 |
BSP FF Stainless steel F316/F316L Full 2-piece body NPT FF DN10 - 3/8'' Yes |
716L103 |
S1006531 |
€108.44
(excl. btw)
|
add to cart |
| 6305 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN15 - 1/2'' NPT FF Yes |
716L104 |
S1006532 |
€139.23
(excl. btw)
|
add to cart |
| 6306 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN20 - 3/4'' NPT FF Yes |
716L105 |
S1006533 |
€192.00
(excl. btw)
|
add to cart |
| 6307 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN25 - 1'' NPT FF Yes |
716L106 |
S1006534 |
€264.59
(excl. btw)
|
add to cart |
| 6308 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN32 - 1''1/4 NPT FF Yes |
716L107 |
S1006535 |
€360.24
(excl. btw)
|
add to cart |
| 6309 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN40 - 1''1/2 NPT FF Yes |
716L108 |
S1006536 |
€476.79
(excl. btw)
|
add to cart |
| 6310 |
BSP FF Stainless steel F316/F316L Full 2-piece body DN50 - 2'' NPT FF Yes |
716L109 |
S1006537 |
€707.70
(excl. btw)
|
add to cart |
