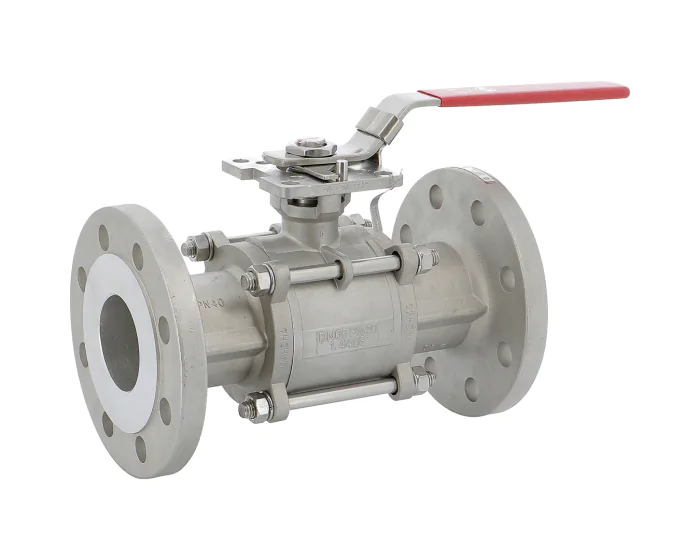

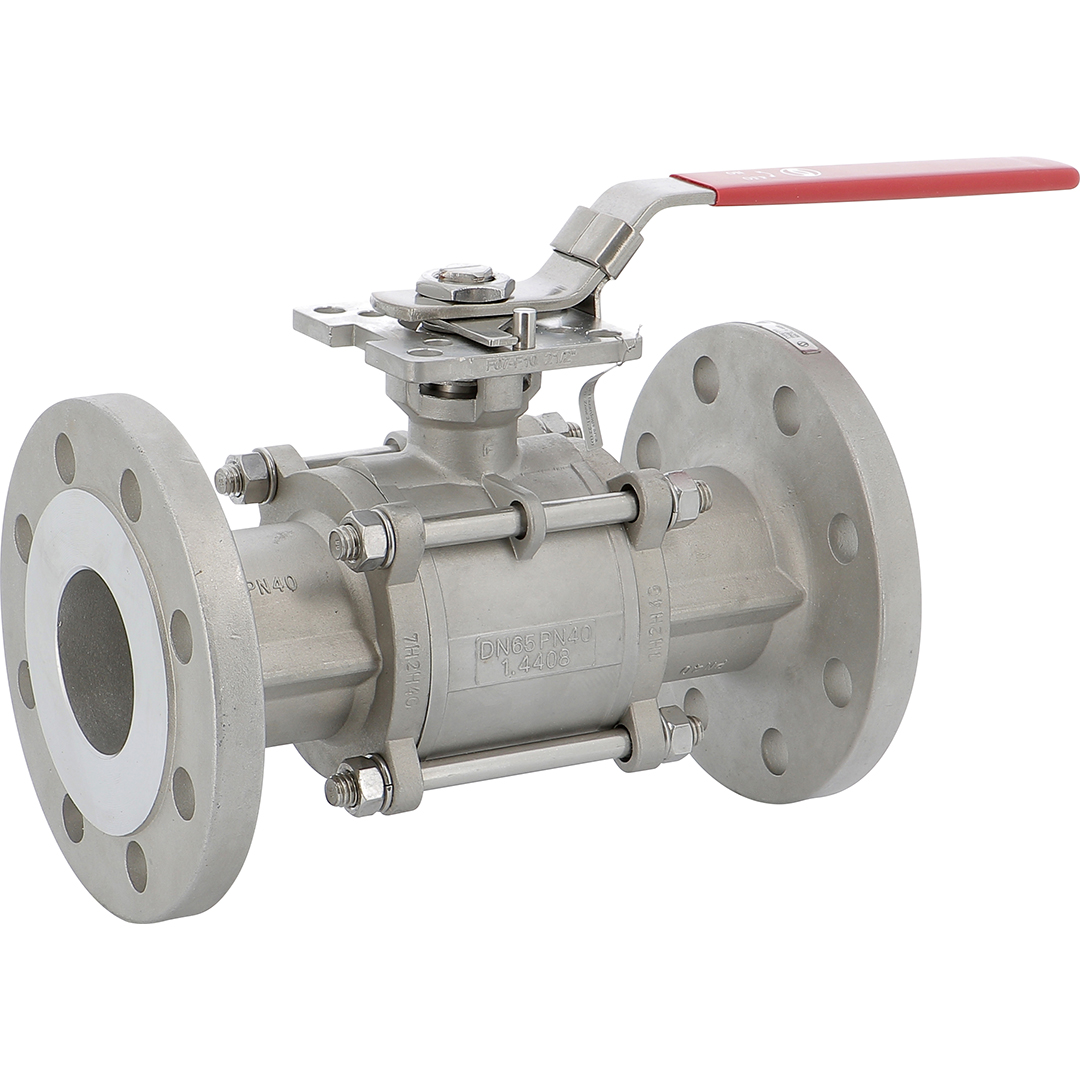

Stainless steel ball valve 711 3 piece body RF PN40 + ISO pad DN15

Stainless steel ball valve 711 3 piece body RF PN40 + ISO pad DN15

€120.69 (excl. btw)

3-piece body stainless steel ball valve with flanges PN40 Series 711 Sferaco with ISO pad 5211 direct mounting, full bore for chemical and pharmaceutical industries, petrochemicals, hydraulic installations

In stock Subject prior to sales
Categories : Kogelkranen

Documenten:

Certificate of conformity	Download
Manual	Download
Manual FR	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

Zooming in on the three-piece body flanged valves with ISO pad Our references 710 and 711 are three-piece body valves with RF PN40 flanges and ISO pad. The former is in A216WCB carbon steel and the latter is made up of CF8M stainless steel. Carbon steel tolerates temperatures comprised between -20 °C and + 220°C, while they range from -30 °C up to +220 °C with stainless steel. The maximum operating pressure goes up to 40 bar (18 bar for steam applications). These EN 558 series 1 (formerly DIN 32020 F1) three-piece body valves vary from DN15 to DN100 in size. They are mostly used in the chemical and pharmaceutical industries, petrochemical industries, in hydraulic installations, and compressed air systems. Three-piece body flanged valves with ISO pad have multiple significant technical specificities: Full bore Anti-blowout stem Locking device Antistatic device Moreover, our three-piece valves also offer a great number of advantages: Highly efficient seats, in PTFE +50% 316 stainless-steel, for better resistance to creep and high temperatures Special 25% Grafoil gland pack reducing frictions and ensuring tightness, with elastic washers for lining wear and tear, and a tab washer to prevent loosening Direct mounting valves thanks to the ISO 5211 pad The three-piece body simplifies maintenance (for seal changing or cleaning for example) Welded plate indicating product number for easier maintenance and full traceability Last, TA LUFT certification: ensures enhanced tightness at stem, reducing risks of outward leakage

Specification	Value
DN inches NPS	1/2''
Option certificate 3.1	Yes
CE risk category	III Module H
EN face-to-face standard	EN 558 Series 1
DIN face-to-face standard	DIN 3202 F1
Face to face standard	EN 558 Series 1. DIN 3202 F1
Tightness test standard	EN 12266-1 Rate A
Stem sealing material	25% Graphite filled PTFE gland packing
Antistatic device	Yes
Steam	Yes
Opening device	Handle
Application	Industry
ATEX atmosphere	Group II Cat. 2G/2D
Shaft/stem matérial	Stainless steel AISI 316
Lockable	Yes
Square, star (mm)	Square 9 mm
ATEX compatible	Yes
Torque (Nm)	7
DN	DN15 - 1/2''
Face to Face (mm)	1670.0
Fluid	Hydrocarbons. gas
Kv (m³/h)	31.3
Body material	Stainless steel CF8M (1.4408)
Number of ways	2
Bore	Full
ISO pad 5211	Yes
Packing gland	Yes
PS (bar)	40
Connections	Flanged PN10/40
Seats	PTFE-Stainless steel
Ball material	Stainless steel ASTM A351 CF8M
TS max (°C)	220
TS min (°C)	-30
Ball valve design	flanged 3-piece body
ATEX zone	1 & 21. 2 & 22
Warranty period	2 years
CE	Yes
Handle material	Stainless steel AISI 304
Handle type	Red lever

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
8526	Flanged PN10/40 Stainless steel CF8M (1.4408) Full flanged 3-piece body DN15 - 1/2''	711015	S1008557	€120.69 (excl. btw)	add to cart
8527	Flanged PN10/40 Stainless steel CF8M (1.4408) Full flanged 3-piece body DN20 - 3/4''	711020	S1008558	€154.16 (excl. btw)	add to cart
8528	Flanged PN10/40 Stainless steel CF8M (1.4408) Full flanged 3-piece body DN25 - 1''	711025	S1008559	€196.39 (excl. btw)	add to cart
8529	Flanged PN10/40 Stainless steel CF8M (1.4408) Full flanged 3-piece body DN32 - 1''1/4	711032	S1008560	€254.89 (excl. btw)	add to cart
8530	Flanged PN10/40 Stainless steel CF8M (1.4408) Full flanged 3-piece body DN40 - 1''1/2	711040	S1008561	€348.41 (excl. btw)	add to cart
8531	Flanged PN10/40 Stainless steel CF8M (1.4408) Full flanged 3-piece body DN50 - 2''	711050	S1008562	€477.24 (excl. btw)	add to cart
8532	Flanged PN10/40 Stainless steel CF8M (1.4408) Full flanged 3-piece body DN65 - 2''1/2	711065	S1008563	€839.69 (excl. btw)	add to cart
8533	Flanged PN10/40 Stainless steel CF8M (1.4408) Full flanged 3-piece body DN80 - 3''	711080	S1008564	€1,160.16 (excl. btw)	add to cart
8534	Flanged PN10/40 Stainless steel CF8M (1.4408) Full flanged 3-piece body DN100 - 4''	711100	S1008565	€1,846.67 (excl. btw)	add to cart
