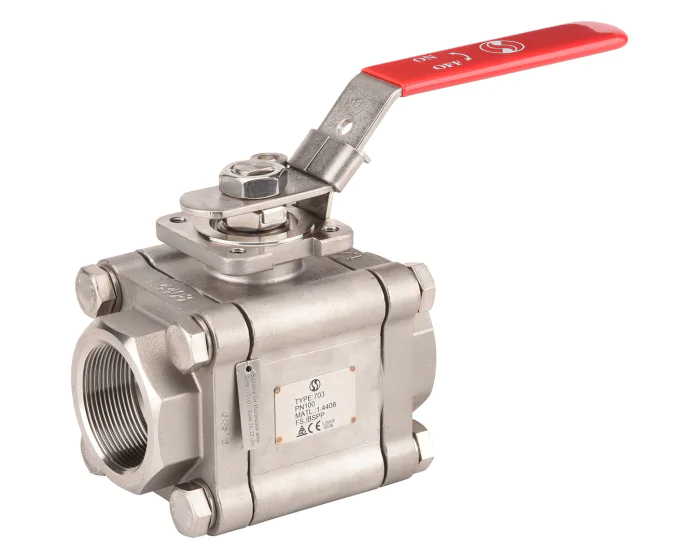

Stainless steel ball valve 703R 3-piece body + ISO pad Fire Safe
€78.36
(excl. btw)
703R Series is a robust 3-piece body ISO pad and fire-safe ball valve. Ideal for heavy industries, it offers temperature resistance from -30°C to +220°C, 140 bar max pressure, and ATEX compatibility. Sizes 1/4'' to 2'', reduced bore.
Specification
Value
DN inches NPS
1/2''
Option certificate 3.1
Yes
Construction standard
EN 12516-1 - ASME B16.34
CE risk category
III Module H
Fire safe standard
ISO 10497:2010. API 607 V6
Thread standard
ISO 228-1
Tightness test standard
EN 12266-1 Rate A
Stem sealing material
Graphite gland packing
Antistatic device
Yes
Steam
Yes
Opening device
Handle
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel AISI 316
Lockable
Yes
Square, star (mm)
MEP Ø9.5x6.5
ATEX compatible
Yes
Torque (Nm)
10
DN
DN15 - 1/2''
Face to Face (mm)
860.0
Fluid
Hydrocarbons. gas
Kv (m³/h)
13.4
Body material
Stainless steel CF8M (1.4408)
Number of ways
2
Bore
Reduced
ISO pad 5211
Yes
Packing gland
Yes
PS (bar)
140
Connections
BSP FF
Seats
PTFE-Carbon
Ball material
Stainless steel ASTM A351 CF8M
TS max (°C)
220
TS min (°C)
-30
Ball valve design
3-piece body
ATEX zone
1 & 21. 2 & 22
Warranty period
2 years
CE
Yes
Handle material
Stainless steel AISI 304
Handle type
Red lever
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
8375
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN15 - 1/2'' BSP FF
703R004
S1008415
€78.36
(excl. btw)
add to cart
8376
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN20 - 3/4'' BSP FF
703R005
S1008416
€94.44
(excl. btw)
add to cart
8377
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN25 - 1'' BSP FF
703R006
S1008417
€132.56
(excl. btw)
add to cart
8378
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN32 - 1''1/4 BSP FF
703R007
S1008418
€189.76
(excl. btw)
add to cart
8379
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN40 - 1''1/2 BSP FF
703R008
S1008419
€245.81
(excl. btw)
add to cart
8380
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN50 - 2'' BSP FF
703R009
S1008420
€448.01
(excl. btw)
add to cart
8381
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN15 - 1/2'' Welding BW
703R115
S1008421
€78.36
(excl. btw)
add to cart
8382
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN20 - 3/4'' Welding BW
703R120
S1008422
€94.44
(excl. btw)
add to cart
8383
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN25 - 1'' Welding BW
703R125
S1008423
€132.56
(excl. btw)
add to cart
8384
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN32 - 1''1/4 Welding BW
703R132
S1008424
€189.76
(excl. btw)
add to cart
8385
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN40 - 1''1/2 Welding BW
703R140
S1008425
€245.81
(excl. btw)
add to cart
8386
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN50 - 2'' Welding BW
703R150
S1008426
€448.01
(excl. btw)
add to cart
8387
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN15 - 1/2'' Welding SW
703R215
S1008427
€78.36
(excl. btw)
add to cart
8388
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN20 - 3/4'' Welding SW
703R220
S1008428
€94.44
(excl. btw)
add to cart
8389
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN25 - 1'' Welding SW
703R225
S1008429
€132.56
(excl. btw)
add to cart
8390
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN32 - 1''1/4 Welding SW
703R232
S1008430
€189.76
(excl. btw)
add to cart
8391
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN40 - 1''1/2 Welding SW
703R240
S1008431
€245.81
(excl. btw)
add to cart
8392
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN50 - 2'' Welding SW
703R250
S1008432
€448.01
(excl. btw)
add to cart
8393
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN15 - 1/2'' NPT FF
703R304
S1008433
€78.36
(excl. btw)
add to cart
8394
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN20 - 3/4'' NPT FF
703R305
S1008434
€94.44
(excl. btw)
add to cart
8395
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN25 - 1'' NPT FF
703R306
S1008435
€132.56
(excl. btw)
add to cart
8396
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN32 - 1''1/4 NPT FF
703R307
S1008436
€189.76
(excl. btw)
add to cart
8397
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN40 - 1''1/2 NPT FF
703R308
S1008437
€245.81
(excl. btw)
add to cart
8398
BSP FF Stainless steel CF8M (1.4408) Reduced 3-piece body DN50 - 2'' NPT FF
703R309
S1008438
€448.01
(excl. btw)
add to cart
