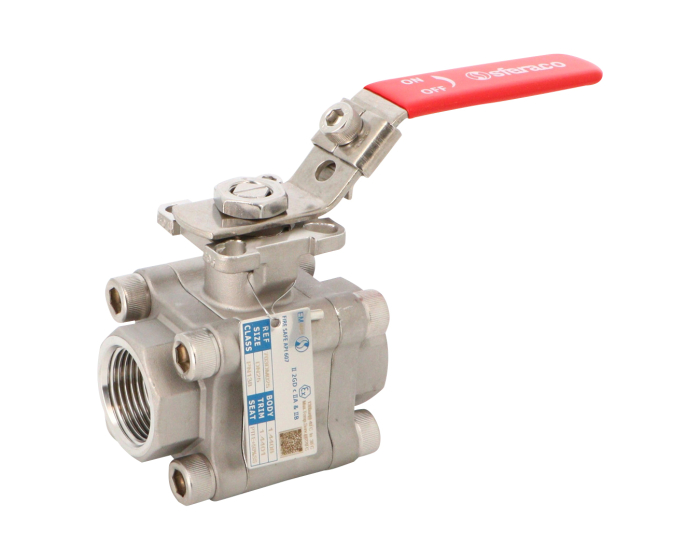

The 703 series stainless steel ball valve offers full bore flow with CF8M body and ball, ensuring durability in industrial use. Reinforced PTFE seats with 50% stainless steel provide enhanced resistance. Operating range: -40°C to +220°C.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Option certificate 3.1 | Yes |
| Antistatic device | Yes |
| Steam | Yes |
| Opening device | Handle |
| Lockable | Yes |
| Square, star (mm) | Square 9 mm |
| ATEX compatible | Yes |
| DN | DN8 - 1/4'' |
| Fluid | Hydrocarbons. gas |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 138 |
| Connections | BSP FF |
| Seats | PTFE-Stainless steel |
| TS max (°C) | 220 |
| TS min (°C) | -40 |
| Ball valve design | 3-piece body |
| Warranty period | 2 years |
| Handle type | Red lever |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF DN8 - 1/4'' | 703DM002 | S1008719 |
€88.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF DN10 - 3/8'' | 703DM003 | S1008720 |
€88.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' BSP FF | 703DM004 | S1008721 |
€88.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF | 703DM005 | S1008722 |
€88.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' BSP FF | 703DM006 | S1008723 |
€131.24
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 BSP FF | 703DM007 | S1008724 |
€171.30
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 BSP FF | 703DM008 | S1008725 |
€235.31
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF | 703DM009 | S1008726 |
€375.29
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN8 - 1/4'' Welding BW | 703DM108 | S1008727 |
€88.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body Welding BW DN10 - 3/8'' | 703DM110 | S1008728 |
€88.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Welding BW | 703DM115 | S1008729 |
€88.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Welding BW | 703DM120 | S1008730 |
€88.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Welding BW | 703DM125 | S1008731 |
€131.24
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Welding BW | 703DM132 | S1008732 |
€171.30
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Welding BW | 703DM140 | S1008733 |
€235.31
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding BW | 703DM150 | S1008734 |
€375.29
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN8 - 1/4'' Welding SW | 703DM208 | S1008735 |
€88.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN10 - 3/8'' Welding SW | 703DM210 | S1008736 |
€88.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Welding SW | 703DM215 | S1008737 |
€88.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Welding SW | 703DM220 | S1008738 |
€88.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Welding SW | 703DM225 | S1008739 |
€131.24
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Welding SW | 703DM232 | S1008740 |
€171.30
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Welding SW | 703DM240 | S1008741 |
€235.31
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding SW | 703DM250 | S1008742 |
€375.29
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body NPT FF DN8 - 1/4'' | 703DM302 | S1008743 |
€88.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body NPT FF DN10 - 3/8'' | 703DM303 | S1008744 |
€88.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' NPT FF | 703DM304 | S1008745 |
€88.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' NPT FF | 703DM305 | S1008746 |
€88.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' NPT FF | 703DM306 | S1008747 |
€131.24
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 NPT FF | 703DM307 | S1008748 |
€171.30
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 NPT FF | 703DM308 | S1008749 |
€235.31
(excl. btw)
|
add to cart |
