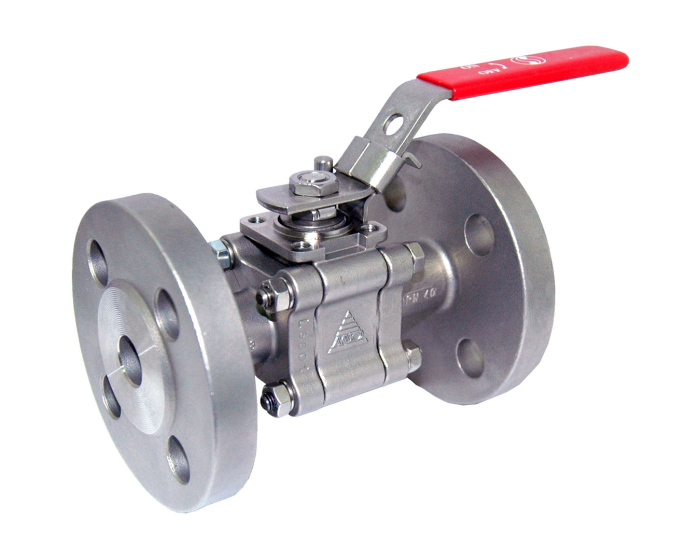

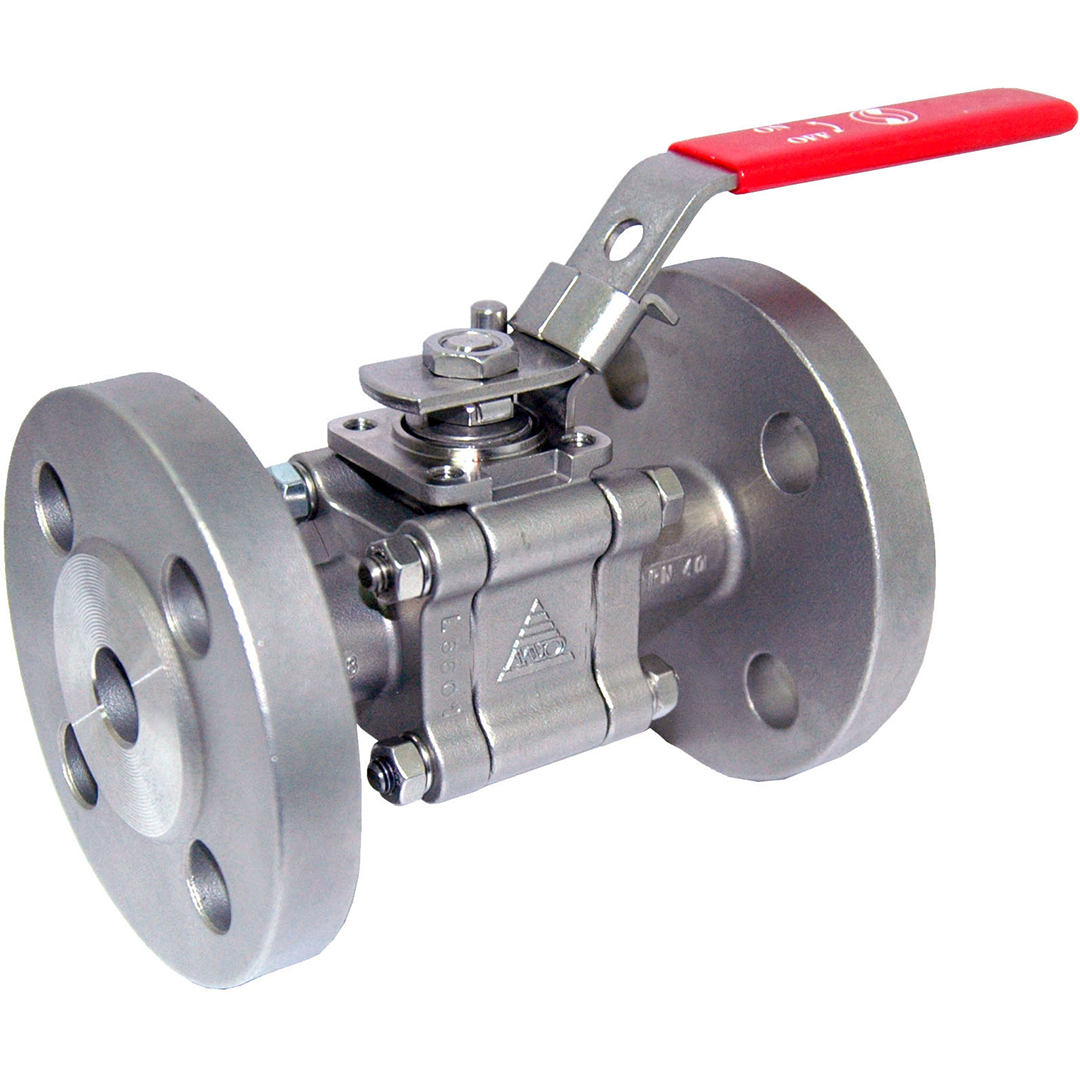

The 7034 series ball valve, 3-piece body with flanges PN40, in stainless steel, with packing gland, double antistatic system, embedded tie rods for the chemical, compressed air and petrochemical industries.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| Construction standard | EN 12516-1 - ASME B16.34 |
| CE risk category | III Module H |
| Fire safe standard | ISO 10497:2010. API 607 V6 |
| EN face-to-face standard | EN 558 Series 1 |
| DIN face-to-face standard | DIN 3202 F1 |
| Face to face standard | EN 558 Series 1. DIN 3202 F1 |
| Tightness test standard | EN 12266-1 Rate A |
| Stem sealing material | Graphite gland packing |
| Antistatic device | Yes |
| Steam | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Lockable | Yes |
| Square, star (mm) | MEP Ø9.5x6.5 |
| ATEX compatible | Yes |
| Torque (Nm) | 10 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 1670.0 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 31.3 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 40 |
| Connections | Flanged PN10/40 |
| Seats | PTFE-Carbon |
| Ball material | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 220 |
| TS min (°C) | -30 |
| Ball valve design | flanged 3-piece body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full flanged 3-piece body DN15 - 1/2'' | 703415 | S1008575 |
€173.71
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full flanged 3-piece body DN20 - 3/4'' | 703420 | S1008576 |
€240.74
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full flanged 3-piece body DN25 - 1'' | 703425 | S1008577 |
€316.64
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full flanged 3-piece body DN32 - 1''1/4 | 703432 | S1008578 |
€453.84
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full flanged 3-piece body DN40 - 1''1/2 | 703440 | S1008579 |
€569.64
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full flanged 3-piece body DN50 - 2'' | 703450 | S1008580 |
€864.11
(excl. btw)
|
add to cart |
