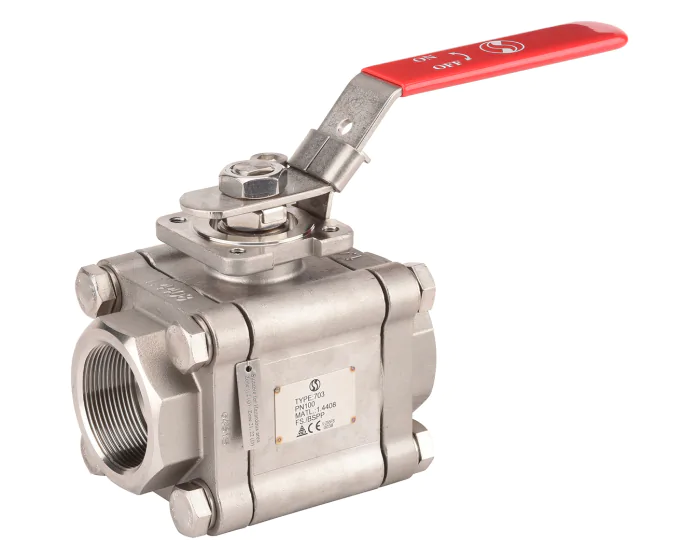

Stainless steel ball valve 703 3-piece body + ISO pad Fire Safe
€67.47
(excl. btw)
703 Series is a robust 3-piece body ISO pad and fire-safe ball valve. Ideal for heavy industries, it offers temperature resistance from -30°C to +220°C, 140 bar max pressure, and ATEX compatibility. Sizes 1/4'' to 2''. A reliable choice.
Specification
Value
DN inches NPS
1/4''
Option certificate 3.1
Yes
Construction standard
EN 12516-1 - ASME B16.34
CE risk category
III Module H
Fire safe standard
ISO 10497:2010. API 607 V6
Thread standard
ISO 228-1
Tightness test standard
EN 12266-1 Rate A
Stem sealing material
Graphite gland packing
Antistatic device
Yes
Steam
Yes
Opening device
Handle
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel AISI 316
Lockable
Yes
Square, star (mm)
MEP Ø9.5x6.5
ATEX compatible
Yes
Torque (Nm)
6
DN
DN8 - 1/4''
Face to Face (mm)
860.0
Fluid
Hydrocarbons. gas
Kv (m³/h)
13.0
Body material
Stainless steel CF8M (1.4408)
Number of ways
2
Bore
Full
ISO pad 5211
Yes
Packing gland
Yes
PS (bar)
140
Connections
BSP FF
Seats
PTFE-Carbon
Ball material
Stainless steel ASTM A351 CF8M
TS max (°C)
220
TS min (°C)
-30
Ball valve design
3-piece body
ATEX zone
1 & 21. 2 & 22
Warranty period
2 years
CE
Yes
Handle material
Stainless steel AISI 304
Handle type
Red lever
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
8433
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF DN8 - 1/4''
703002
S1008471
€67.47
(excl. btw)
add to cart
8434
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF DN10 - 3/8''
703003
S1008472
€67.47
(excl. btw)
add to cart
8435
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' BSP FF
703004
S1008473
€72.31
(excl. btw)
add to cart
8436
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF
703005
S1008474
€93.19
(excl. btw)
add to cart
8437
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' BSP FF
703006
S1008475
€124.13
(excl. btw)
add to cart
8438
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 BSP FF
703007
S1008476
€181.41
(excl. btw)
add to cart
8439
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 BSP FF
703008
S1008477
€276.36
(excl. btw)
add to cart
8440
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF
703009
S1008478
€504.29
(excl. btw)
add to cart
8441
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN8 - 1/4'' Welding BW
703108
S1008479
€67.47
(excl. btw)
add to cart
8442
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body Welding BW DN10 - 3/8''
703110
S1008480
€67.47
(excl. btw)
add to cart
8443
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Welding BW
703115
S1008481
€72.31
(excl. btw)
add to cart
8444
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Welding BW
703120
S1008482
€93.19
(excl. btw)
add to cart
8445
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Welding BW
703125
S1008483
€124.13
(excl. btw)
add to cart
8446
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Welding BW
703132
S1008484
€181.41
(excl. btw)
add to cart
8447
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Welding BW
703140
S1008485
€276.36
(excl. btw)
add to cart
8448
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding BW
703150
S1008486
€504.29
(excl. btw)
add to cart
8449
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN8 - 1/4'' Welding SW
703208
S1008487
€67.47
(excl. btw)
add to cart
8450
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN10 - 3/8'' Welding SW
703210
S1008488
€67.47
(excl. btw)
add to cart
8451
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Welding SW
703215
S1008489
€72.31
(excl. btw)
add to cart
8452
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Welding SW
703220
S1008490
€93.19
(excl. btw)
add to cart
8453
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Welding SW
703225
S1008491
€124.13
(excl. btw)
add to cart
8454
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Welding SW
703232
S1008492
€181.41
(excl. btw)
add to cart
8455
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Welding SW
703240
S1008493
€276.36
(excl. btw)
add to cart
8456
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding SW
703250
S1008494
€504.29
(excl. btw)
add to cart
8457
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body NPT FF DN8 - 1/4''
703302
S1008495
€67.47
(excl. btw)
add to cart
8458
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body NPT FF DN10 - 3/8''
703303
S1008496
€67.47
(excl. btw)
add to cart
8459
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' NPT FF
703304
S1008497
€72.31
(excl. btw)
add to cart
8460
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' NPT FF
703305
S1008498
€93.19
(excl. btw)
add to cart
8461
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' NPT FF
703306
S1008499
€124.13
(excl. btw)
add to cart
8462
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 NPT FF
703307
S1008500
€181.41
(excl. btw)
add to cart
8463
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 NPT FF
703308
S1008501
€276.36
(excl. btw)
add to cart
8464
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' NPT FF
703309
S1008502
€504.29
(excl. btw)
add to cart
