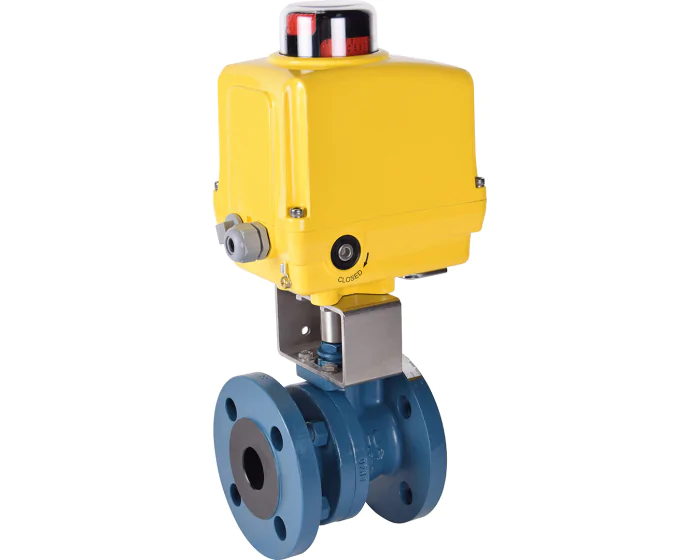

Steel body 1.0619 and V 60° ball in stainless steel 1.4408. Fire safe. PTFE-stainless steel seats. PS: 40 bar up to DN50, 16 bar above. Electric actuator type SA/NA PCU. Control: 4-20 mA.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Delta P (bar) | 10 |
| Opening device/signal | 4-20 mA / 0-10 V |
| DN | DN65 - 2''1/2 |
| Protection index (IP) | IP 67 |
| Kv (m³/h) | 150.00 |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | Regulation |
| Electric actuator type | SA05 PCU |
| Electric actuator series | SA/NA series |
| TS max (°C) | 230 |
| TS min (°C) | -20 |
| Warranty period | 1 year |
| CE | Risk category III |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Carbon steel A216 WCB (1.0619) DN65 - 2''1/2 | 516AIS065V6NA230 | S1009767 |
€3,064.66
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) DN80 - 3'' | 516AIS080V6NA230 | S1009768 |
€3,540.80
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) DN100 - 4'' | 516AIS100V6NA230 | S1009769 |
€4,915.67
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) DN15 - 1/2'' | 540AIS015V6SA230 | S1009770 |
€1,522.84
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) DN20 - 3/4'' | 540AIS020V6SA230 | S1009771 |
€1,573.21
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) DN25 - 1'' | 540AIS025V6SA230 | S1009772 |
€1,665.94
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) DN32 - 1''1/4 | 540AIS032V6SA230 | S1009773 |
€1,855.13
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) DN40 - 1''1/2 | 540AIS040V6NA230 | S1009774 |
€2,345.89
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) DN50 - 2'' | 540AIS050V6NA230 | S1009775 |
€2,624.17
(excl. btw)
|
add to cart |
