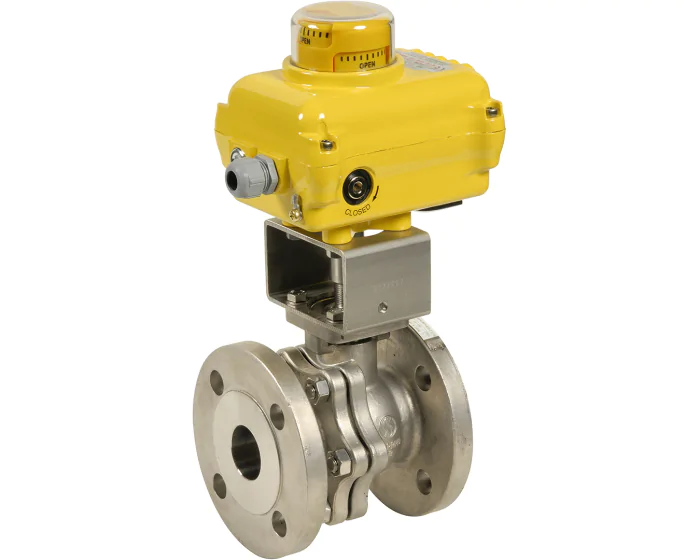

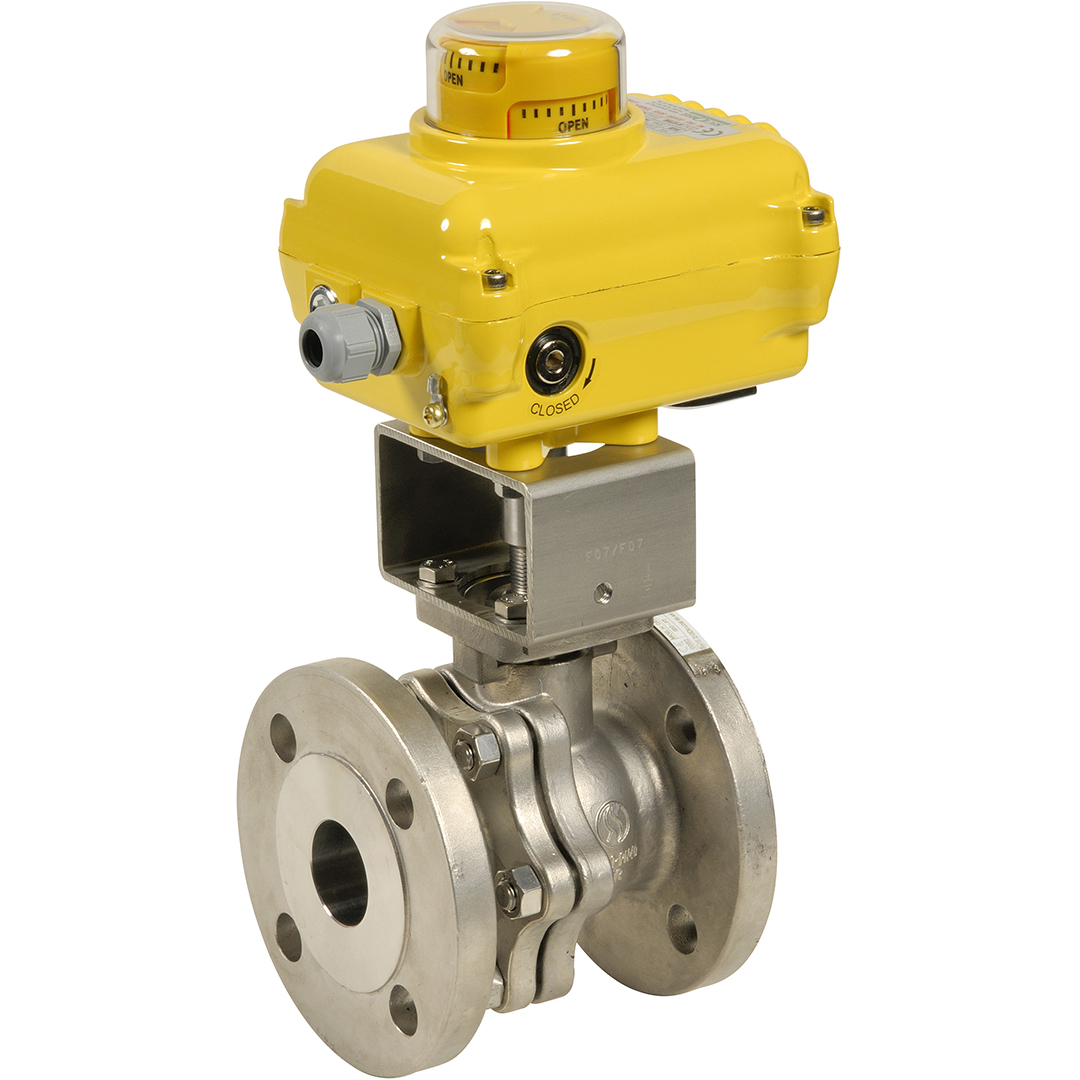

Split body stainless steel flanged ball valve 753 DN15 + SA05 230V AC
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 115.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 40 |
| Power (W) | 6 |
| Connections | Flanged PN40 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 05 |
| Electric actuator series | SA/NA series |
| Seats | TFM 1600 |
| Operating time (s) | 17.0 |
| Voltage | 230 V AC |
| TS max (°C) | 200 |
| TS min (°C) | -30 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN40 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' | 274402023010 | S1005724 |
€656.81
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' | 274403023010 | S1005725 |
€684.66
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' | 274404023010 | S1005726 |
€732.97
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 | 274405023010 | S1005727 |
€816.81
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 | 274406023010 | S1005728 |
€875.97
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' | 274409023130 | S1005729 |
€1,949.10
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 2-piece body DN100 - 4'' | 274410023150 | S1005730 |
€2,533.61
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 2-piece body DN125 - 5'' | 274411023150 | S1005731 |
€3,380.60
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 2-piece body DN150 - 6'' | 274412023160 | S1005732 |
€4,030.21
(excl. btw)
|
add to cart |
