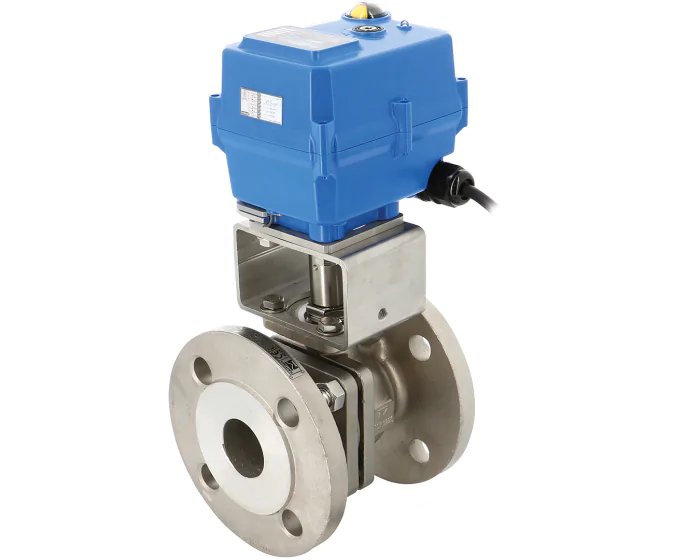

The split-body 763 ball valve has a CF8M (1.4408) stainless steel body and ball and PTFE/glass seats. It is actuated with a TCR-N electric actuator. PS: 40 or 16 bar, TS: 200°C. Flanges PN16 RF.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 40 |
| Connections | Flanged PN16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-02N |
| Electric actuator series | TCR Series |
| Seats | PTFE-Glass |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 200 |
| TS min (°C) | -30 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' 95-265 V AC/DC | 274362024110 | S1006153 |
€424.31
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' 24 V AC/DC | 274362024111 | S1006154 |
€424.31
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' 95-265 V AC/DC | 274363024110 | S1006155 |
€434.93
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' 24 V AC/DC | 274363024111 | S1006156 |
€434.93
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' 95-265 V AC/DC | 274364024310 | S1006157 |
€487.97
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' 24 V AC/DC | 274364024311 | S1006158 |
€487.97
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 95-265 V AC/DC | 274365024310 | S1006159 |
€541.01
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 24 V AC/DC | 274365024311 | S1006160 |
€541.01
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 95-265 V AC/DC | 274366024310 | S1006161 |
€594.06
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 24 V AC/DC | 274366024311 | S1006162 |
€594.06
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' 95-265 V AC/DC | 274367024610 | S1006163 |
€854.20
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 95-265 V AC/DC | 274368024610 | S1006164 |
€1,050.09
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 24 V AC/DC | 274368024611 | S1006165 |
€1,050.09
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' 95-265 V AC/DC | 274369024700 | S1006166 |
€1,487.74
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN100 - 4'' 95-265 V AC/DC | 274370024720 | S1006167 |
€1,888.89
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN125 - 5'' 95-265 V AC/DC | 274371024720 | S1006168 |
€2,577.67
(excl. btw)
|
add to cart |
