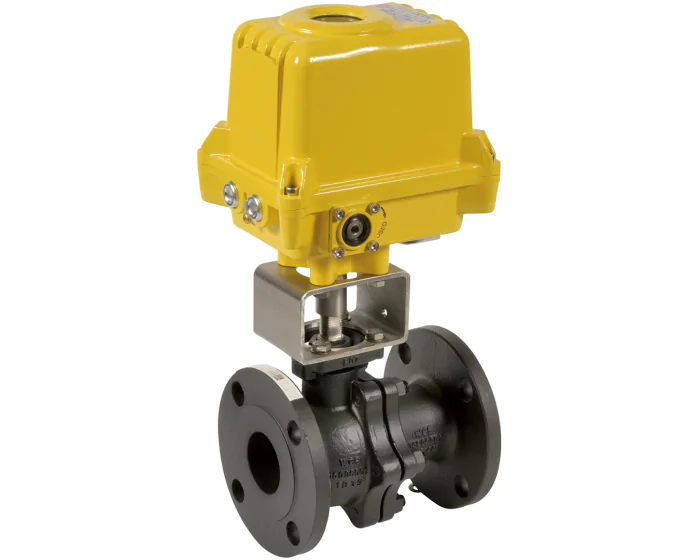

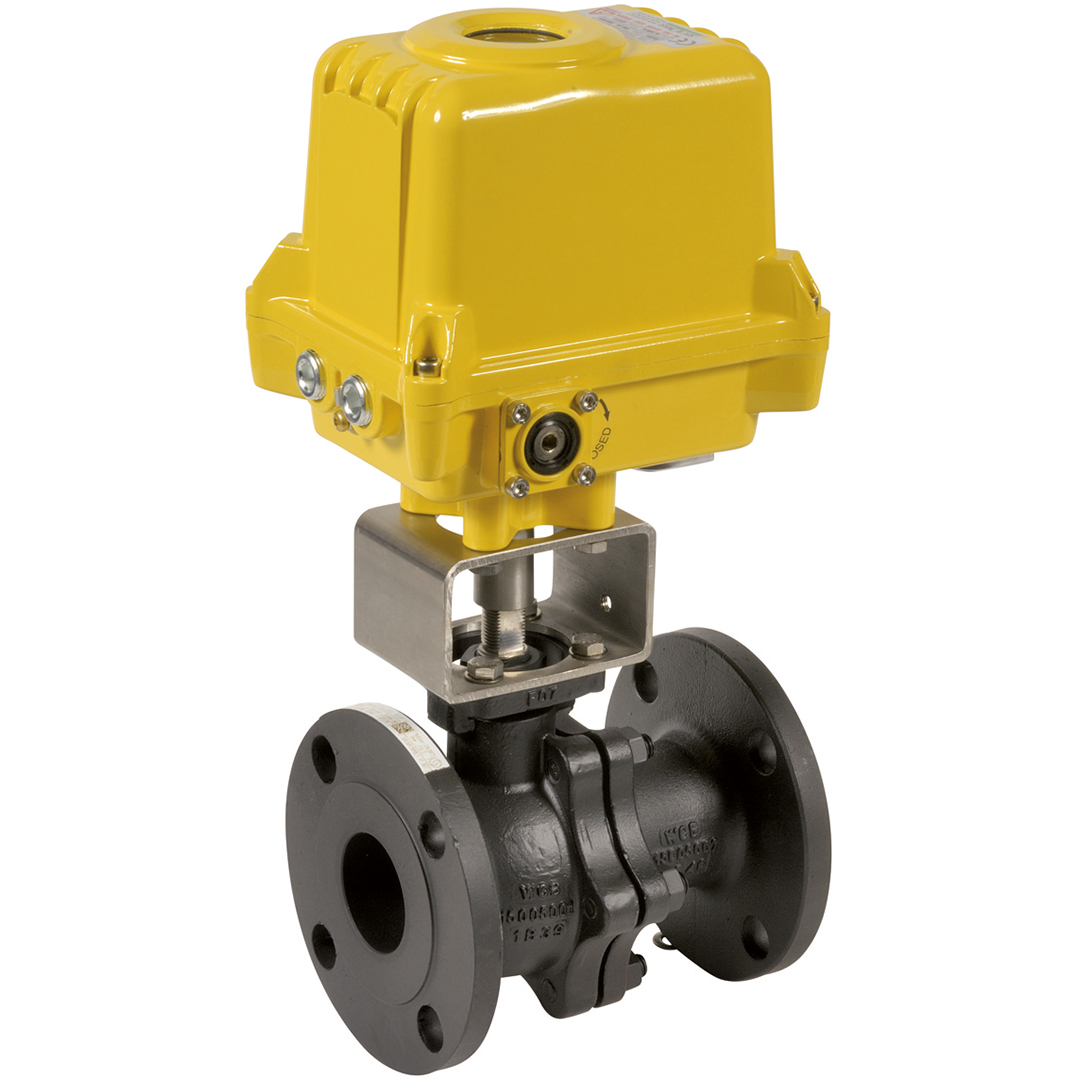

Split body carbon steel flanged ball valve 752 DN15 + SA05X 230V AC
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| ATEX atmosphere | IIB |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 115.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex d |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 40 |
| Power (W) | 6 |
| Connections | Flanged PN40 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA05-X |
| Electric actuator series | SA-X/NA-X ATEX series |
| Seats | TFM 1600 |
| Operating time (s) | 17.0 |
| Surface temperature | T4 |
| Voltage | 230 V AC |
| TS max (°C) | 200 |
| TS min (°C) | -20 |
| Ball valve design | 2-piece body |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
| CE | Risk category III |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' | 274282023310 | S1005579 |
€812.11
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' | 274283023310 | S1005580 |
€824.83
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' | 274284023310 | S1005581 |
€851.66
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN32 - 1''1/4 | 274285023310 | S1005582 |
€904.39
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN40 - 1''1/2 | 274286023310 | S1005583 |
€953.29
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN80 - 3'' | 274289023340 | S1005584 |
€1,831.41
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN100 - 4'' | 274290023360 | S1005585 |
€2,235.96
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN125 - 5'' | 274291023360 | S1005586 |
€2,798.89
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN150 - 6'' | 274292023370 | S1005587 |
€3,324.61
(excl. btw)
|
add to cart |
