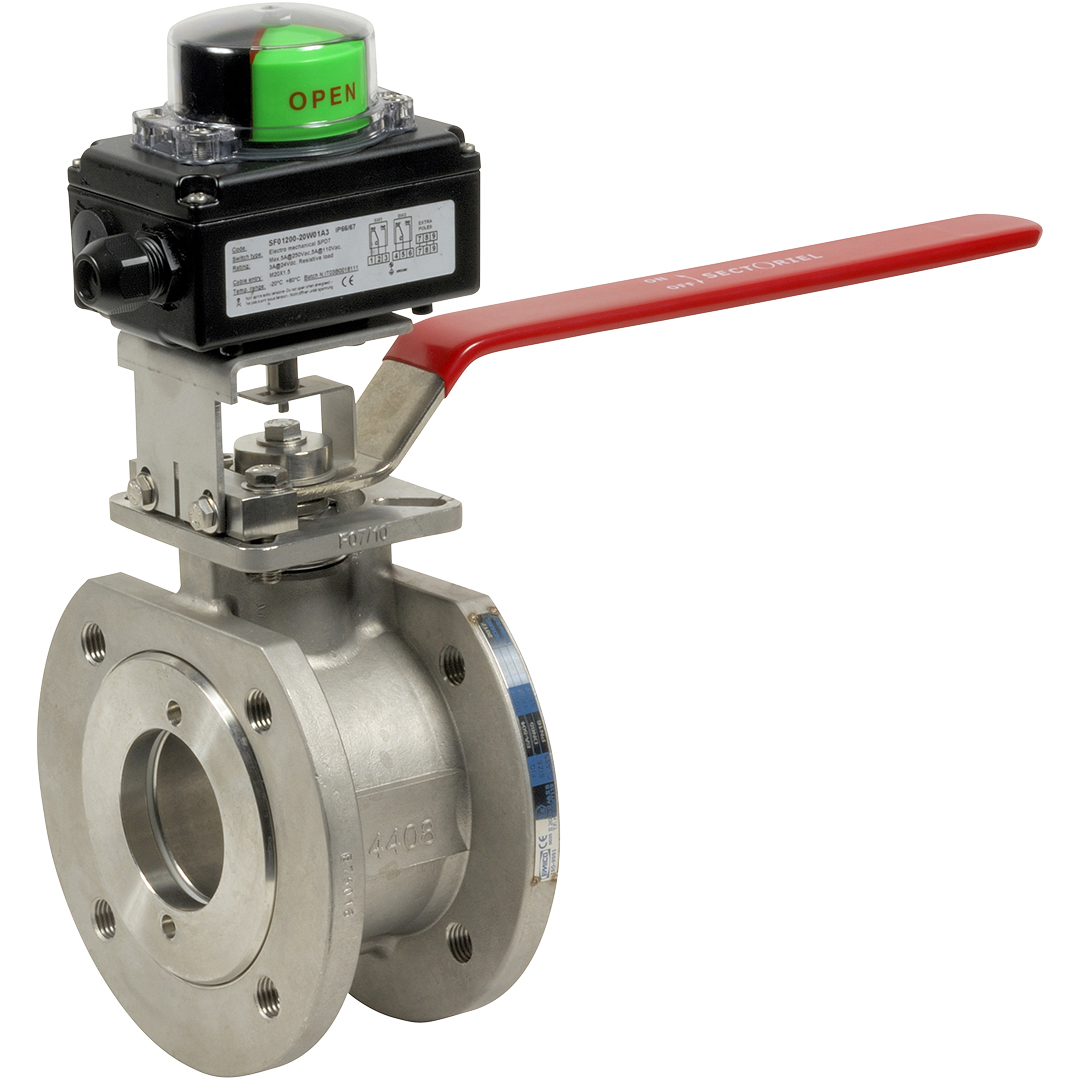

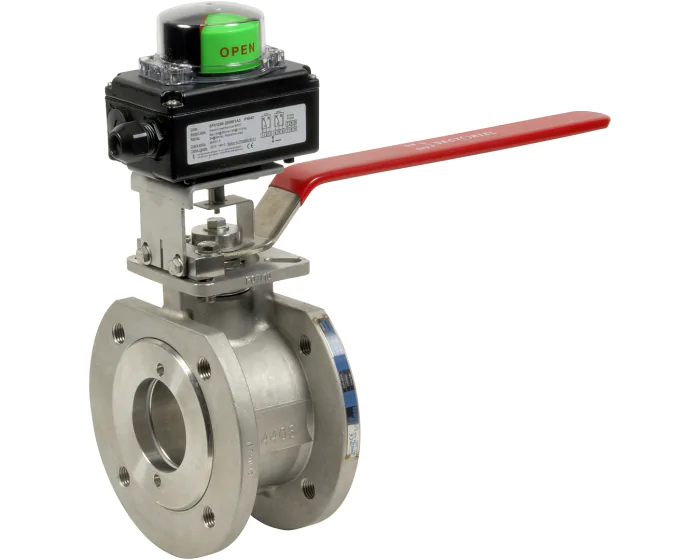

Stainless steel body and ball 1.4408, PTFE seats, full bore. PS: 16 bar - TS: -30/+180°C. Fittings between flanges PN16 RF. Limit switch box SF012, 2 dry contacts SPDT.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Shaft/stem matérial | Stainless steel 316 |
| Switch type | dry SPDT |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 42.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| Seats | PTFE-Glass |
| TS max (°C) | 180 |
| TS min (°C) | -30 |
| Ball valve design | Wafer |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Stainless steel CF8M (1.4408) Wafer DN15 - 1/2'' | 2729020462012 | S1008119 |
€444.91
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Wafer DN20 - 3/4'' | 2729030462012 | S1008120 |
€456.94
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Wafer DN25 - 1'' | 2729040462012 | S1008121 |
€523.43
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Wafer DN32 - 1''1/4 | 2729050462012 | S1008122 |
€569.36
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Wafer DN40 - 1''1/2 | 2729060462012 | S1008123 |
€617.91
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Wafer DN50 - 2'' | 2729070462012 | S1008124 |
€657.06
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Wafer DN65 - 2''1/2 | 2729080462012 | S1008125 |
€886.36
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Wafer DN80 - 3'' | 2729090462012 | S1008126 |
€1,029.29
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Wafer DN100 - 4'' | 2729100462012 | S1008127 |
€1,307.96
(excl. btw)
|
add to cart |
