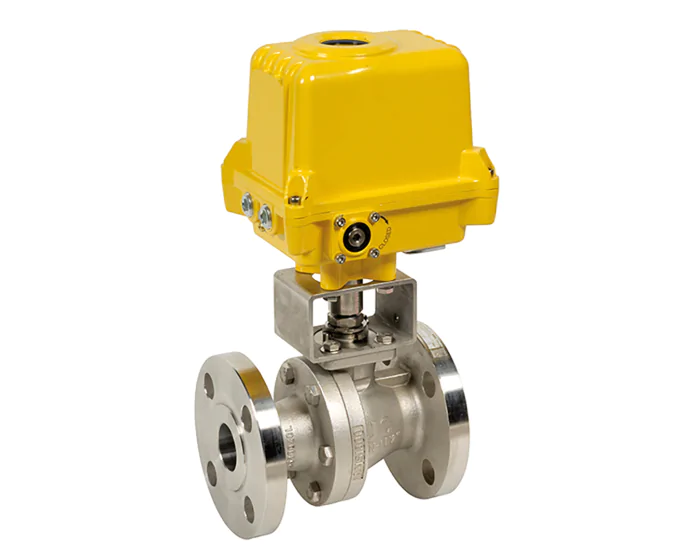

The JC 530IIT ball valve has a CF8M stainless steel body and ball, PTFE seats. It is actuated with an ATEX electric actuator. PS: 50 bar, TS: 230°C. Flanges ANSI300 RF.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| ATEX atmosphere | IIB |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 140.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex d |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 50 |
| Power (W) | 6 |
| Connections | Flanged #300 PN50 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA05-X |
| Electric actuator series | SA-X/NA-X ATEX series |
| Seats | PTFE |
| Operating time (s) | 17.0 |
| Surface temperature | T4 |
| Voltage | 230 V AC |
| TS max (°C) | 230 |
| TS min (°C) | -50 |
| Ball valve design | 2-piece body |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Range | JC Valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' SA05-X | 530IIT015023310 | S1004006 |
€960.01
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' SA05-X | 530IIT020023310 | S1004007 |
€1,006.06
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' SA05-X | 530IIT025023310 | S1004008 |
€1,019.21
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' NAX 09 | 530IIT050023330 | S1004010 |
€1,823.67
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' NAX 28 | 530IIT080023360 | S1004011 |
€2,919.26
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN100 - 4'' NAX 38 | 530IIT100023370 | S1004012 |
€4,007.80
(excl. btw)
|
add to cart |
