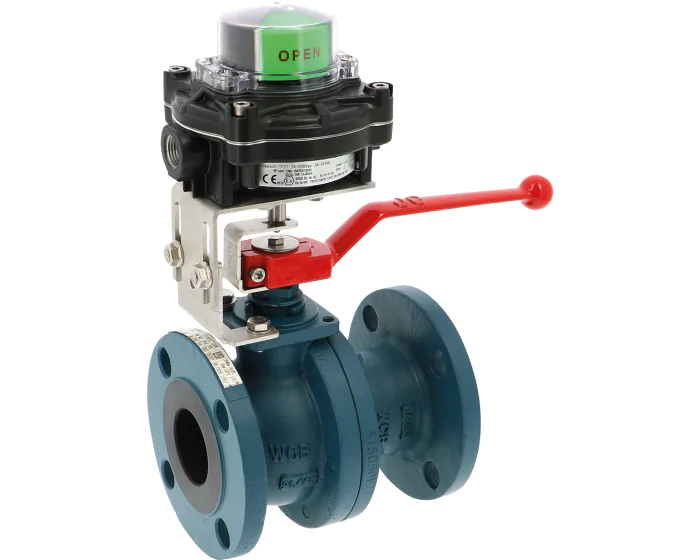

Full bore split-body valve. Designed with carbon steel body, stainless steel ball, PTFE seats and shaft tightness. ANSI 150 RF flanged attachments. PS: 20 bar. Limit switch box SK IP67. ATEX and IECEx certification.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| ATEX atmosphere | IIC |
| Switch type | dry SPDT |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 108.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex d |
| Number of ways | 2 |
| Packing gland | TFM 1600 |
| PS (bar) | 20 |
| Connections | Flanged #150 PN20 |
| Seats | PTFE |
| Surface temperature | TX |
| TS max (°C) | 230 |
| TS min (°C) | -29 |
| Ball valve design | 2-piece body |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | 2014/68/EU |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) 2-piece body DN15 - 1/2'' Flanged #150 PN20 | 515AIT0150477012 | S1008319 |
€561.00
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) 2-piece body DN20 - 3/4'' Flanged #150 PN20 | 515AIT0200477012 | S1008320 |
€571.20
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) 2-piece body DN25 - 1'' Flanged #150 PN20 | 515AIT0250477012 | S1008321 |
€606.90
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) 2-piece body DN40 - 1''1/2 Flanged #150 PN20 | 515AIT0400477012 | S1008322 |
€693.60
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) 2-piece body DN50 - 2'' Flanged #150 PN20 | 515AIT0500477012 | S1008323 |
€708.90
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) 2-piece body DN65 - 2''1/2 Flanged #150 PN20 | 515AIT0650477012 | S1008324 |
€969.00
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) 2-piece body DN80 - 3'' Flanged #150 PN20 | 515AIT0800477012 | S1008325 |
€1,018.99
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) 2-piece body DN100 - 4'' Flanged #150 PN20 | 515AIT1000477012 | S1008326 |
€1,336.20
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) 2-piece body DN150 - 6'' Flanged #150 PN20 | 515AIT1500477012 | S1008327 |
€2,551.01
(excl. btw)
|
add to cart |
