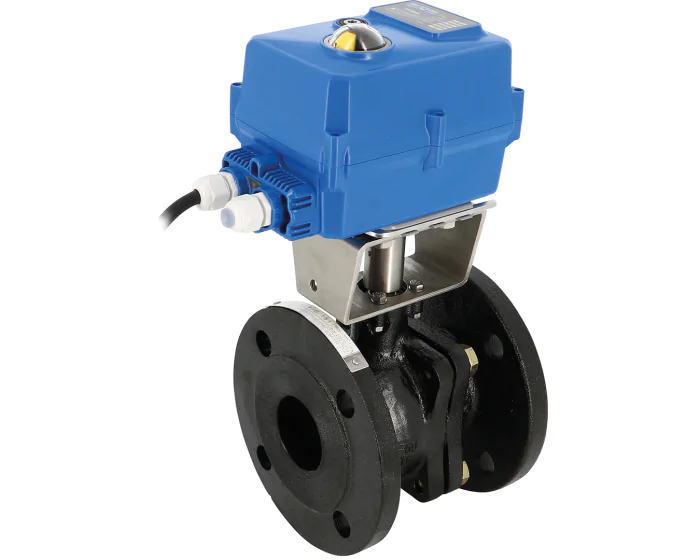

The cast iron 505 ball valve has a cast iron GL body, a stainless steel ball and PTFE seats. It is actuated with a TCR-N electric actuator. PS: 16 bar, TS: 200°C. FAF according to NF 29323. Flanged PN16 RF.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 136.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Body material | Cast iron |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-05N |
| Electric actuator series | TCR Series |
| Seats | PTFE |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 200 |
| TS min (°C) | -10 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category I |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Cast iron Full 2-piece body DN40 - 1''1/2 95-265 V AC/DC | 270206024310 | S1006251 |
€461.50
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN40 - 1''1/2 24 V AC/DC | 270206024311 | S1006252 |
€461.50
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN50 - 2'' 95-265 V AC/DC | 270207024610 | S1006253 |
€645.30
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN50 - 2'' 24 V AC/DC | 270207024611 | S1006254 |
€645.30
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN65 - 2''1/2 95-265 V AC/DC | 270208024610 | S1006255 |
€665.61
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN65 - 2''1/2 24 V AC/DC | 270208024611 | S1006256 |
€665.61
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN80 - 3'' 95-265 V AC/DC | 270209024610 | S1006257 |
€721.34
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN80 - 3'' 24 V AC/DC | 270209024611 | S1006258 |
€721.34
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN100 - 4'' 95-265 V AC/DC | 270210024700 | S1006259 |
€1,162.11
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN125 - 5'' 95-265 V AC/DC | 270211024720 | S1006260 |
€1,457.99
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN150 - 6'' 95-265 V AC/DC | 270212024720 | S1006261 |
€1,764.59
(excl. btw)
|
add to cart |
