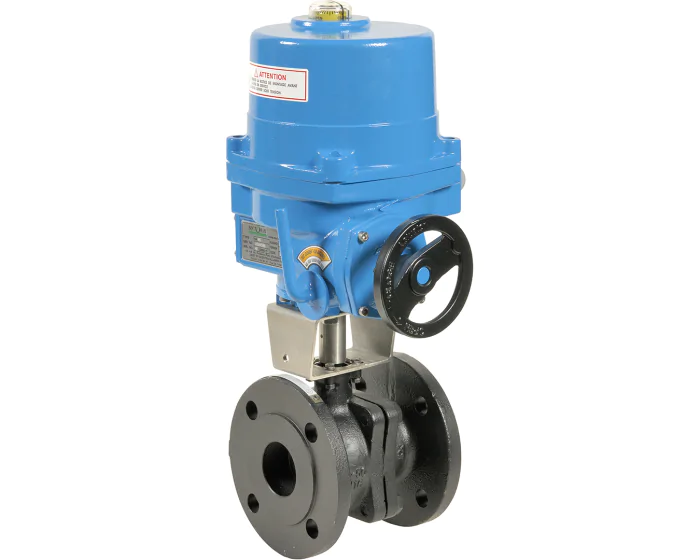

The cast iron 505 ball valve has a cast iron GL body, stainless steel ball and PTFE seats. It is actuated with an electric actuator NA.PS: 16 bar, TS: 200°C. FAF according to NF 29323. Flanged PN16 RF.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 304 |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | DN50 - 2'' |
| Duty service | S2 duty service - 70% |
| Face to Face (mm) | 142.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Cast iron |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | FKM |
| PS (bar) | 16 |
| Power (W) | 15 |
| Connections | Flanged PN10/16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NA 06 |
| Electric actuator series | SA/NA series |
| Seats | PTFE |
| Operating time (s) | 17 |
| Voltage | 230 V AC |
| TS max (°C) | 200 |
| TS min (°C) | -10 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category I |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Cast iron Full 2-piece body DN50 - 2'' 230 V AC | 270207023110 | S1006280 |
€1,045.69
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN65 - 2''1/2 230 V AC | 270208023120 | S1006281 |
€1,060.37
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN80 - 3'' 230 V AC | 270209023130 | S1006282 |
€1,306.46
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN100 - 4'' 230 V AC | 270210023150 | S1006283 |
€1,590.76
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN125 - 5'' 230 V AC | 270211023150 | S1006284 |
€1,729.43
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN150 - 6'' 230 V AC | 270212023160 | S1006285 |
€2,190.11
(excl. btw)
|
add to cart |
