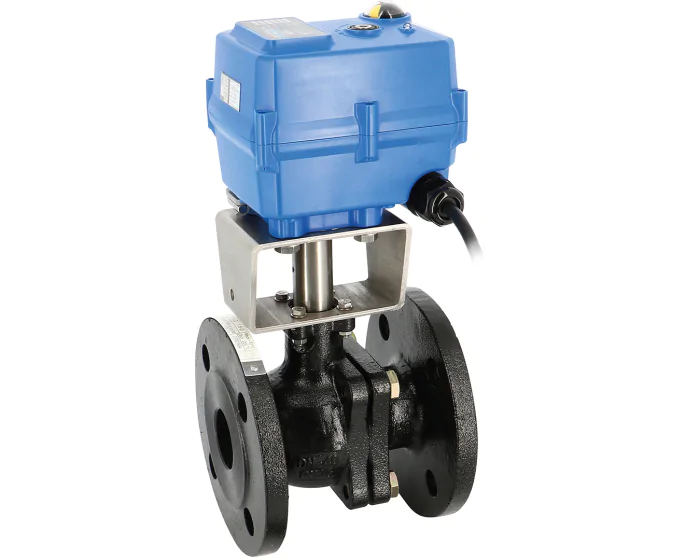

The cast iron 507 ball valve has a cast iron GL body, stainless steel ball and PTFE seats. It is actuated with a TCR-N electric actuator. PS: 16 bar, TS: 200°C. FAF to EN 558-1 series 27. Flanged PN16 RF.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 115.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Body material | Cast iron |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-02N |
| Electric actuator series | TCR Series |
| Seats | PTFE |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 200 |
| TS min (°C) | -10 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Cast iron Full 2-piece body DN15 - 1/2'' 95-265 V AC/DC | 270222024110 | S1006206 |
€403.10
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN15 - 1/2'' 24 V AC/DC | 270222024111 | S1006207 |
€403.10
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN20 - 3/4'' 95-265 V AC/DC | 270223024110 | S1006208 |
€419.01
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN20 - 3/4'' 24 V AC/DC | 270223024111 | S1006209 |
€419.01
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN25 - 1'' 95-265 V AC/DC | 270224024110 | S1006210 |
€429.61
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN25 - 1'' 24 V AC/DC | 270224024111 | S1006211 |
€429.61
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN32 - 1''1/4 95-265 V AC/DC | 270225024310 | S1006212 |
€498.59
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN32 - 1''1/4 24 V AC/DC | 270225024311 | S1006213 |
€498.59
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN40 - 1''1/2 95-265 V AC/DC | 270226024310 | S1006214 |
€509.19
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN40 - 1''1/2 24 V AC/DC | 270226024311 | S1006215 |
€509.19
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN50 - 2'' 95-265 V AC/DC | 270227024610 | S1006216 |
€655.53
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN50 - 2'' 24 V AC/DC | 270227024611 | S1006217 |
€655.53
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN65 - 2''1/2 95-265 V AC/DC | 270228024610 | S1006218 |
€684.76
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN65 - 2''1/2 24 V AC/DC | 270228024611 | S1006219 |
€684.76
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN80 - 3'' 95-265 V AC/DC | 270229024610 | S1006220 |
€724.66
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN80 - 3'' 24 V AC/DC | 270229024611 | S1006221 |
€724.66
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN100 - 4'' 95-265 V AC/DC | 270230024700 | S1006222 |
€1,202.23
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN125 - 5'' 95-265 V AC/DC | 270231024720 | S1006223 |
€1,469.59
(excl. btw)
|
add to cart |
