Name: Ductile iron gate valve 159 high temperature RF PN16 DIN F4 DN40
SKU: 10630
Price: 93.728571428571 EUR
Availability: InStock

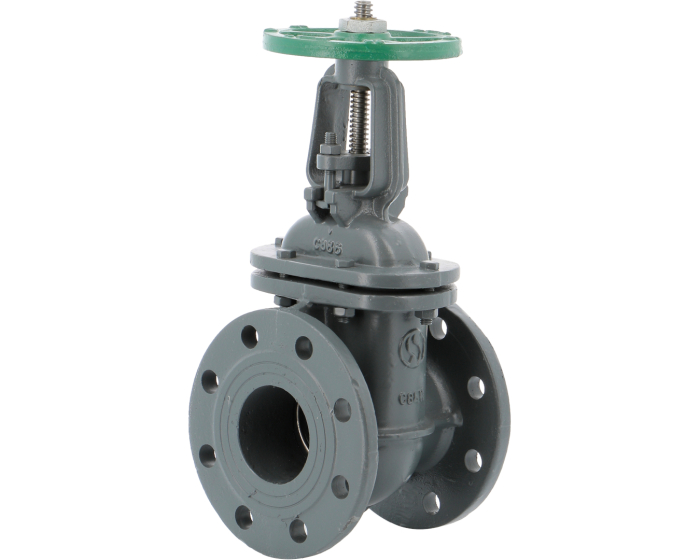

Ductile iron gate valve 159 high temperature RF PN16 DIN F4 DN40

Ductile iron gate valve 159 high temperature RF PN16 DIN F4 DN40

€93.73 (excl. btw)

The 159 series gate valve is made of ductile iron body, stainless steel seats, rising stem and non rising handwheel, flanges RF PN10/16, EN 558 series 14 (DIN3202 F4) face to face. It is suitable for water supply and heating networks.

In stock Subject prior to sales
Categories : Schuifafsluiters

Documenten:

Certificate of conformity	Download
Manual	Download
Manual FR	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

Reference 159 metal-seated gate valve Our reference 159 is a short-pattern metal-seated gate valve according to EN 558 series 14 (DIN 3202 F4). It is provided with RF PN16 flanges connections and comes in DN40 to DN300 sizes. This full-bore valve is fitted with a single solid wedge, a graphite packing, a rising stem, and a non-rising handwheel - allowing visual control of the opening and closing of the valve. The body and gate are made of EN GJS 500-7 ductile iron (GGG50) and the stem and seats are made of stainless steel. The construction in ductile iron confers higher strength and ductility compared to grey cast iron thanks to the nodular shape of the graphite. Therefore, it shows greater resistance to impacts. Moreover, it offers a lower thermal conductivity regarding GG25 construction. The stainless-steel inner parts of the 159 gate valve give a wider temperature tolerance ranging from -10 °C to +180°C. Rated for a maximum allowable pressure of 16 bar, our gate valve is suitable for water supply and water treatment systems, as well as for heating installations. According to the EN 12266-1 pressure test standard, this gate valve is a rate B, which means there is no absolute tightness, especially at low pressure.

Specification	Value
DN inches NPS	1''1/2
Option certificate 3.1	Yes
Bonnet material	Cast iron EN GJS-500-7
Construction standard	DIN 3352
CE risk category	III Module H
Paint coating thickness (µm)	90.00
DIN face-to-face standard	DIN 3202-1 F4
Face to face standard	EN 558 series 14. DIN 3202-1 F4
Tightness test standard	EN 12266-1. Rate B
Bonnet	Bolted
Opening device	Handwheel
Application	Air conditioning / Heating
Shaft/stem matérial	Stainless steel AISI 420
Torque (Nm)	55
DN	DN40 - 1''1/2
Face to Face (mm)	140.0
Sealing	Metal / Metal
Fluid	Hot water / Cold water / Drinking water
Gasket	Graphite
Body material	Ductile iron
Gate material	Cast iron EN GJS-500-7
Bore	Full
Packing gland	Yes
PS (bar)	16
Connections	Flanged PN10/16
RAL (Paint)	7011
Seats	Stainless steel AISI 304
TS max (°C)	180
TS min (°C)	-10
Warranty period	2 years
Type of stem	Rising
CE	Yes
Main product colour	Grey

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
10631	Flanged PN10/16 Ductile iron Full DN40 - 1''1/2	159040	S1010481	€93.73 (excl. btw)	add to cart
10632	Flanged PN10/16 Ductile iron Full DN50 - 2''	159050	S1010482	€99.96 (excl. btw)	add to cart
10633	Flanged PN10/16 Ductile iron Full DN65 - 2''1/2	159065	S1010483	€113.60 (excl. btw)	add to cart
10634	Flanged PN10/16 Ductile iron Full DN80 - 3''	159080	S1010484	€140.40 (excl. btw)	add to cart
10635	Flanged PN10/16 Ductile iron Full DN100 - 4''	159100	S1010485	€217.83 (excl. btw)	add to cart
10636	Flanged PN10/16 Ductile iron Full DN125 - 5''	159125	S1010486	€299.01 (excl. btw)	add to cart
10637	Flanged PN10/16 Ductile iron Full DN150 - 6''	159150	S1010487	€356.17 (excl. btw)	add to cart
10638	Flanged PN10/16 Ductile iron Full DN200 - 8''	159200	S1010488	€579.36 (excl. btw)	add to cart
10639	Flanged PN10/16 Ductile iron Full DN250 - 10''	159250	S1010489	€826.87 (excl. btw)	add to cart
10640	Flanged PN10/16 Ductile iron Full DN300 - 12''	159300	S1010490	€1,215.26 (excl. btw)	add to cart
