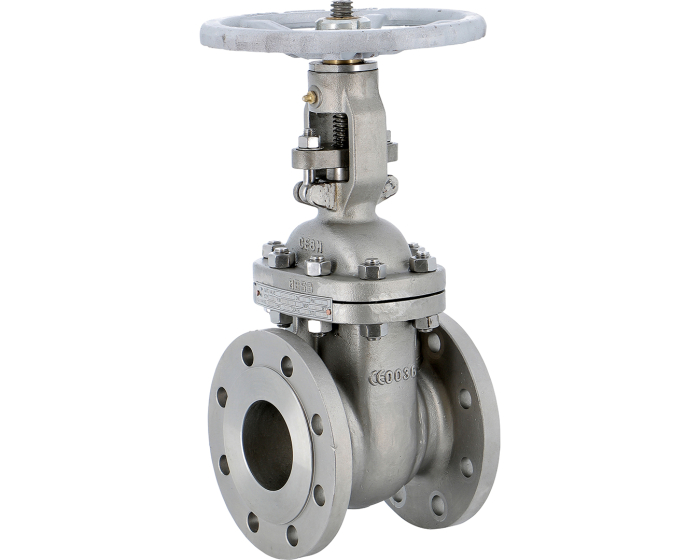

The series 148 gate valve is made of cast stainless steel, TRIM 10, flanged RF PN16, EN 558 series 14 face to face, graphite packing gland and stainless steel/graphite bonnet gasket, ATEX compatible. For steam, petrochemical, oil and gas.
| Specification | Value |
|---|---|
| DN inches NPS | 2'' |
| Option certificate 3.1 | Yes |
| Bonnet material | Stainless steel ASTM A351 CF8M |
| Construction standard | IN 1984 - EN 12516-1 |
| CE risk category | III Module H |
| DIN face-to-face standard | DIN 3202-1 F4 |
| Face to face standard | EN 558 series 14. DIN 3202-1 F4 |
| Tightness test standard | EN 12266-1. Rate D |
| Bonnet | Bolted |
| Opening device | Handwheel |
| Application | Industry |
| Shaft/stem matérial | Stainless steel ASTM A182 F316 |
| DN | DN50 - 2'' |
| Face to Face (mm) | 150.0 |
| Sealing | Metal / Metal |
| Fluid | Oxygen / Argon / Nitrogen |
| Gasket | Graphite |
| Kv (m³/h) | 265.0 |
| Body material | Stainless steel CF8M (1.4408) |
| Gate material | Stainless steel ASTM A351 CF8M |
| Bore | Full |
| Packing gland | Yes |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Seats | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 538 |
| TS min (°C) | -29 |
| Warranty period | 2 years |
| Type of stem | Rising |
| CE | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full DN50 - 2'' | 148050 | S1010522 |
€720.06
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full DN65 - 2''1/2 | 148065 | S1010523 |
€1,032.41
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full DN80 - 3'' | 148080 | S1010524 |
€1,204.31
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full DN100 - 4'' | 148100 | S1010525 |
€1,491.04
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full DN125 - 5'' | 148125 | S1010526 |
€2,025.61
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full DN150 - 6'' | 148150 | S1010527 |
€3,124.39
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full DN200 - 8'' | 148200 | S1010528 |
€4,766.13
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full DN250 - 10'' | 148250 | S1010529 |
€7,497.00
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full DN300 - 12'' | 148300 | S1010530 |
€10,404.00
(excl. btw)
|
add to cart |
