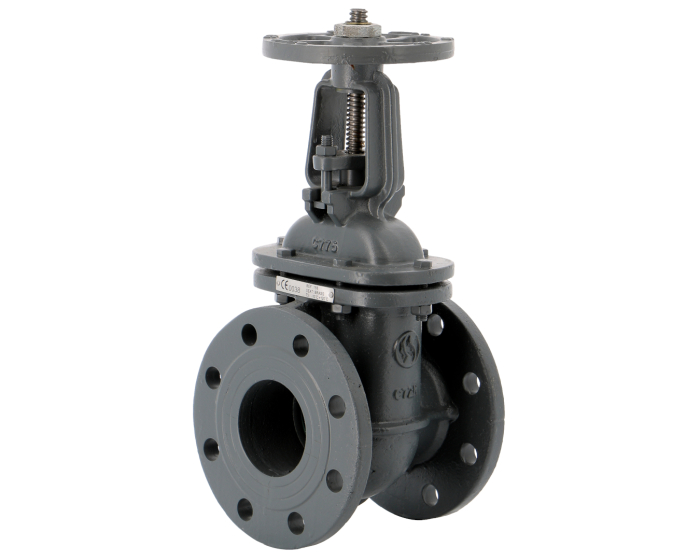

The 156 series gate valve is made of ductile iron body, brass seats, non-rising stem and handwheel, flanges RF PN16, EN 558 series 14 face to face. It is suitable for water supply, sewage, water treatment and heating networks.
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/2 |
| Option certificate 3.1 | Yes |
| Bonnet material | Cast iron EN GJS-500-7 |
| Construction standard | DIN 3352 |
| CE risk category | III Module H |
| Paint coating thickness (µm) | 90.00 |
| DIN face-to-face standard | DIN 3202-1 F4 |
| Face to face standard | EN 558 series 14. DIN 3202-1 F4 |
| Tightness test standard | EN 12266-1. Rate B |
| Bonnet | Bolted |
| Opening device | Handwheel |
| Application | Air conditioning / Heating |
| Shaft/stem matérial | Stainless steel AISI 420 |
| Torque (Nm) | 55 |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 140.0 |
| Sealing | Metal / Metal |
| Fluid | Hot water / Cold water / Drinking water |
| Gasket | Graphite |
| Body material | Ductile iron |
| Gate material | Cast iron EN GJS-500-7 |
| Bore | Full |
| Packing gland | Yes |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| RAL (Paint) | 7011 |
| Seats | Brass |
| TS max (°C) | 120 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Type of stem | Rising |
| CE | Yes |
| Main product colour | Grey |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Ductile iron Full DN40 - 1''1/2 | 156040SF | S1010469 |
€81.64
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Full DN50 - 2'' | 156050SF | S1010470 |
€87.04
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Full DN65 - 2''1/2 | 156065 | S1010471 |
€98.93
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Full DN80 - 3'' | 156080 | S1010472 |
€122.24
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Full DN100 - 4'' | 156100SF | S1010473 |
€189.67
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Full DN125 - 5'' | 156125SF | S1010474 |
€260.37
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Full DN150 - 6'' | 156150SF | S1010475 |
€306.00
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Full DN200 - 8'' | 156200 | S1010476 |
€504.34
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Full DN250 - 10'' | 156250SF | S1010477 |
€719.71
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Full DN300 - 12'' | 156300SF | S1010478 |
€1,064.83
(excl. btw)
|
add to cart |
