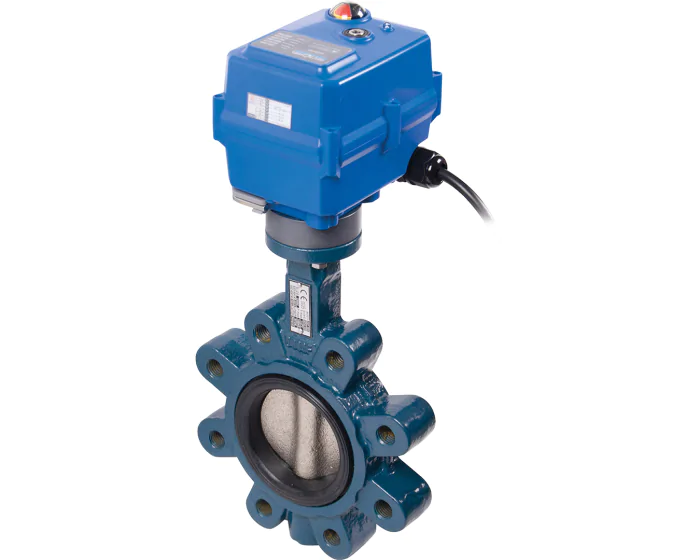

The 1135 LUG butterfly valve has a ductile iron GL body, a nickel-plated ductile iron disc and an EPDM seat. It is actuated with a TCR-N electric actuator.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN50 - 2'' |
| Face to Face (mm) | 43.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Indoor |
| Seat | EPDM |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Nickel-plated ductile iron |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-05N |
| Electric actuator series | TCR Series |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 110 |
| TS min (°C) | -15 |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| Warranty period | 1 year |
| CE | Risk category I |
| Range | HVAC |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 Ductile iron Concentric DN50 - 2'' 95-265 V AC/DC | 262504024310 | S1003763 |
€343.09
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN50 - 2'' 24 V AC/DC | 262504024311 | S1003764 |
€343.09
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN65 - 2''1/2 95-265 V AC/DC | 262505024310 | S1003765 |
€355.74
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN65 - 2''1/2 24 V AC/DC | 262505024311 | S1003766 |
€355.74
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN80 - 3'' 95-265 V AC/DC | 262506024310 | S1003767 |
€360.70
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN80 - 3'' 24 V AC/DC | 262506024311 | S1003768 |
€360.70
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN100 - 4'' 95-265 V AC/DC | 262507024610 | S1003769 |
€534.59
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN100 - 4'' 24 V AC/DC | 262507024611 | S1003770 |
€534.59
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN125 - 5'' 95-265 V AC/DC | 262508024610 | S1003771 |
€549.46
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN125 - 5'' 24 V AC/DC | 262508024611 | S1003772 |
€549.46
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN150 - 6'' 95-265 V AC/DC | 262509024700 | S1003773 |
€892.49
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN200 - 8'' 95-265 V AC/DC | 262510024720 | S1003774 |
€1,095.54
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN250 - 10'' 95-265 V AC/DC | 262511024720 | S1003775 |
€1,384.34
(excl. btw)
|
add to cart |
