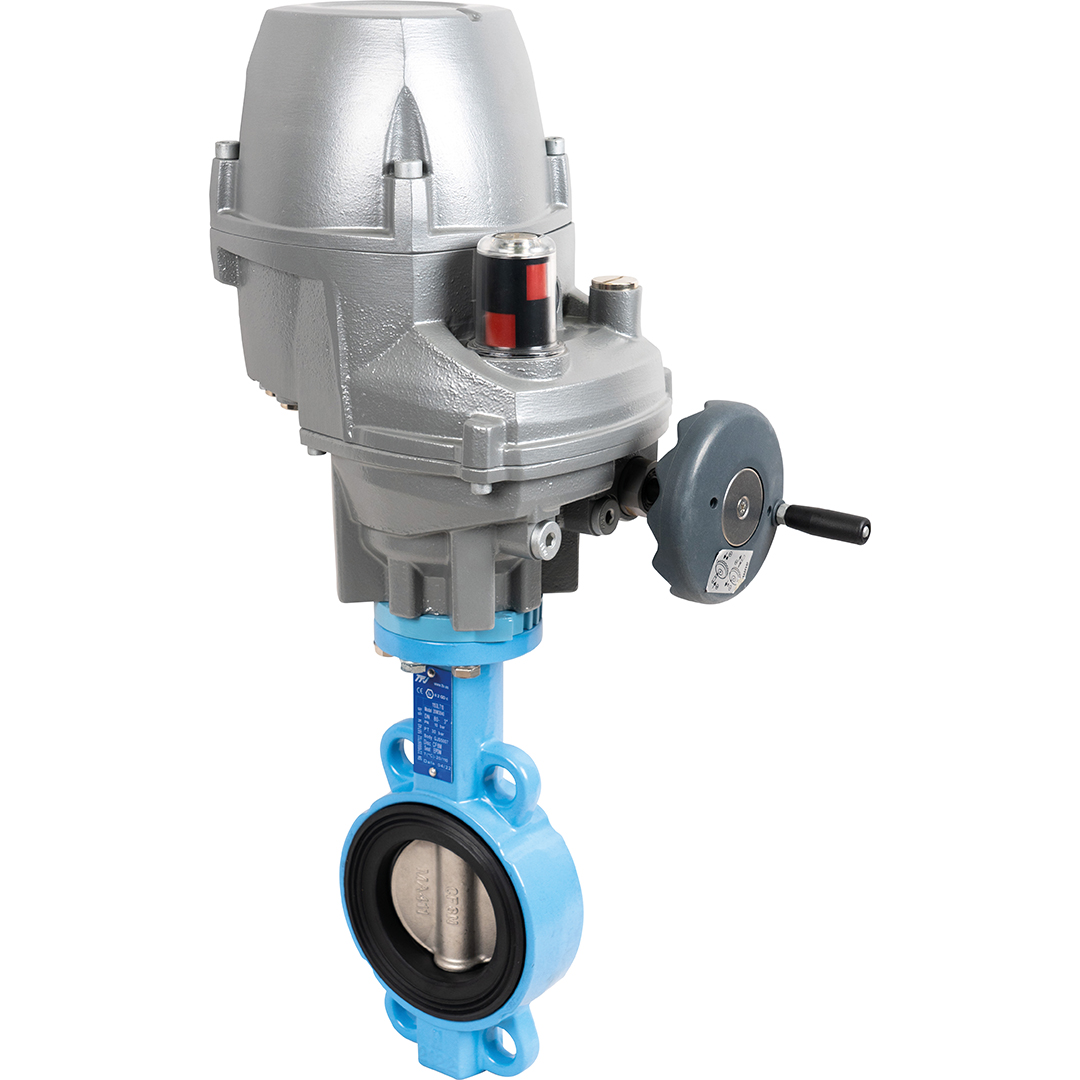

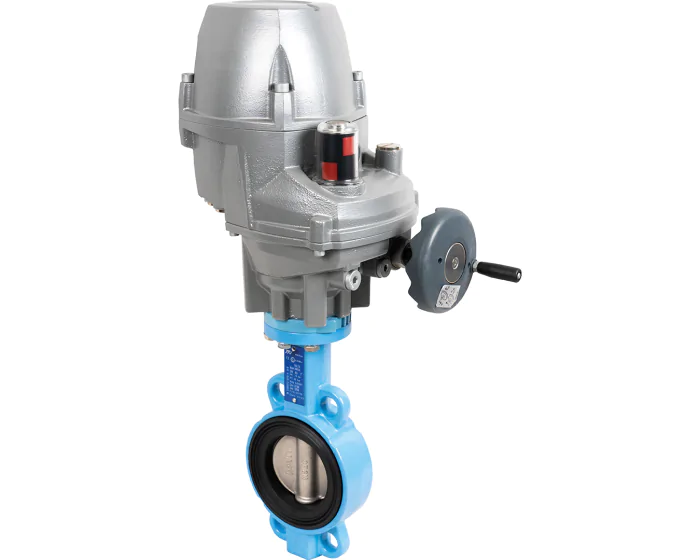

1153 LT10 disc valve with centring lugs. ACS. Ductile iron body. Installation between flanges PN 10/16 and ANSI 150. Actuation with PROFOX 230V electric actuator. Direct mounting from DN 32 to DN 150, with bracket and coupler above.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 420 |
| Manual override | By handwheel |
| Torque (Nm) | 80 |
| Declutchable | Yes |
| Starts/h (engine) | 1200 |
| DN | 32 - 40 |
| Duty service | Duty service S2 - 15 min / S4 - 50%. |
| Face to Face (mm) | 33.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Seat | EPDM |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 10 |
| Connections | Between flanges PN10/16 #150 |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | PF-Q |
| Electric actuator series | Profox series (AUMA) |
| Voltage | 230 V AC |
| TS max (°C) | 110 |
| TS min (°C) | -10 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Warranty period | 1 year |
| Range | TTV |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric 32 - 40 | 260363027110L10 | S1006264 |
€0.00
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' | 260364027110L10 | S1006265 |
€2,823.20
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 | 260365027110L10 | S1006266 |
€2,830.21
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' | 260366027110L10 | S1006267 |
€2,835.99
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' | 260367027110L10 | S1006268 |
€2,857.41
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' | 260368027110L10 | S1006269 |
€2,882.79
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' | 260369027110L10 | S1006270 |
€2,916.70
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' | 260370027120L10 | S1006271 |
€3,345.60
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10'' | 260371027130L10 | S1006272 |
€3,651.60
(excl. btw)
|
add to cart |
