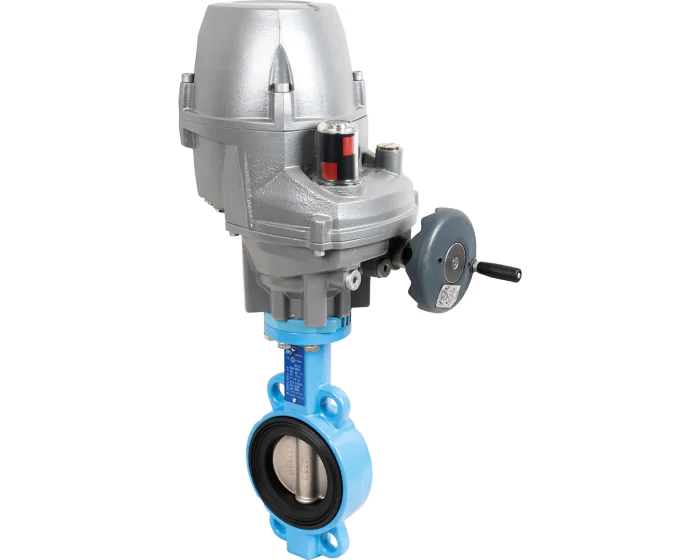

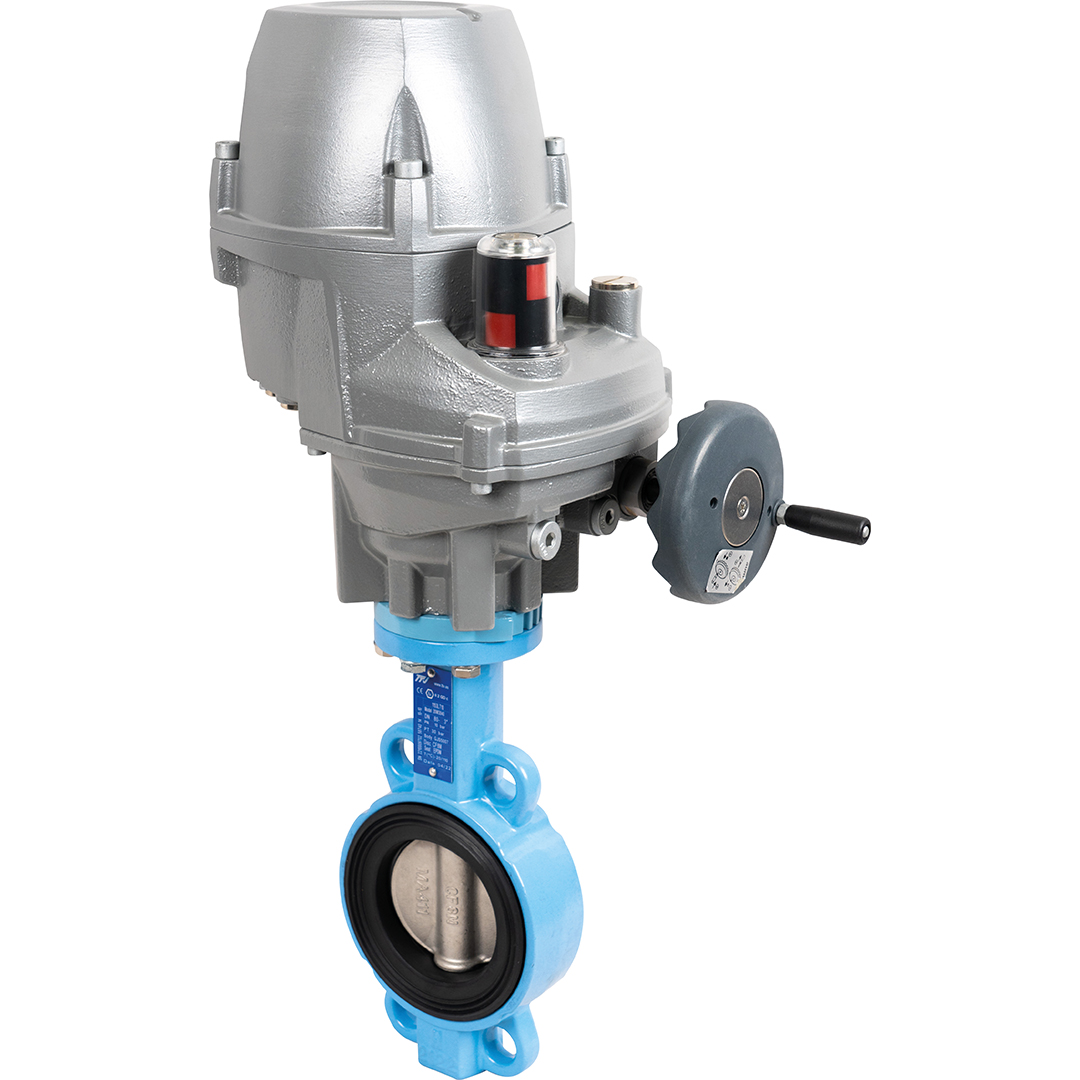

1150 LT10 disc valve with centring lugs. ACS. Ductile iron body. Installation between flanges PN 10/16 and ANSI 150. Actuation with PROFOX 230V electric actuator. Direct mounting from DN 32 to DN 150, with bracket and coupler above.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 420 |
| Manual override | By handwheel |
| Torque (Nm) | 80 |
| Declutchable | Yes |
| Starts/h (engine) | 1200 |
| DN | 32 - 40 |
| Duty service | Duty service S2 - 15 min / S4 - 50%. |
| Face to Face (mm) | 33.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Seat | EPDM |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 10 |
| Connections | Between flanges PN10/16 #150 |
| Function | On-off |
| Electric actuator type | PF-Q |
| Electric actuator series | Profox series (AUMA) |
| Voltage | 230 V AC |
| TS max (°C) | 110 |
| TS min (°C) | -10 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Warranty period | 1 year |
| Range | TTV |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric 32 - 40 | 260303027110L10 | S1006239 |
€2,808.74
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' | 260304027110L10 | S1006240 |
€2,808.74
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 | 260305027110L10 | S1006241 |
€2,821.36
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' | 260306027110L10 | S1006242 |
€2,831.46
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' | 260307027110L10 | S1006243 |
€2,843.99
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' | 260308027110L10 | S1006244 |
€2,869.01
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' | 260309027110L10 | S1006245 |
€2,889.90
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' | 260310027120L10 | S1006246 |
€3,192.79
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10'' | 260311027130L10 | S1006247 |
€3,406.91
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN300 - 12'' | 260312027140L10 | S1006248 |
€3,691.61
(excl. btw)
|
add to cart |
