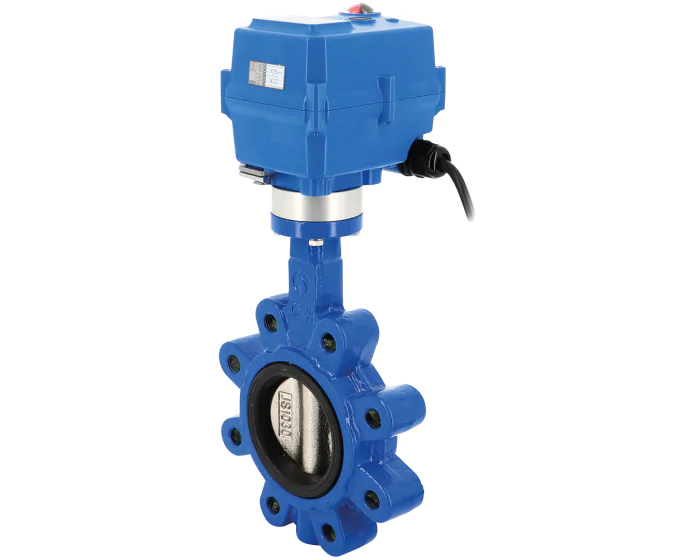

The 1133 LUG butterfly valve has a ductile iron GL body, 316 stainless steel disc and EPDM seat. It is actuated by a TCR-N electric actuator.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 33.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Indoor |
| Seat | EPDM |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-05N |
| Electric actuator series | TCR Series |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 110 |
| TS min (°C) | -15 |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| Warranty period | 1 year |
| CE | Risk category I |
| Range | HVAC |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 Ductile iron Concentric DN40 - 1''1/2 95-265 V AC/DC | 262603024310 | S1006176 |
€0.00
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN50 - 2'' 95-265 V AC/DC | 262604024310 | S1006177 |
€360.77
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN65 - 2''1/2 95-265 V AC/DC | 262605024310 | S1006178 |
€371.66
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN65 - 2''1/2 24 V AC/DC | 262605024311 | S1006179 |
€371.66
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN80 - 3'' 95-265 V AC/DC | 262606024310 | S1006180 |
€416.70
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN100 - 4'' 95-265 V AC/DC | 262607024610 | S1006181 |
€594.41
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN125 - 5'' 95-265 V AC/DC | 262608024610 | S1006182 |
€600.06
(excl. btw)
|
add to cart |
