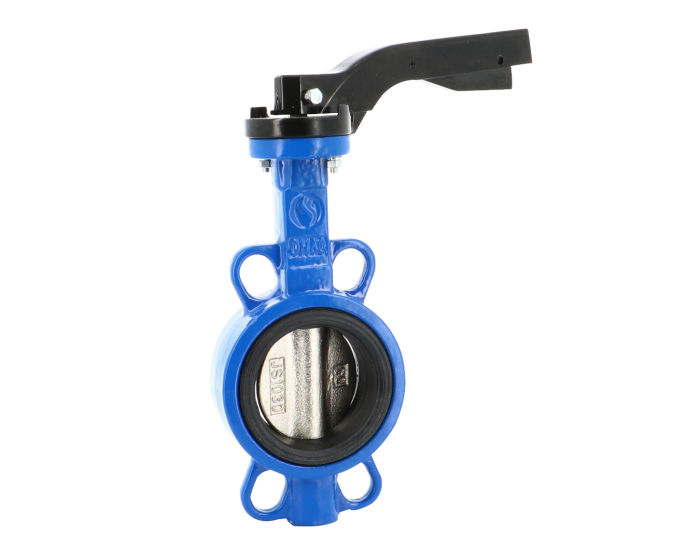

The 1125 wafer-style butterfly valve, with ductile iron body, ductile iron disc and EPDM seat, ISO 5211 plate, double PTFE tightness, for cold and hot water.
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/2 |
| Option certificate 3.1 | Yes |
| DN metric | 40/49 |
| Construction standard | API 609 |
| CE risk category | III Module H |
| Type of paint | Epoxy |
| Paint coating thickness (µm) | 80.00 |
| EN face-to-face standard | EN 558 Series 20 |
| DIN face-to-face standard | DIN 3202 Part.3 Series K1 |
| ISO face-to-face standard | ISO 5752 Series 20 |
| Tightness test standard | API 598 |
| Type of seat | Vulcanized |
| Notch plate | Yes |
| Opening device | Handle |
| Application | Air conditioning / Heating |
| Shaft/stem matérial | Stainless steel AISI 416 |
| Lockable | Yes |
| Square, star (mm) | Square 9 mm |
| Torque (Nm) | 12 |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 33.0 |
| Fluid | Cold water |
| Kv (m³/h) | 78.0 |
| Seat | EPDM |
| Body material | Ductile iron |
| Disc material | Cast iron EN GJS-400-15 |
| ISO pad 5211 | F05 |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| TS max (°C) | 110 |
| TS min (°C) | -15 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Through shaft | Yes |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Aluminium |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 Between flanges PN10/16 #150 Handle | 1125040 | S1008954 |
€27.47
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' Between flanges PN10/16 #150 Handle | 1125050 | S1008955 |
€27.47
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 Between flanges PN10/16 #150 Handle | 1125065 | S1008956 |
€30.59
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' Between flanges PN10/16 #150 Handle | 1125080 | S1008957 |
€34.39
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' Between flanges PN10/16 #150 Handle | 1125100 | S1008958 |
€43.29
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' Gears Between flanges PN10/16 #150 | 1125102 | S1008959 |
€82.40
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' Between flanges PN10/16 #150 Handle | 1125125 | S1008960 |
€58.73
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' Gears Between flanges PN10/16 #150 | 1125127 | S1008961 |
€106.87
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' Between flanges PN10/16 #150 Handle | 1125150 | S1008962 |
€68.49
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' Gears Between flanges PN10/16 #150 | 1125152 | S1008963 |
€118.46
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' Between flanges PN10/16 #150 Handle | 1125200 | S1008964 |
€108.93
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' Gears Between flanges PN10/16 #150 | 1125202 | S1008965 |
€159.91
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10'' Between flanges PN10/16 #150 Handle | 1125250 | S1008966 |
€180.77
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10'' Gears Between flanges PN10/16 #150 | 1125252 | S1008967 |
€242.47
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN300 - 12'' Between flanges PN10/16 #150 Handle | 1125300 | S1008968 |
€232.06
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN300 - 12'' Gears Between flanges PN10/16 #150 | 1125302 | S1008969 |
€303.09
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN350 - 14'' Gears Between flanges PN10/16 #150 | 1125350 | S1008970 |
€500.23
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN400 - 16'' Gears Between flanges PN10/16 #150 | 1125400 | S1008971 |
€724.57
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN450 - 18'' Gears Between flanges PN10/16 #150 | 1125450 | S1008972 |
€982.99
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN500 - 20'' Gears Between flanges PN10/16 #150 | 1125500 | S1008973 |
€1,678.79
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN600 - 24'' Gears Between flanges PN10/16 #150 | 1125600 | S1008974 |
€2,323.23
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Between flanges PN10 Gears DN700 - 28'' | 1125700 | S1008975 |
€5,957.53
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Between flanges PN10 Gears DN800 - 32'' | 1125800 | S1008976 |
€7,580.69
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Between flanges PN10 Gears DN900 - 36'' | 1125900 | S1008977 |
€10,145.79
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Between flanges PN10 Gears DN1000 - 40'' | 1125990 | S1008978 |
€13,735.97
