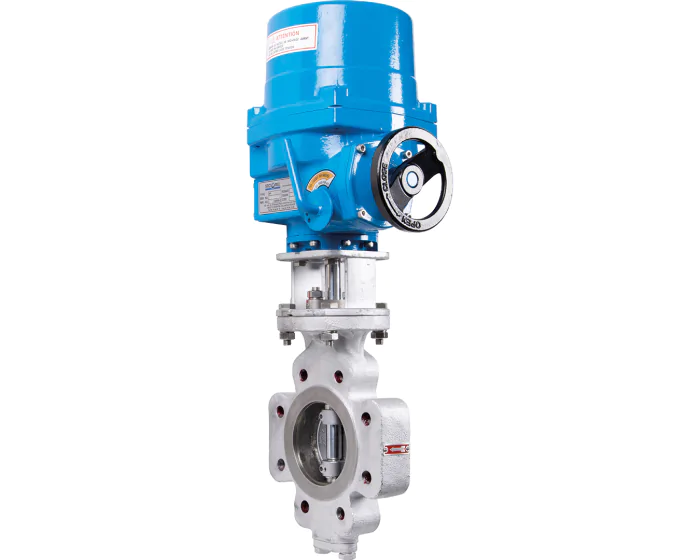

The 1117 double offset butterfly valve has a WCB steel body, a CF8M stainless steel disc and a PTFE/graphite seat. ATEX NAX electric actuation. PS: 16bar, TS: 210°C. Between flanges LUG PN16. Fire safety ISO 10497.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| ATEX atmosphere | IIB |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | DN50 - 2'' |
| Duty service | S2 duty service - 70% |
| Protection index (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex d |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Packing gland | Graphite |
| PS (bar) | 16 |
| Power (W) | 15 |
| Connections | Between flanges PN16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator series | SA-X/NA-X ATEX series |
| Seats | PTFE-Graphite |
| Operating time (s) | 17.0 |
| Surface temperature | T4 |
| Voltage | 230 V AC |
| TS max (°C) | 210 |
| TS min (°C) | -25 |
| Butterfly valve design | Double offset |
| Wafer/lug | Lug |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | High performance butterfly valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN50 - 2'' 230 V AC | 260850023320 | S1004318 |
€1,519.80
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN65 - 2''1/2 230 V AC | 260851023320 | S1004319 |
€1,550.40
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN80 - 3'' 230 V AC | 260852023320 | S1004320 |
€1,827.50
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN100 - 4'' 230 V AC | 260853023330 | S1004321 |
€1,924.26
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN125 - 5'' 230 V AC | 260854023340 | S1004322 |
€2,315.40
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN150 - 6'' 230 V AC | 260855023360 | S1004323 |
€2,672.40
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN250 - 10'' 230 V AC | 260857023370 | S1004324 |
€4,253.91
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN300 - 12'' 230 V AC | 260858023370 | S1004325 |
€4,702.64
(excl. btw)
|
add to cart |
