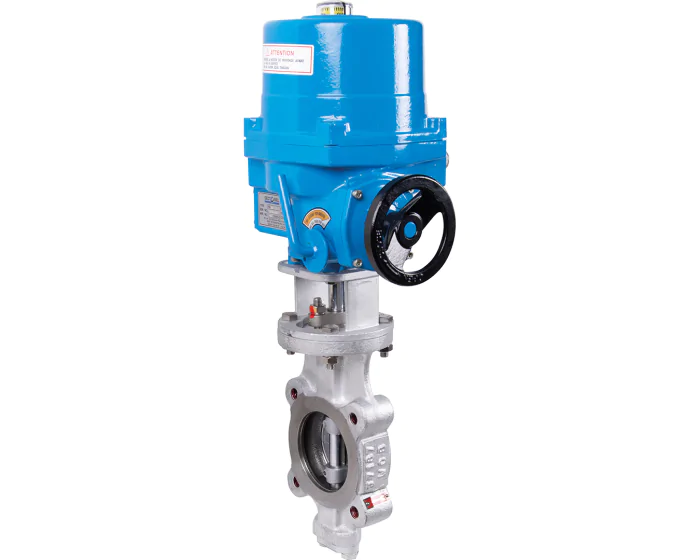

The 1117 double offset butterfly valve has a WCB steel body, a CF8M stainless steel disc and a PTFE/graphite seat. NA electric actuation. PS: 20 bar, TS: 210°C. Flanged to LUG ANSI 150, fire safe to ISO 10497.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | DN300 - 12'' |
| Duty service | S2 duty service - 70% |
| Face to Face (mm) | 78.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Packing gland | Graphite |
| PS (bar) | 20 |
| Power (W) | 60 |
| Connections | Between flanges #150 PN20 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Graphite |
| Operating time (s) | 24.0 |
| Voltage | 230 V AC |
| TS max (°C) | 210 |
| TS min (°C) | -25 |
| Butterfly valve design | Double offset |
| Wafer/lug | Lug |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | High performance butterfly valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset 50 | 260870023110 | S1004930 |
€1,313.70
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset 65 | 260871023110 | S1004931 |
€1,339.66
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset 80 | 260872023110 | S1004932 |
€1,501.61
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset 100 | 260873023120 | S1004933 |
€1,837.81
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset 125 | 260874023130 | S1004934 |
€1,973.50
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset 150 | 260875023150 | S1004935 |
€2,516.19
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset 200 | 260876023150 | S1004936 |
€3,342.23
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset 250 | 260877023160 | S1004937 |
€3,967.80
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset 300 | 260878023160 | S1004938 |
€4,938.14
(excl. btw)
|
add to cart |
