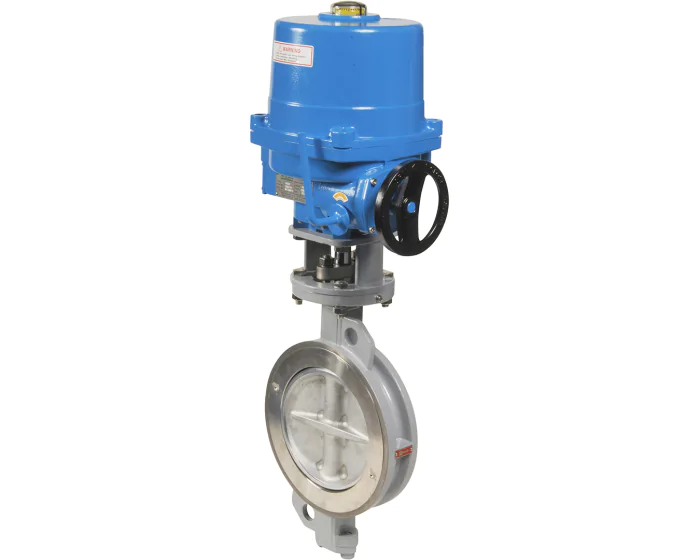

AN150 double offset disc valve, A216 WCB steel body, PS: 20 bar - TS: -25/+210°C. ATEX NAX electric actuator. Mounting between ANSI150 flanges.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 20 |
| ATEX atmosphere | IIB |
| Shaft/stem matérial | Stainless steel 630 (17-4 PH) |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | DN50 - 2'' |
| Duty service | S2 duty service - 70% |
| Face to Face (mm) | 43.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex d |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Packing gland | Graphite |
| PS (bar) | 20 |
| Power (W) | 15 |
| Connections | Between flanges #150 PN20 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator series | SA-X/NA-X ATEX series |
| Seats | PTFE-Graphite |
| Operating time (s) | 17.0 |
| Surface temperature | T4 |
| Voltage | 230 V AC |
| TS max (°C) | 210 |
| TS min (°C) | -25 |
| Butterfly valve design | Double offset |
| Wafer/lug | Wafer |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | High performance butterfly valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN50 - 2'' | 260910023320 | S1004733 |
€1,429.61
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN65 - 2''1/2 | 260911023320 | S1004734 |
€1,442.69
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN80 - 3'' | 260912023320 | S1004735 |
€1,540.20
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN100 - 4'' | 260913023330 | S1004736 |
€1,685.57
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN125 - 5'' | 260914023340 | S1004737 |
€1,982.41
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN150 - 6'' | 260915023360 | S1004738 |
€2,318.60
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN200 - 8'' | 260916023360 | S1004739 |
€3,110.07
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN250 - 10'' | 260917023370 | S1004740 |
€4,621.50
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN300 - 12'' | 260918023370 | S1004741 |
€4,688.74
(excl. btw)
|
add to cart |
