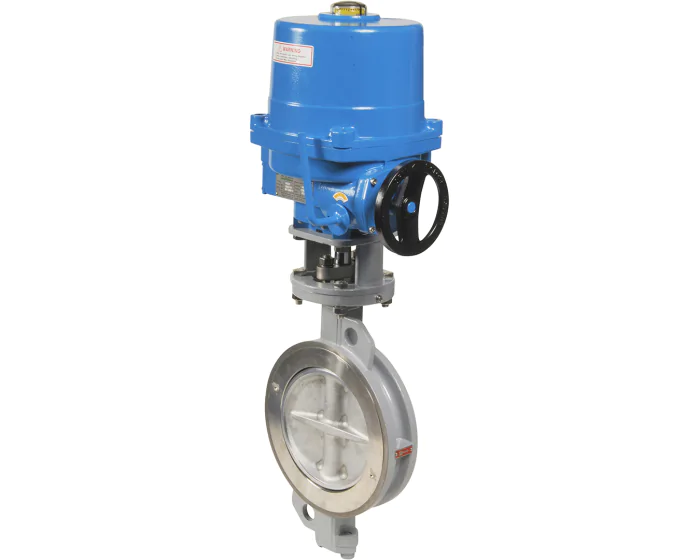

The 1110 double offset butterfly valve has an A216 WCB (1.0619) carbon steel body, a stainless steel disc and a PTFE/graphite seat. NA electric actuation. PS: 25 bar, TS: 210°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | DN50 - 2'' |
| Duty service | S2 duty service - 70% |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Packing gland | Graphite |
| PS (bar) | 25 |
| Power (W) | 15 |
| Connections | Between flanges PN25 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Graphite |
| Operating time (s) | 17.0 |
| Voltage | 230 V AC |
| TS max (°C) | 210 |
| TS min (°C) | -25 |
| Butterfly valve design | Double offset |
| Wafer/lug | Wafer |
| Warranty period | 1 year |
| Range | High performance butterfly valves |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset DN50 - 2'' | 260890023110 | S1003814 |
€1,236.59
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset DN65 - 2''1/2 | 260891023110 | S1003815 |
€1,238.29
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset DN80 - 3'' | 260892023110 | S1003816 |
€1,350.96
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset DN100 - 4'' | 260893023120 | S1003817 |
€1,440.53
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset DN125 - 5'' | 260894023130 | S1003818 |
€1,776.56
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset DN150 - 6'' | 260895023150 | S1003819 |
€2,018.11
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset DN200 - 8'' | 260896023150 | S1003820 |
€2,650.53
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset DN250 - 10'' | 260897023160 | S1003821 |
€3,307.39
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset DN300 - 12'' | 260898023160 | S1003822 |
€3,614.96
(excl. btw)
|
add to cart |
