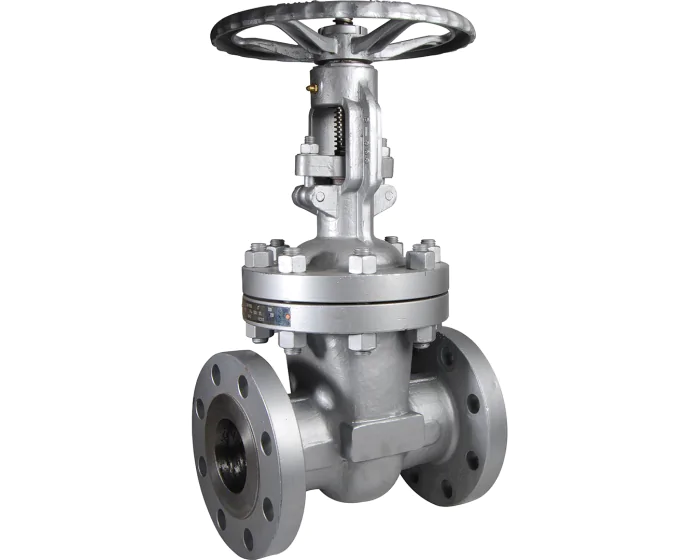

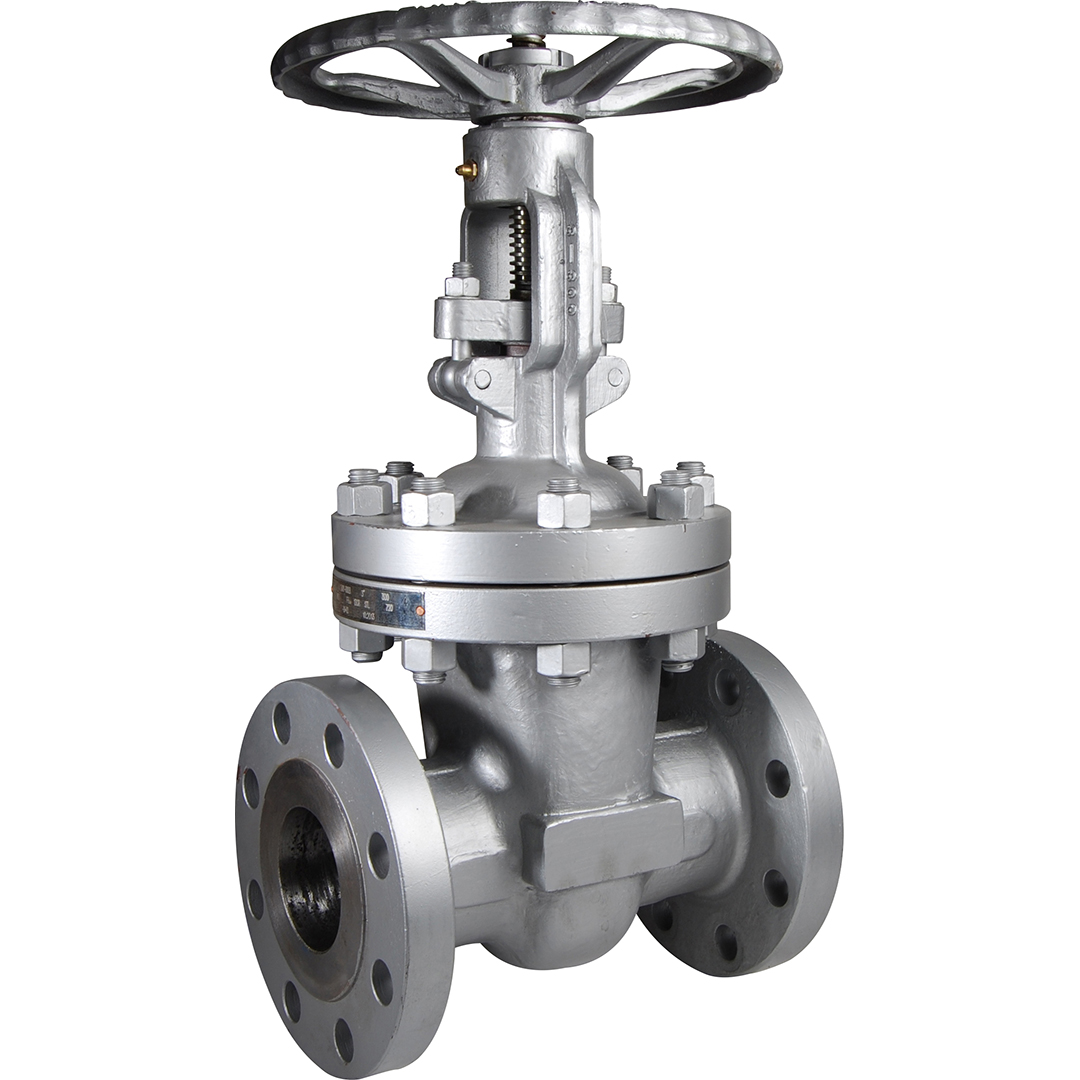

Cast steel A216WCB gate valve 149 RF ANSI300 2''
€320.23
(excl. btw)
The series 149 gate valve is made of cast carbon steel, TRIM 5, flanged Class 300 PN50, full bore, graphite packing gland and a stainless steel/graphite bonnet gasket, ATEX compatible. For steam, petrochemical, oil and gas industries.
Specification
Value
DN inches NPS
2''
Option certificate 3.1
Yes
Bonnet material
Carbon steel ASTM A216 WCB
Construction standard
API 600
CE risk category
III Module H
NACE MR0175
Yes
TRIM
TRIM 5
Paint coating thickness (µm)
60.00
EN face-to-face standard
EN 558 Series 4
ASME face-to-face standard
ASME B16.10
Face to face standard
EN 558 Series 4. ASME B16.10
Number of opening/closing turns
15
Tightness test standard
API 598
Bonnet
Bolted
Closure member material
Stellite Gr6 coated carbon steel ASTM A216 WCB
Opening device
Handwheel
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel ASTM A182 F6a
ATEX compatible
Yes
Torque (Nm)
50
DN
DN50 - 2''
Face to Face (mm)
216.0
Sealing
Metal / Metal
Fluid
Oxygen / Argon / Nitrogen
Gasket
Stainless steel AISI 304 + Graphite
Kv (m³/h)
265.0
Body material
Carbon steel A216 WCB (1.0619)
Gate material
Carbon steel ASTM A216 WCB+ Stellite Gr.6
Bore
Full
Packing gland
Yes
PS (bar)
50
Connections
Flanged #300 PN50
RAL (Paint)
7001
Seats
Carbon steel ASTM A105. stellite Gr.6 coated
TS max (°C)
425
TS min (°C)
-29
ATEX zone
1 & 21. 2 & 22
Warranty period
2 years
Type of stem
Rising
CE
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
7528
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full DN50 - 2''
149050
S1007643
€320.23
(excl. btw)
add to cart
7529
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full DN80 - 3''
149080
S1007644
€601.96
(excl. btw)
add to cart
7530
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full DN100 - 4''
149100
S1007645
€741.13
(excl. btw)
add to cart
7531
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full DN150 - 6''
149150
S1007646
€1,292.04
(excl. btw)
add to cart
7532
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full DN200 - 8''
149200
S1007647
€2,071.31
(excl. btw)
add to cart
7533
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full DN250 - 10''
149250
S1007648
€2,835.60
(excl. btw)
add to cart
7534
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full DN300 - 12''
149300
S1007649
€4,406.40
(excl. btw)
add to cart
