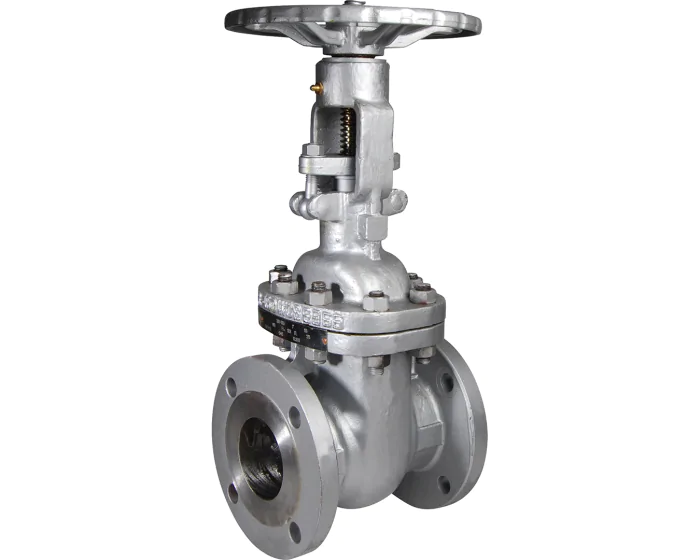

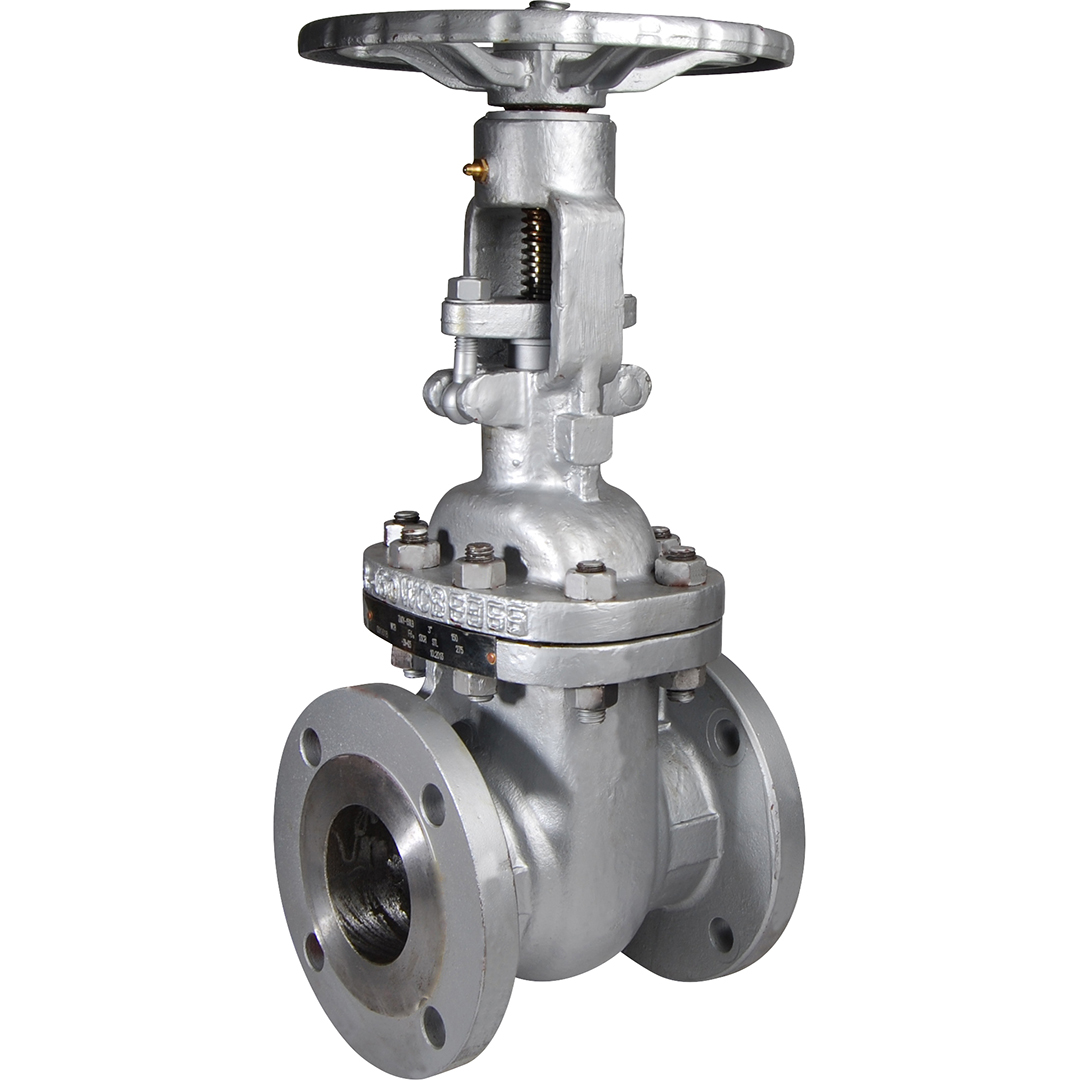

Cast steel A216WCB gate valve 145 RF ANSI150 2''
€319.59
(excl. btw)
The series 145 gate valve is made of cast carbon steel, TRIM 5, flanged Class 150 PN20, full bore, graphite packing gland and stainless steel/graphite bonnet gasket, ATEX compatible. For steam, petrochemical, oil and gas industries.
Specification
Value
DN inches NPS
2''
Option certificate 3.1
Yes
Bonnet material
Carbon steel ASTM A216 WCB
Construction standard
API 600
CE risk category
III Module H
NACE MR0175
Yes
TRIM
TRIM 5
Type of paint
Epoxy
Paint coating thickness (µm)
60.00
EN face-to-face standard
EN 558 Series 3
ASME face-to-face standard
ASME B16.10
Face to face standard
EN 558 Series 3. ASME B16.10
Number of opening/closing turns
15
Tightness test standard
API 598
Bonnet
Bolted
Closure member material
Carbon steel ASTM A216 WCB+ Stellite Gr.6 (doublon avec le précédent)
Opening device
Handwheel
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel ASTM A182 F6a
ATEX compatible
Yes
Torque (Nm)
68
DN
DN50 - 2''
Face to Face (mm)
178.0
Sealing
Metal / Metal
Fluid
Oxygen / Argon / Nitrogen
Gasket
Stainless steel AISI 304 + Graphite
Kv (m³/h)
265.0
Body material
Carbon steel A216 WCB (1.0619)
Gate material
Carbon steel ASTM A216 WCB+ Stellite Gr.6
Bore
Full
Packing gland
Yes
PS (bar)
20
Connections
Flanged #150 PN20
RAL (Paint)
7001
Seats
Carbon steel ASTM A105. stellite Gr.6 coated
TS max (°C)
425
TS min (°C)
-29
ATEX zone
1 & 21. 2 & 22
Warranty period
2 years
Type of stem
Rising
CE
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
7516
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full DN50 - 2''
145050
S1007632
€319.59
(excl. btw)
add to cart
7517
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full DN80 - 3''
145080
S1007633
€456.39
(excl. btw)
add to cart
7518
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full DN100 - 4''
145100
S1007634
€585.24
(excl. btw)
add to cart
7519
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full DN150 - 6''
145150
S1007635
€935.96
(excl. btw)
add to cart
7520
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full DN200 - 8''
145200
S1007636
€1,526.70
(excl. btw)
add to cart
7521
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full DN250 - 10''
145250
S1007637
€2,097.10
(excl. btw)
add to cart
7522
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full DN300 - 12''
145300
S1007638
€2,621.37
(excl. btw)
add to cart
7523
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full DN350 - 14''
145350
S1007639
€4,409.31
(excl. btw)
add to cart
7524
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full DN400 - 16''
145400
S1007640
€5,169.71
(excl. btw)
add to cart
7525
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full DN450 - 18''
145450
S1007641
€6,145.50
(excl. btw)
add to cart
7526
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full DN500 - 20''
145500
S1007642
€8,415.00
(excl. btw)
add to cart
