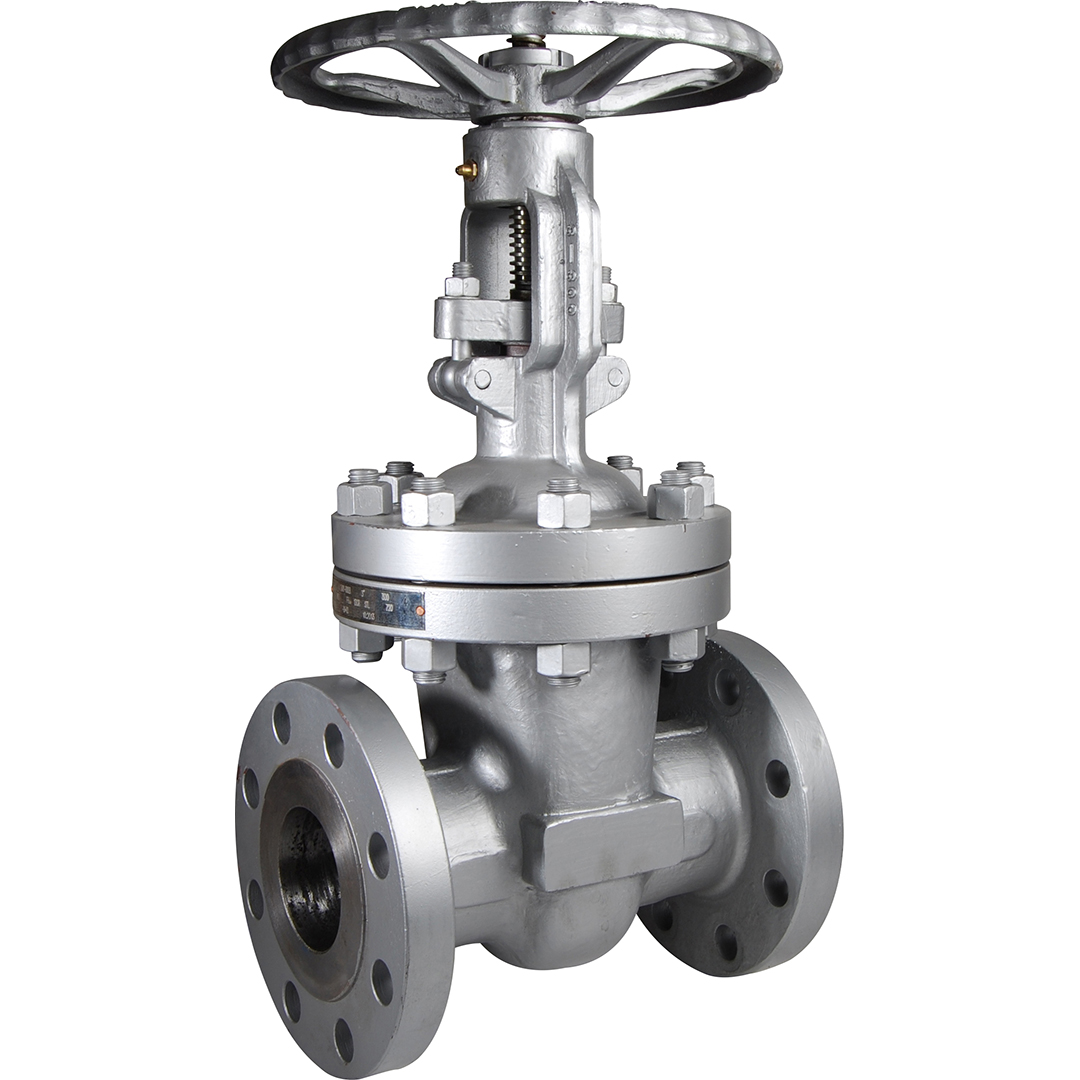

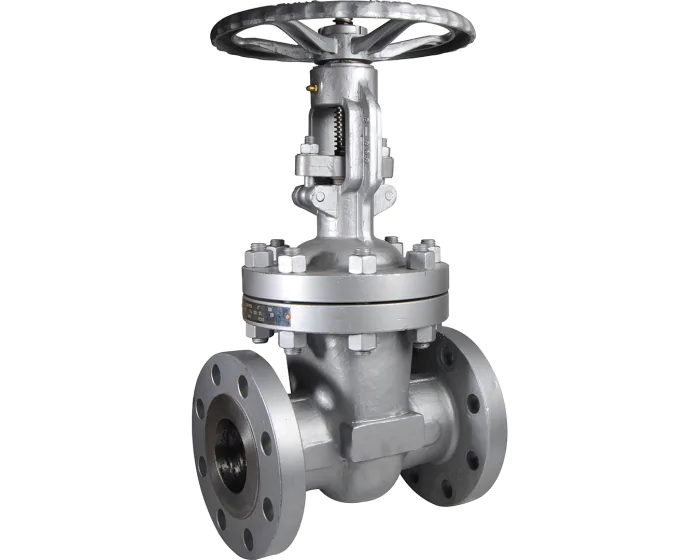

Cast steel A216WCB gate valve 144 RF ANSI300 2''
€272.43
(excl. btw)
The series 144 gate valve is made of cast carbon steel, TRIM 8, flanged Class 300 PN50, full bore, graphite packing gland and stainless steel/graphite bonnet gasket, ATEX compatible. For steam, petrochemical, oil and gas industries.
Specification
Value
DN inches NPS
2''
Option certificate 3.1
Yes
Bonnet material
Carbon steel ASTM A216 WCB
Construction standard
API 600
CE risk category
III Module H
NACE MR0175
Yes
TRIM
TRIM 8
Type of paint
Epoxy
Paint coating thickness (µm)
60.00
EN face-to-face standard
EN 558 Series 4
ASME face-to-face standard
ASME B16.10
Face to face standard
EN 558 Series 4. ASME B16.10
Number of opening/closing turns
15
Tightness test standard
API 598
Bonnet
Bolted
Closure member material
Stainless steel 13Cr coated carbon steel ASTM A216 WCB
Opening device
Handwheel
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel ASTM A182 F6a
ATEX compatible
Yes
Torque (Nm)
50
DN
DN50 - 2''
Face to Face (mm)
216.0
Sealing
Metal / Metal
Fluid
Oxygen / Argon / Nitrogen
Gasket
Stainless steel AISI 304 + Graphite
Kv (m³/h)
265.0
Body material
Carbon steel A216 WCB (1.0619)
Gate material
Carbon steel ASTM A216 WCB. stainless steel 13Cr coating
Bore
Full
Packing gland
Yes
PS (bar)
50
Connections
Flanged #300 PN50
RAL (Paint)
7001
Seats
Carbon steel ASTM A105. stellite Gr.6 coated
TS max (°C)
425
TS min (°C)
-29
ATEX zone
1 & 21. 2 & 22
Warranty period
2 years
Type of stem
Rising
CE
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
7478
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full DN50 - 2''
144050
S1007598
€272.43
(excl. btw)
add to cart
7479
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full DN80 - 3''
144080
S1007599
€457.99
(excl. btw)
add to cart
7480
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full DN100 - 4''
144100
S1007600
€644.66
(excl. btw)
add to cart
7481
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full DN150 - 6''
144150
S1007601
€1,167.71
(excl. btw)
add to cart
7482
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full DN200 - 8''
144200
S1007602
€2,058.24
(excl. btw)
add to cart
7483
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full DN250 - 10''
144250
S1007603
€2,801.74
(excl. btw)
add to cart
7484
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full DN300 - 12''
144300
S1007604
€4,423.00
(excl. btw)
add to cart
7485
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full DN350 - 14''
144350
S1007605
€5,593.83
(excl. btw)
add to cart
7486
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full DN400 - 16''
144400
S1007606
€7,803.00
(excl. btw)
add to cart
