Name: Cast iron gate valve 150 flanged RF PN10 DN40
SKU: 10583
Price: 58.971428571429 EUR
Availability: InStock

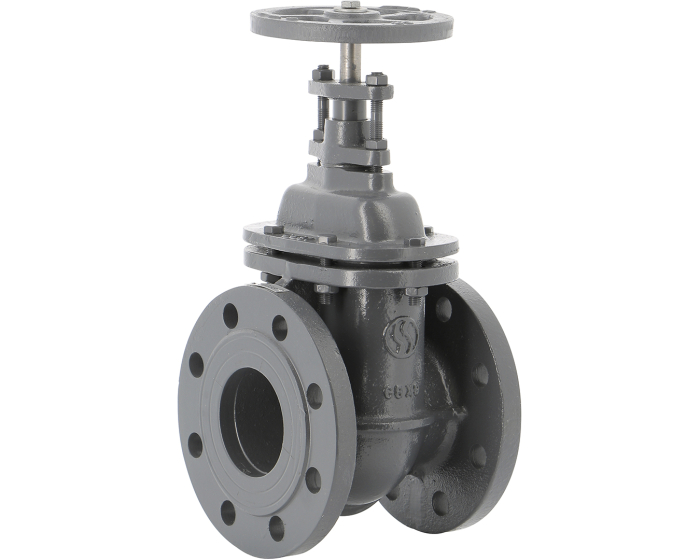

Cast iron gate valve 150 flanged RF PN10 DN40

Cast iron gate valve 150 flanged RF PN10 DN40

€58.97 (excl. btw)

The 150 series gate valve is made of cast iron body, brass seats, non-rising stem and handwheel, flanges RF PN10, EN 558 series 14 face to face. It is suitable for water supply, sewage, water treatment and heating networks.

In stock Subject prior to sales
Categories : Schuifafsluiters

Documenten:

Certificate of conformity	Download
Manual	Download
Manual FR	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

Reference 150 metal-seated gate valve Our reference 150 is a metal-seated gate valve with EN-GJL 250 (GG25) cast iron body and gate. It is provided with RF PN10 flanged connections. This gate valve also has a short face-to-face length according to EN 558 series 14 (DIN 3202 F4), and the pressure tests according to EN 12266-1 give it a rate B, that is to say there is no absolute tightness, especially at low pressure. This is a full-bore gate valve equipped with a brass seat, a single solid wedge, a graphite packing, a rotating non-rising inside screw stem (ideal for small spaces), and a handwheel. Mainly used in applications related to water supply, sewage and heating systems, this gate valve allows a maximum pressure of 10 bar and a range of temperatures comprised between -10 °C and +90 °C. Available out of the shelf from DN40 up to DN300.

Specification	Value
DN inches NPS	1''1/2
Option certificate 3.1	Yes
Bonnet material	Cast iron EN GJL-250
Construction standard	DIN 3352
CE risk category	III Module H
Paint coating thickness (µm)	90.00
DIN face-to-face standard	DIN 3202-1 F4
Face to face standard	EN 558 series 14. DIN 3202-1 F4
Tightness test standard	EN 12266-1. Rate B
Bonnet	Bolted
Opening device	Handwheel
Application	Air conditioning / Heating
Shaft/stem matérial	Stainless steel AISI 420
DN	DN40 - 1''1/2
Face to Face (mm)	140.0
Sealing	Metal / Metal
Fluid	Hot water / Cold water / Drinking water
Gasket	Graphite
Body material	Cast iron
Gate material	Cast iron EN GJL-250
Bore	Full
Packing gland	Yes
PS (bar)	10
Connections	Flanged PN10/16
RAL (Paint)	7011
Seats	Brass
TS max (°C)	90
TS min (°C)	-10
Warranty period	2 years
Type of stem	Non-rising
CE	Yes
Main product colour	Grey

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
10584	Flanged PN10/16 Cast iron Full DN40 - 1''1/2	150040	S1010439	€58.97 (excl. btw)	add to cart
10585	Flanged PN10/16 Cast iron Full DN50 - 2''	150050	S1010440	€69.31 (excl. btw)	add to cart
10586	Flanged PN10/16 Cast iron Full DN65 - 2''1/2	150065	S1010441	€80.06 (excl. btw)	add to cart
10587	Flanged PN10/16 Cast iron Full DN80 - 3''	150080	S1010442	€96.13 (excl. btw)	add to cart
10588	Flanged PN10/16 Cast iron Full DN100 - 4''	150100	S1010443	€137.89 (excl. btw)	add to cart
10589	Flanged PN10/16 Cast iron Full DN125 - 5''	150125	S1010444	€191.33 (excl. btw)	add to cart
10590	Flanged PN10/16 Cast iron Full DN150 - 6''	150150	S1010445	€247.06 (excl. btw)	add to cart
10591	Flanged PN10/16 Cast iron Full DN200 - 8''	150200	S1010446	€429.84 (excl. btw)	add to cart
10592	Flanged PN10/16 Cast iron Full DN250 - 10''	150250	S1010447	€585.87 (excl. btw)	add to cart
10593	Flanged PN10/16 Cast iron Full DN300 - 12''	150300	S1010448	€859.09 (excl. btw)	add to cart
