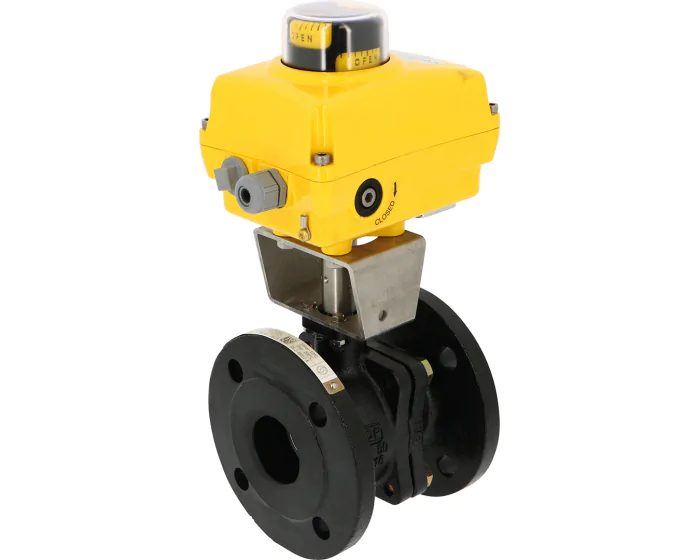

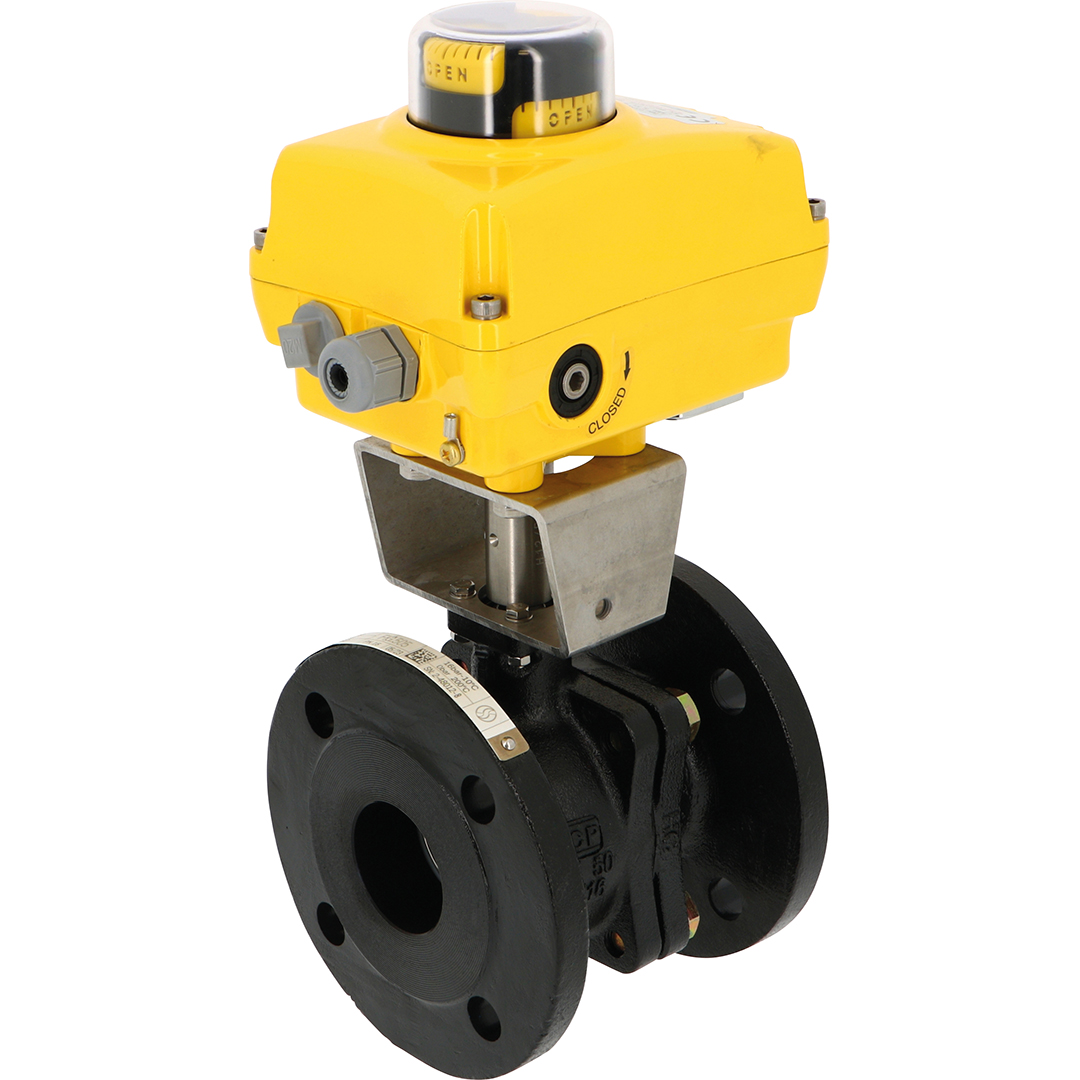

The cast iron 505 ball valve has a cast iron GL body, stainless steel ball and PTFE seats. It is actuated with an electric actuator SA. It is intended for the automatic opening/closing of low pressure, uncharged general fluid lines.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 304 |
| Manual override | By key |
| Declutchable | No |
| DN | DN40 - 1''1/2 |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 136.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Cast iron |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | FKM |
| PS (bar) | 16 |
| Power (W) | 6 |
| Connections | Flanged PN10/16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 05 |
| Electric actuator series | SA/NA series |
| Seats | PTFE |
| Operating time (s) | 17 |
| Voltage | 230 V AC |
| TS max (°C) | 200 |
| TS min (°C) | -10 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category I |
| Fire safe | No |
| Product | Reference |
| Product Cast iron flanged ball valve NF 505 DN40 + SA05 230V AC | Reference 270206023010 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Cast iron Full 2-piece body DN40 - 1''1/2 | 270206023010 | S1006296 |
€769.16
(excl. btw)
|
add to cart |
