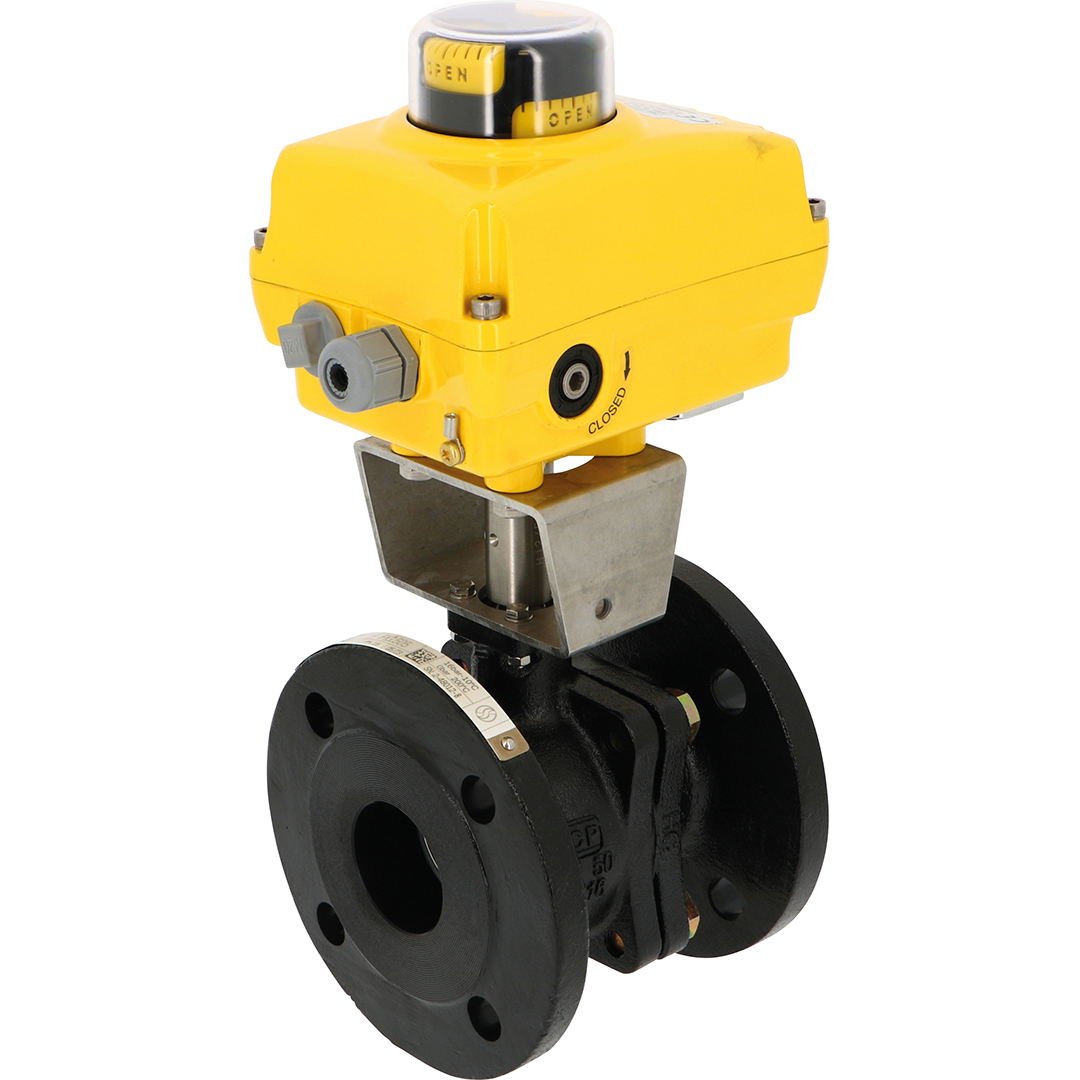

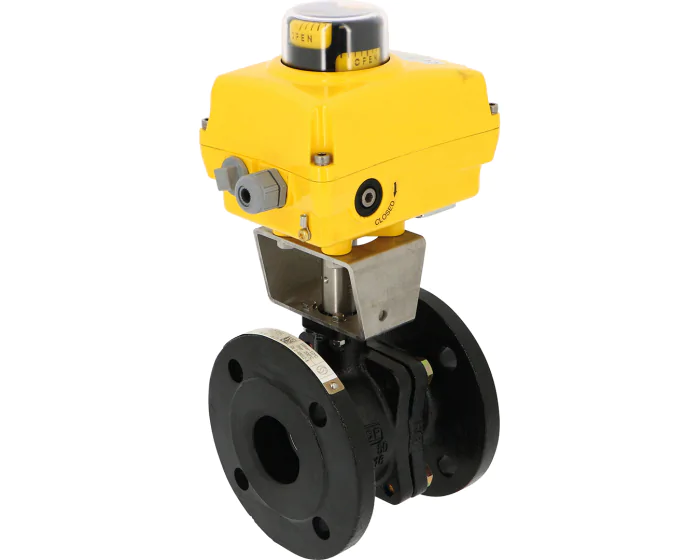

The cast iron 507 ball valve has a cast iron GL body, stainless steel ball and PTFE seats. It is actuated with an electric actuator SA. PS: 16 bar, TS: 200°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 304 |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 115.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Cast iron |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | FKM |
| PS (bar) | 16 |
| Power (W) | 6 |
| Connections | Flanged PN10/16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 05 |
| Electric actuator series | SA/NA series |
| Seats | PTFE |
| Operating time (s) | 17 |
| Voltage | 230 V AC |
| TS max (°C) | 200 |
| TS min (°C) | -10 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Cast iron Full 2-piece body DN15 - 1/2'' | 270222023010 | S1006226 |
€603.86
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN20 - 3/4'' | 270223023010 | S1006227 |
€608.79
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN25 - 1'' | 270224023010 | S1006228 |
€622.60
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN32 - 1''1/4 | 270225023010 | S1006229 |
€644.01
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN40 - 1''1/2 | 270226023010 | S1006230 |
€608.79
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN50 - 2'' | 270227023069 | S1006231 |
€608.94
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN65 - 2''1/2 | 270228023069 | S1006232 |
€614.04
(excl. btw)
|
add to cart |
