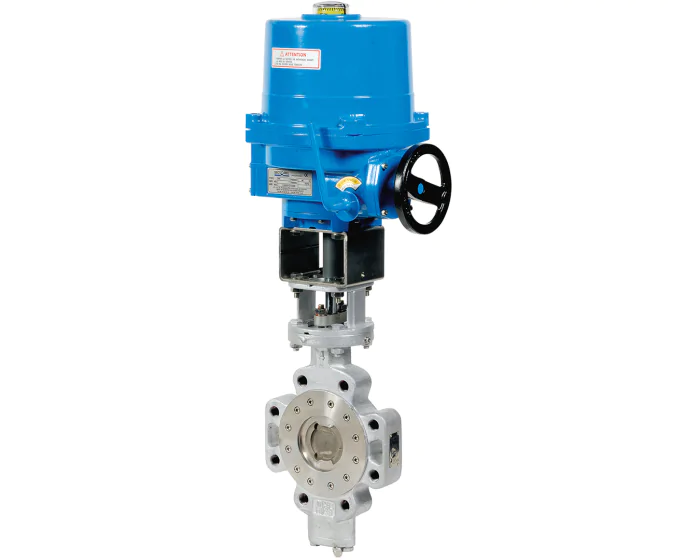

Triple offset disc valve LUG PN40, steel body 1.0619, PS: 40 bar - TS: -39/+349°C. NA electric actuator. Mounting between flanges LUG PN40.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 25 |
| Shaft/stem matérial | Stainless steel XM-19 |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | DN100 - 4'' |
| Duty service | S2 duty service - 70% |
| Face to Face (mm) | 54.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Packing gland | Graphite |
| PS (bar) | 40 |
| Power (W) | 40 |
| Connections | Between flanges PN40 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator series | SA/NA series |
| Seats | Metal/metal |
| Operating time (s) | 24.0 |
| Voltage | 230 V AC |
| TS max (°C) | 349 |
| TS min (°C) | -39 |
| Butterfly valve design | Triple offset |
| Wafer/lug | Lug |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | High performance butterfly valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset DN100 - 4'' | 260803023150 | S1003699 |
€4,332.71
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset DN150 - 6'' | 260805023180 | S1003700 |
€7,150.20
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset DN200 - 8'' | 260806023180 | S1003701 |
€9,139.20
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset DN250 - 10'' | 260807023200 | S1003702 |
€9,169.80
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset DN300 - 12'' | 260808023210 | S1003703 |
€11,903.40
(excl. btw)
|
add to cart |
