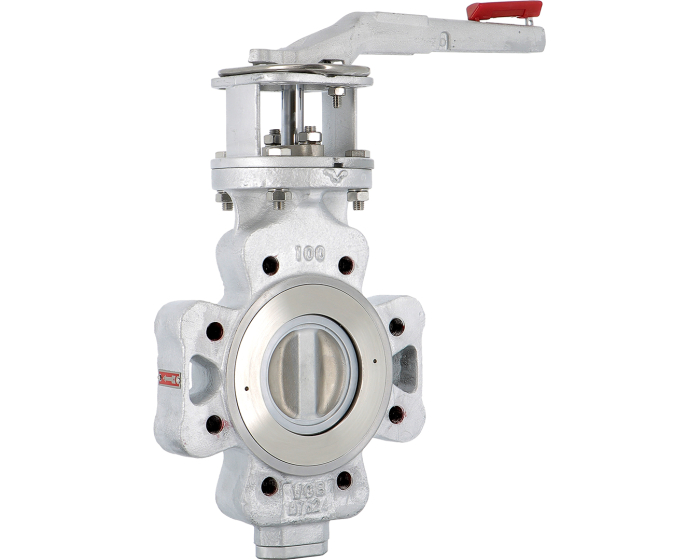

The 1117 series double offset butterfly valve is a lug-type valve with a carbon steel body, stainless steel disc and 15% graphite-filled PTFE seat. It is between flanges PN16 or ANSI 150, fire safe, for steam, heating and petrochemicals.
| Specification | Value |
|---|---|
| DN inches NPS | 2'' |
| Option certificate 3.1 | Yes |
| DN metric | 50/60 |
| Construction standard | API 609 |
| CE risk category | III Module H |
| Fire safe standard | ISO 10497:2010 |
| SIL | SIL 1 |
| Paint coating thickness (µm) | 30.00 |
| EN face-to-face standard | EN 558 Series 20 |
| DIN face-to-face standard | DIN 3202 Part.3 Series K1 |
| ISO face-to-face standard | ISO 5752 Series 20 |
| Tightness test standard | ISO 5208 Rate A |
| Notch plate | Yes |
| Steam | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel 17 4-PH (630) |
| Lockable | Yes |
| Square, star (mm) | Square 11 mm |
| ATEX compatible | Yes |
| Torque (Nm) | 49 |
| DN | DN50 - 2'' |
| Face to Face (mm) | 43.0 |
| Fluid | Oxygen / Argon / Nitrogen |
| Kv (m³/h) | 138.4 |
| Body material | Carbon steel A216 WCB (1.0619) |
| Disc material | Stainless steel ASTM A351 CF8M |
| ISO pad 5211 | F05/F07 |
| Packing gland | Yes |
| PS (bar) | 16 |
| Connections | Between flanges PN16 |
| Seats | PTFE-Graphite |
| TS max (°C) | 210 |
| TS min (°C) | -29 |
| Butterfly valve design | Double offset |
| Wafer/lug | Lug |
| ATEX zone | 1 & 21. 2 & 22 |
| Through shaft | Yes |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Ductile iron |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN50 - 2'' Between flanges PN16 | 1117050 | S1007184 |
€535.14
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN50 - 2'' Between flanges #150 PN20 | 1117051 | S1007185 |
€535.14
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN65 - 2''1/2 Between flanges PN16 | 1117065 | S1007186 |
€563.56
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN65 - 2''1/2 Between flanges #150 PN20 | 1117066 | S1007187 |
€563.56
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN80 - 3'' Between flanges PN16 | 1117080 | S1007188 |
€765.77
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN80 - 3'' Between flanges #150 PN20 | 1117081 | S1007189 |
€765.77
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN100 - 4'' Between flanges PN16 | 1117100 | S1007190 |
€880.84
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN100 - 4'' Between flanges #150 PN20 | 1117101 | S1007191 |
€880.84
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN125 - 5'' Between flanges PN16 | 1117125 | S1007192 |
€1,060.80
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN125 - 5'' Between flanges #150 PN20 | 1117126 | S1007193 |
€1,060.80
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN150 - 6'' Between flanges PN16 | 1117150 | S1007194 |
€1,193.40
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN150 - 6'' Between flanges #150 PN20 | 1117151 | S1007195 |
€1,193.40
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN200 - 8'' Between flanges PN16 | 1117200 | S1007196 |
€1,818.51
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN200 - 8'' Between flanges #150 PN20 | 1117201 | S1007197 |
€1,818.51
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN250 - 10'' Between flanges PN16 | 1117250 | S1007198 |
€2,453.10
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN250 - 10'' Between flanges #150 PN20 | 1117251 | S1007199 |
€2,453.10
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN300 - 12'' Between flanges PN16 | 1117300 | S1007200 |
€3,239.23
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A216 WCB (1.0619) Double offset DN300 - 12'' Between flanges #150 PN20 | 1117301 | S1007201 |
€3,239.23
(excl. btw)
|
add to cart |
