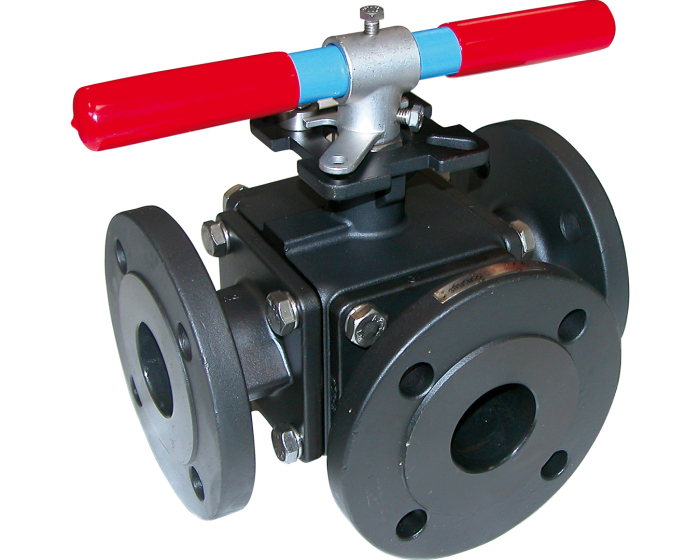

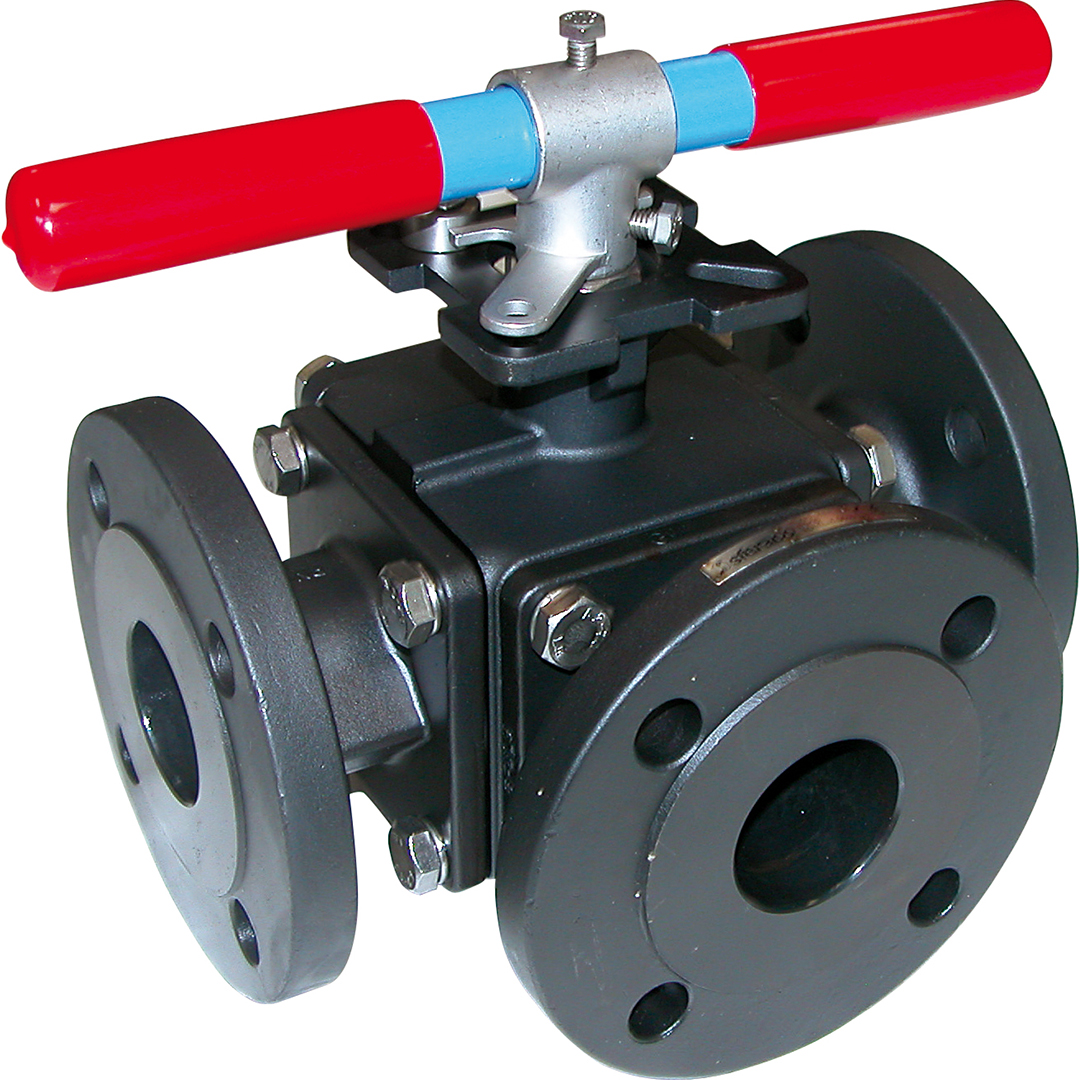

The 783 series ball valve is a 3-way flanged PN16 model, made of carbon steel, L-shaped port, with injectable shaft, ISO pad, and ATEX compatibility for chemicals, petrochemicals, heating, water, and compressed air.
| Specification | Value |
|---|---|
| DN inches NPS | 1'' |
| Option certificate 3.1 | Yes |
| CE risk category | III Module H |
| Tightness test standard | EN 12266-1 Rate A |
| Stem sealing material | PTFE gland packing + FKM O-ring |
| Antistatic device | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 304 |
| Lockable | Yes |
| Square, star (mm) | Square 11 mm |
| ATEX compatible | Yes |
| Torque (Nm) | 16 |
| DN | DN25 - 1'' |
| Face to Face (mm) | 185.0 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 30.0 |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 3 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Seats | PTFE-Glass |
| Ball material | Stainless steel AISI 304 |
| TS max (°C) | 150 |
| TS min (°C) | -20 |
| 3-way type | L |
| Ball valve design | 3-way |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Main product colour | Black |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full 3-way DN25 - 1'' | 783025 | S1007941 |
€383.49
(excl. btw)
|
add to cart |
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full 3-way DN32 - 1''1/4 | 783032 | S1007942 |
€511.23
(excl. btw)
|
add to cart |
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full 3-way DN40 - 1''1/2 | 783040 | S1007943 |
€683.40
(excl. btw)
|
add to cart |
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full 3-way DN50 - 2'' | 783050 | S1007944 |
€917.04
(excl. btw)
|
add to cart |
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full 3-way DN65 - 2''1/2 | 783065 | S1007945 |
€1,261.73
(excl. btw)
|
add to cart |
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full 3-way DN80 - 3'' | 783080 | S1007946 |
€1,720.19
(excl. btw)
|
add to cart |
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full 3-way DN100 - 4'' | 783100 | S1007947 |
€3,199.31
(excl. btw)
|
add to cart |
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full 3-way DN125 - 5'' | 783125 | S1007948 |
€5,319.61
(excl. btw)
|
add to cart |
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full 3-way DN150 - 6'' | 783150 | S1007949 |
€7,125.59
(excl. btw)
|
add to cart |
