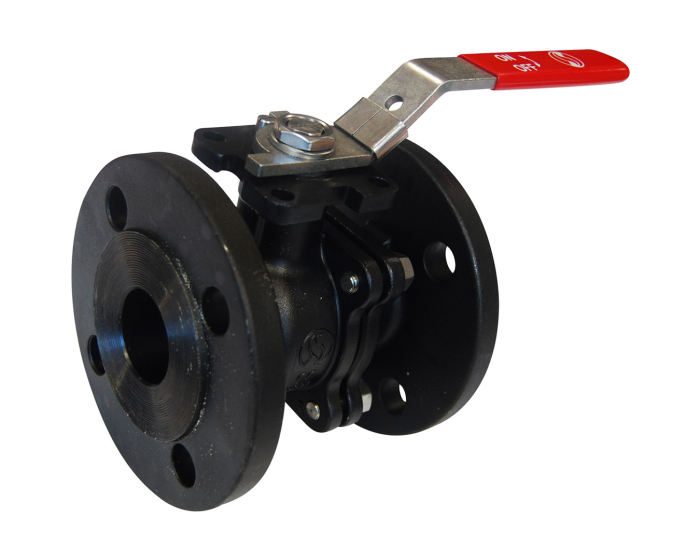

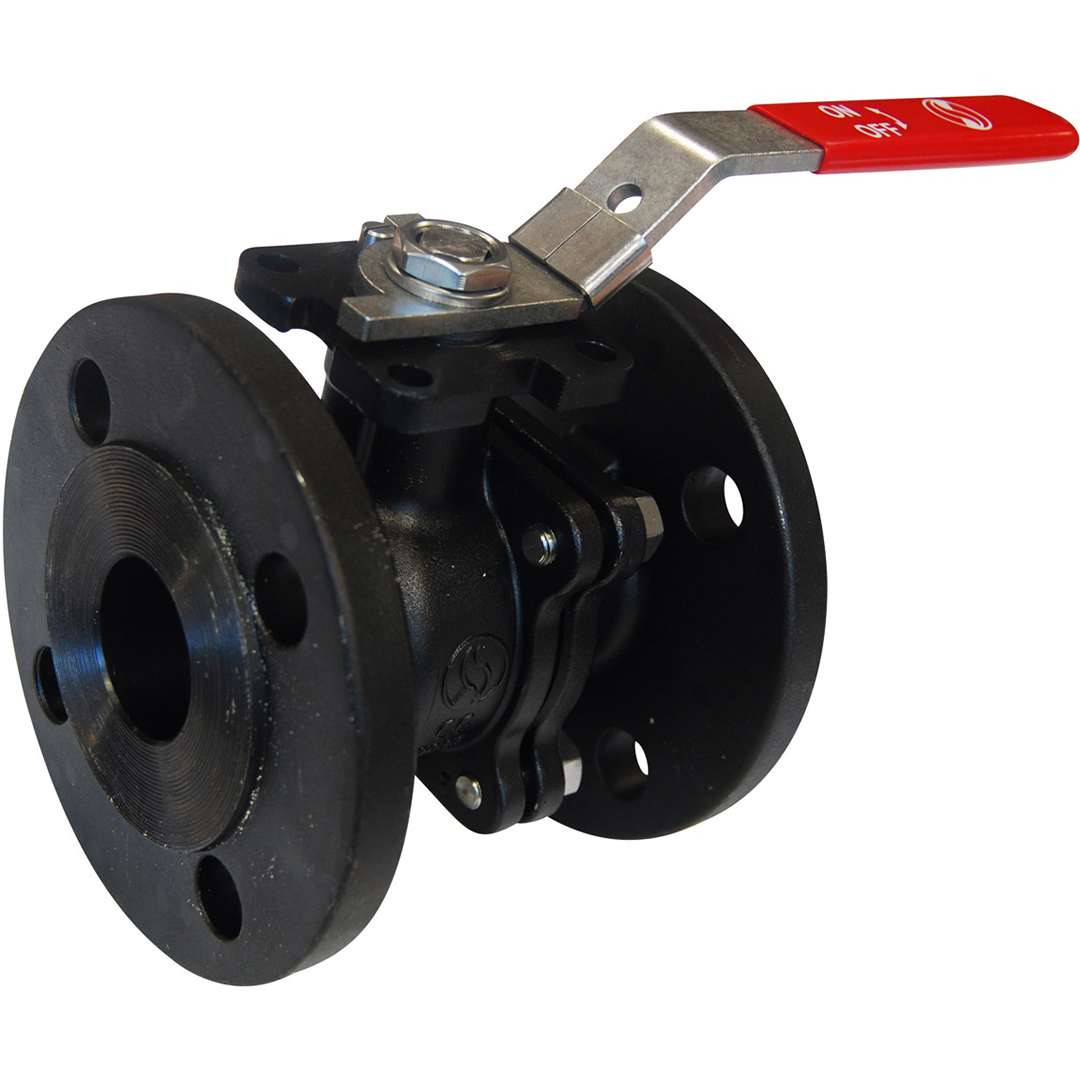

Carbon steel ball valve 764 2 piece body RF PN16 DN15
€43.56
(excl. btw)
Carbon steel ball valve 764 2 piece body RF PN16 DN50
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| Construction standard | EN 12516-1 |
| CE risk category | II Module D1 |
| EN face-to-face standard | EN 558 Series 27 |
| DIN face-to-face standard | DIN 3202 F4. DIN 3357-2 ff |
| Face to face standard | error to be processed |
| Tightness test standard | API 598 |
| Stem sealing material | PTFE gland packing + FKM O-ring |
| Antistatic device | Yes |
| Opening device | Handle |
| Application | Industry |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Lockable | Yes |
| Square, star (mm) | Square 9 mm |
| Torque (Nm) | 6 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 115.0 |
| Fluid | Hydrocarbons. gas |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | F04 |
| Packing gland | Yes |
| PS (bar) | 40 |
| Connections | Flanged PN10/40 |
| Seats | PTFE-Glass |
| Ball material | Stainless steel AISI 304 |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| Ball valve design | Split body |
| Warranty period | 2 years |
| CE | Yes |
| Main product colour | Black |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN15 - 1/2'' | 764015 | S1006678 |
€43.56
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN20 - 3/4'' | 764020 | S1006679 |
€56.99
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN25 - 1'' | 764025 | S1006680 |
€71.20
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN32 - 1''1/4 | 764032 | S1006681 |
€103.99
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN40 - 1''1/2 | 764040 | S1006682 |
€124.17
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN50 - 2'' | 764050 | S1006683 |
€172.70
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN65 - 2''1/2 | 764065 | S1006684 |
€276.79
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN80 - 3'' | 764080 | S1006685 |
€357.77
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN100 - 4'' | 764100 | S1006686 |
€494.81
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN125 - 5'' | 764125 | S1006687 |
€862.01
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN150 - 6'' | 764150 | S1006688 |
€1,140.77
(excl. btw)
|
add to cart |
