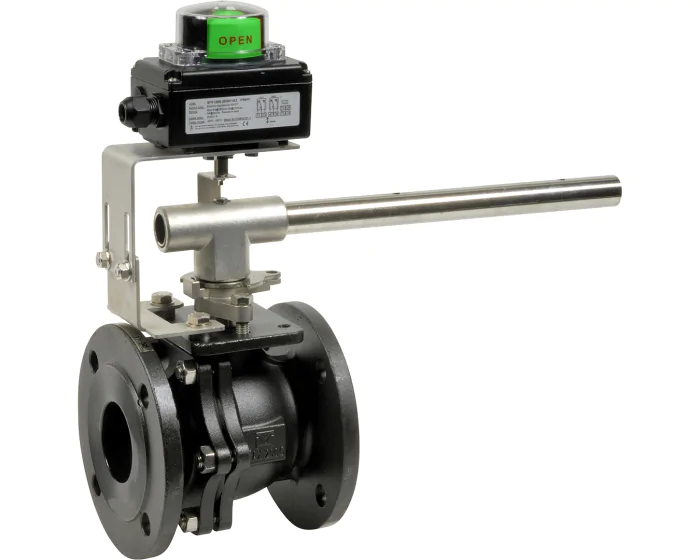

Carbon steel body 1.0619, stainless steel ball, PTFE/glass seats, full bore. PS: 16 bar - TS: -20/+200°C. Flanged attachments PN16 RF. Limit switch box SF012, 2 dry contacts SPDT.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Shaft/stem matérial | Stainless steel 316 |
| Switch type | dry SPDT |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 115.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| PS (bar) | 40 |
| Connections | Flanged PN16 |
| Seats | PTFE-Glass |
| TS max (°C) | 200 |
| TS min (°C) | -20 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN15 - 1/2'' | 2742420462012 | S1008134 |
€336.23
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN20 - 3/4'' | 2742430462012 | S1008135 |
€351.69
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN25 - 1'' | 2742440462012 | S1008136 |
€390.29
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN32 - 1''1/4 | 2742450462012 | S1008137 |
€422.77
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN40 - 1''1/2 | 2742460462012 | S1008138 |
€492.20
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN50 - 2'' | 2742470462012 | S1008139 |
€531.63
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN65 - 2''1/2 | 2742480462012 | S1008140 |
€740.33
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN80 - 3'' | 2742490462012 | S1008141 |
€832.64
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN100 - 4'' | 2742500462012 | S1008142 |
€1,061.99
(excl. btw)
|
add to cart |
