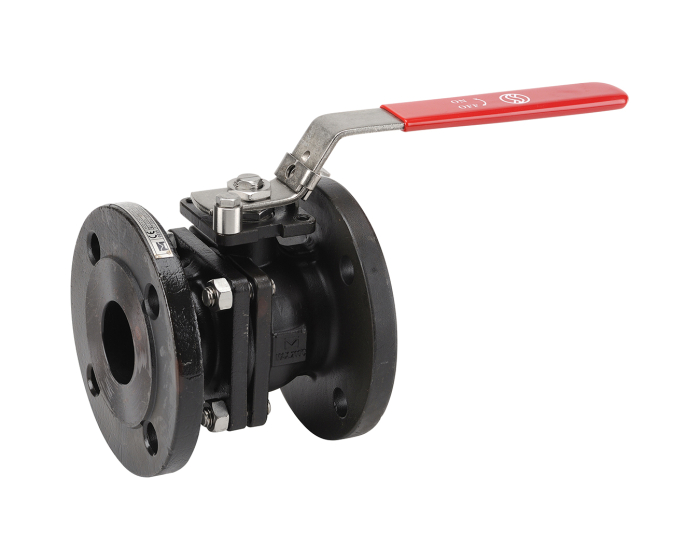

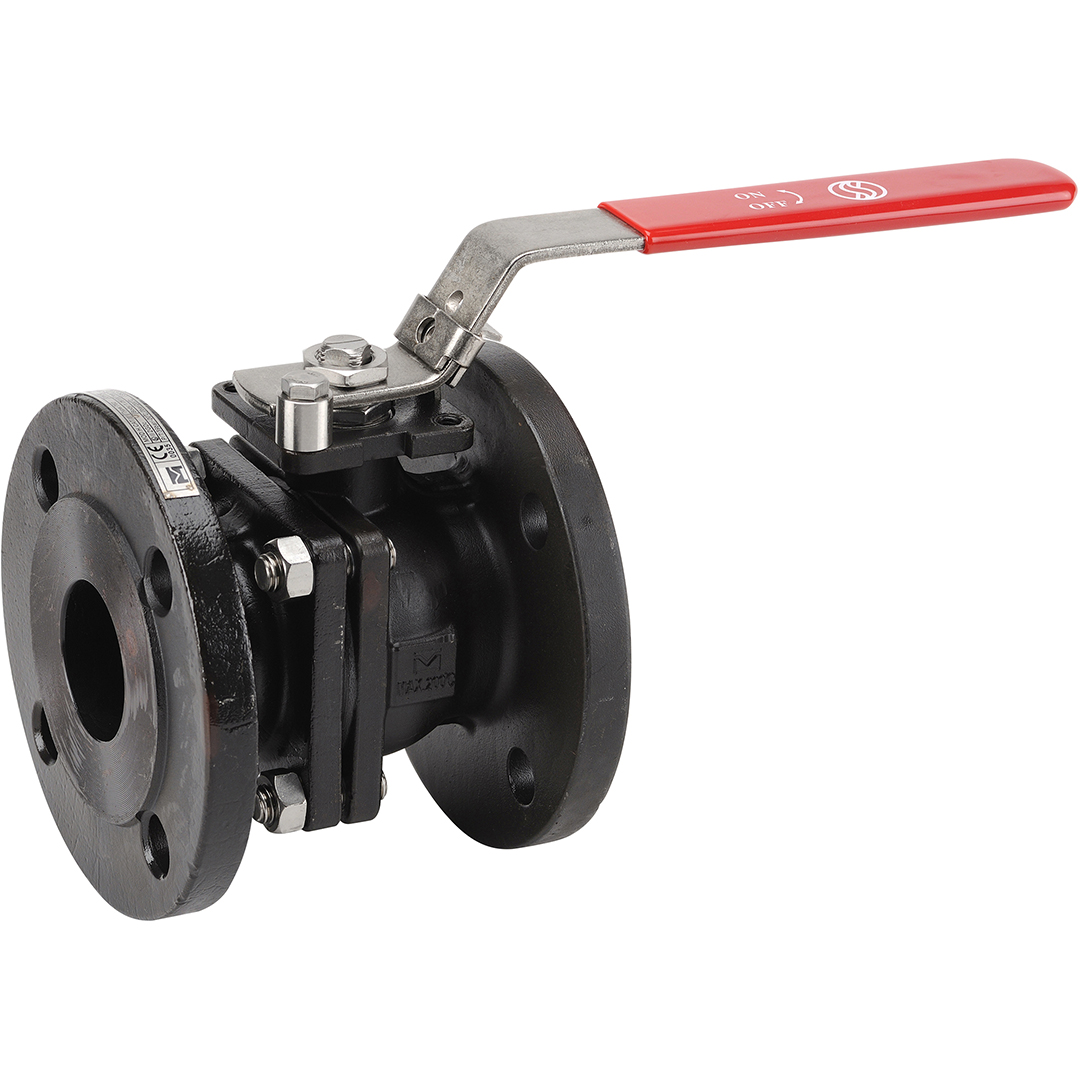

Discover the Sferaco 762 series ball valve, 2-piece body model of the performance range in PN16/40 flanged steel, full bore, with double antistatic system, PTFE seat for chemicals, petrochemicals, heating, etc.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| Construction standard | EN 12516-1 |
| CE risk category | III Module H |
| Fire safe standard | API 607 V6 |
| EN face-to-face standard | EN 558 Series 27 |
| DIN face-to-face standard | DIN 3202 F4. DIN 3357-2 ff |
| Face to face standard | error to be processed |
| Tightness test standard | API 598 |
| Stem sealing material | Graphite |
| Antistatic device | Yes |
| Steam | Yes |
| Degassing hole | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel ASTM A479 type 316 |
| Lockable | Yes |
| Square, star (mm) | Square 9 mm |
| ATEX compatible | Yes |
| Torque (Nm) | 8 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 115.0 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 31.0 |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 40 |
| Connections | Flanged PN10/40 |
| Seats | PTFE-Glass |
| Ball material | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 200 |
| TS min (°C) | -20 |
| Ball valve design | Split body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Main product colour | Black |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN15 - 1/2'' | 762015 | S1006708 |
€70.00
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN20 - 3/4'' | 762020 | S1006709 |
€84.67
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN25 - 1'' | 762025 | S1006710 |
€110.87
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN32 - 1''1/4 | 762032 | S1006711 |
€145.59
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN40 - 1''1/2 | 762040 | S1006712 |
€188.07
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN50 - 2'' | 762050 | S1006713 |
€243.74
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN65 - 2''1/2 | 762065 | S1006714 |
€361.21
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN80 - 3'' | 762080 | S1006715 |
€445.80
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN100 - 4'' | 762100 | S1006716 |
€606.91
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN125 - 5'' | 762125 | S1006717 |
€1,171.44
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN150 - 6'' | 762150 | S1006718 |
€1,522.23
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full Split body DN200 - 8'' | 762200 | S1006719 |
€2,760.01
(excl. btw)
|
add to cart |
