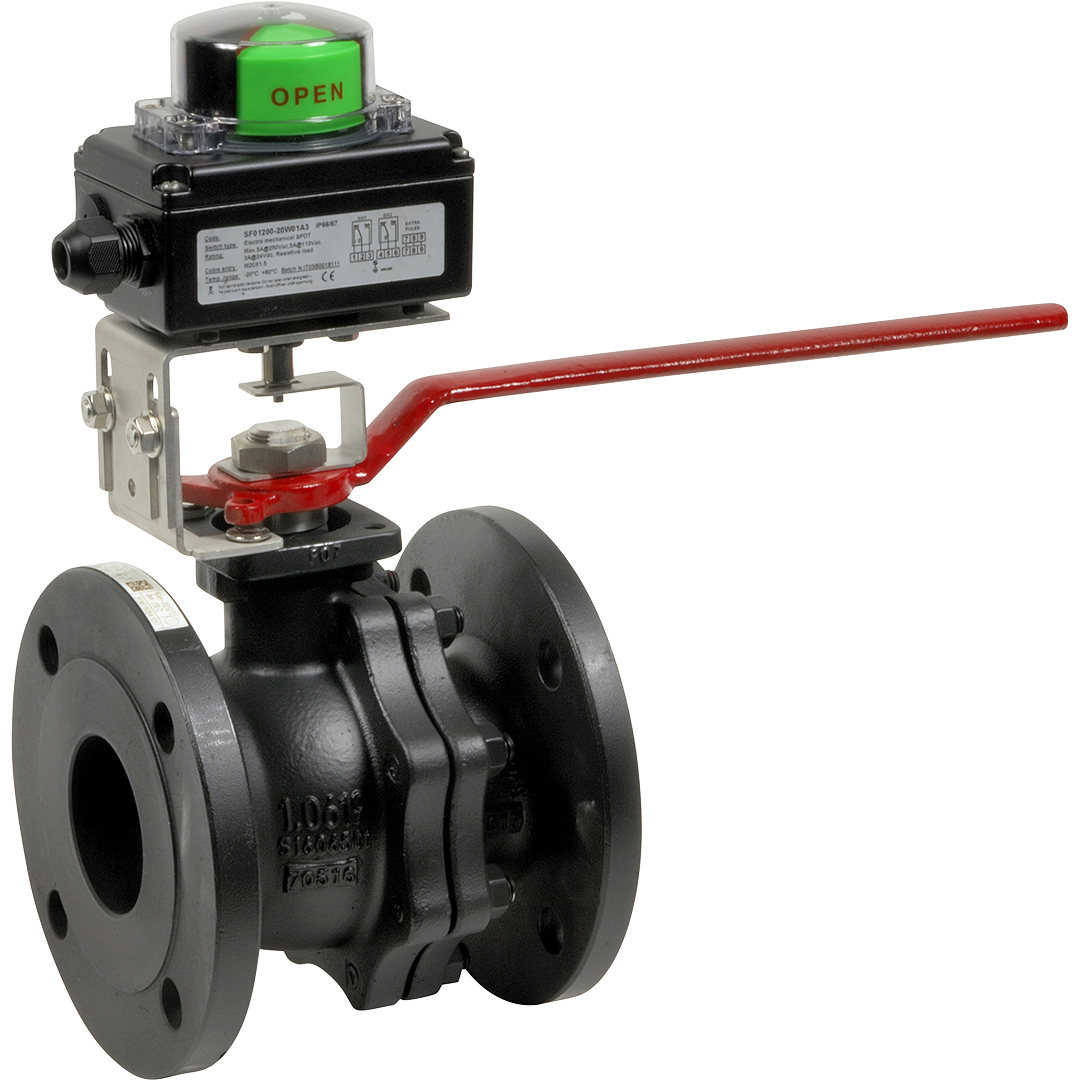

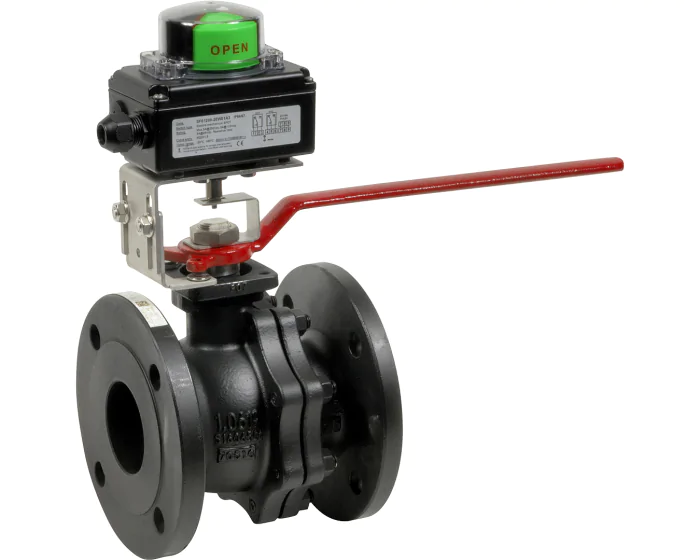

The ICP Valves carbon steel ball valve 752 with RF PN16 flanged body in steel 1.0619, stainless steel ball, and TFM1600 seats offers full bore design. Fire Safe certified, PS 16 bar, TS -20°C to +200°C, supplied with Findecourse SF012 limit
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Shaft/stem matérial | Stainless steel CF8M |
| Switch type | dry SPDT |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 115.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| PS (bar) | 40 |
| Connections | Flanged PN16 |
| Seats | TFM 1600 |
| TS max (°C) | 200 |
| TS min (°C) | -20 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN15 - 1/2'' | 2742820462012 | S1008164 |
€432.87
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN20 - 3/4'' | 2742830462012 | S1008165 |
€453.09
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN25 - 1'' | 2742840462012 | S1008166 |
€459.00
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN32 - 1''1/4 | 2742850462012 | S1008167 |
€492.73
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN40 - 1''1/2 | 2742860462012 | S1008168 |
€554.79
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN50 - 2'' | 2742870462012 | S1008169 |
€639.91
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN65 - 2''1/2 | 2742880462012 | S1008170 |
€714.17
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN80 - 3'' | 2742890462012 | S1008171 |
€895.70
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN100 - 4'' | 2742900462012 | S1008172 |
€1,129.84
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN125 - 5'' | 2742910462012 | S1008173 |
€1,578.47
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN150 - 6'' | 2742920462012 | S1008174 |
€1,999.54
(excl. btw)
|
add to cart |
