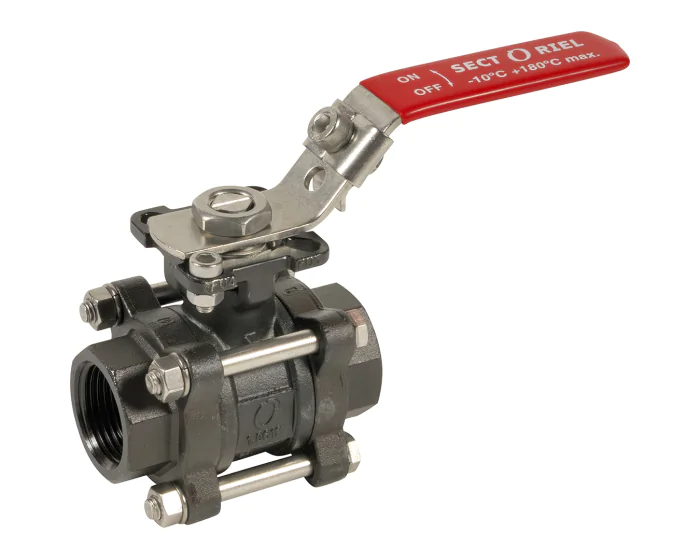

Carbon steel ball valve 737XS 3-piece body BSP + ISO pad
€55.43
(excl. btw)
The 737XS carbon steel 3-piece ball valve with ISO pad and PTFE/SS seats is built for steam service, rated 15 bar at 200°C. Delivers durable, secure shut-off and easy actuation for demanding industrial networks.
Specification
Value
Option certificate 3.1
Yes
Shaft/stem matérial
Stainless steel 316
DN
DN15 - 1/2''
Face to Face (mm)
75.0
Body material
Carbon steel A216 WCB (1.0619)
PS (bar)
63
Connections
BSP FF
Seats
PTFE-Stainless steel
TS max (°C)
220
TS min (°C)
-25
ATEX zone
1.21.2.22
Warranty period
1 year
CE
Risk category III
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
8283
BSP FF Carbon steel A216 WCB (1.0619) DN15 - 1/2'' BSP FF
271202
S1008328
€55.43
(excl. btw)
add to cart
8284
BSP FF Carbon steel A216 WCB (1.0619) DN20 - 3/4'' BSP FF
271203
S1008329
€64.44
(excl. btw)
add to cart
8285
BSP FF Carbon steel A216 WCB (1.0619) DN25 - 1'' BSP FF
271204
S1008330
€84.57
(excl. btw)
add to cart
8286
BSP FF Carbon steel A216 WCB (1.0619) DN32 - 1''1/4 BSP FF
271205
S1008331
€115.01
(excl. btw)
add to cart
8287
BSP FF Carbon steel A216 WCB (1.0619) DN40 - 1''1/2 BSP FF
271206
S1008332
€163.57
(excl. btw)
add to cart
8288
BSP FF Carbon steel A216 WCB (1.0619) DN50 - 2'' BSP FF
271207
S1008333
€237.51
(excl. btw)
add to cart
8289
BSP FF Carbon steel A216 WCB (1.0619) DN15 - 1/2'' Welding BW
271212
S1008334
€55.43
(excl. btw)
add to cart
8290
BSP FF Carbon steel A216 WCB (1.0619) DN20 - 3/4'' Welding BW
271213
S1008335
€64.44
(excl. btw)
add to cart
8291
BSP FF Carbon steel A216 WCB (1.0619) DN25 - 1'' Welding BW
271214
S1008336
€84.57
(excl. btw)
add to cart
8292
BSP FF Carbon steel A216 WCB (1.0619) DN32 - 1''1/4 Welding BW
271215
S1008337
€115.01
(excl. btw)
add to cart
8293
BSP FF Carbon steel A216 WCB (1.0619) DN40 - 1''1/2 Welding BW
271216
S1008338
€163.57
(excl. btw)
add to cart
8294
BSP FF Carbon steel A216 WCB (1.0619) DN50 - 2'' Welding BW
271217
S1008339
€237.51
(excl. btw)
add to cart
8295
BSP FF Carbon steel A216 WCB (1.0619) DN15 - 1/2'' Welding SW
271232
S1008340
€55.43
(excl. btw)
add to cart
8296
BSP FF Carbon steel A216 WCB (1.0619) DN20 - 3/4'' Welding SW
271233
S1008341
€64.44
(excl. btw)
add to cart
8297
BSP FF Carbon steel A216 WCB (1.0619) DN25 - 1'' Welding SW
271234
S1008342
€84.57
(excl. btw)
add to cart
8298
BSP FF Carbon steel A216 WCB (1.0619) DN32 - 1''1/4 Welding SW
271235
S1008343
€115.01
(excl. btw)
add to cart
8299
BSP FF Carbon steel A216 WCB (1.0619) DN40 - 1''1/2 Welding SW
271236
S1008344
€163.57
(excl. btw)
add to cart
8300
BSP FF Carbon steel A216 WCB (1.0619) DN50 - 2'' Welding SW
271237
S1008345
€237.51
(excl. btw)
add to cart
