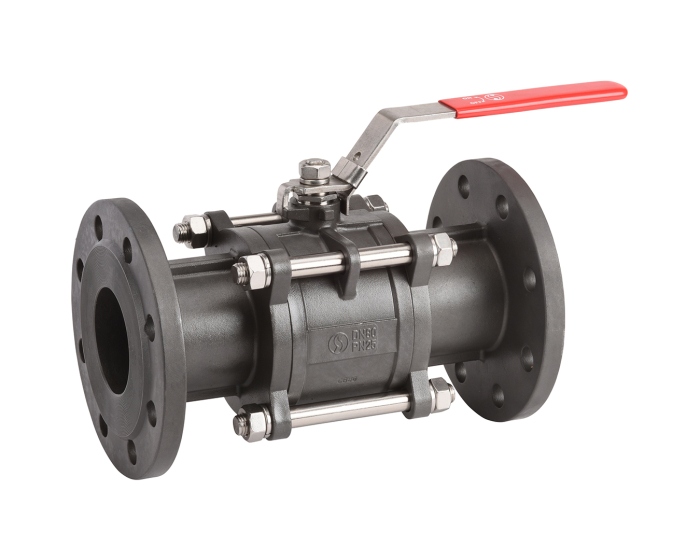

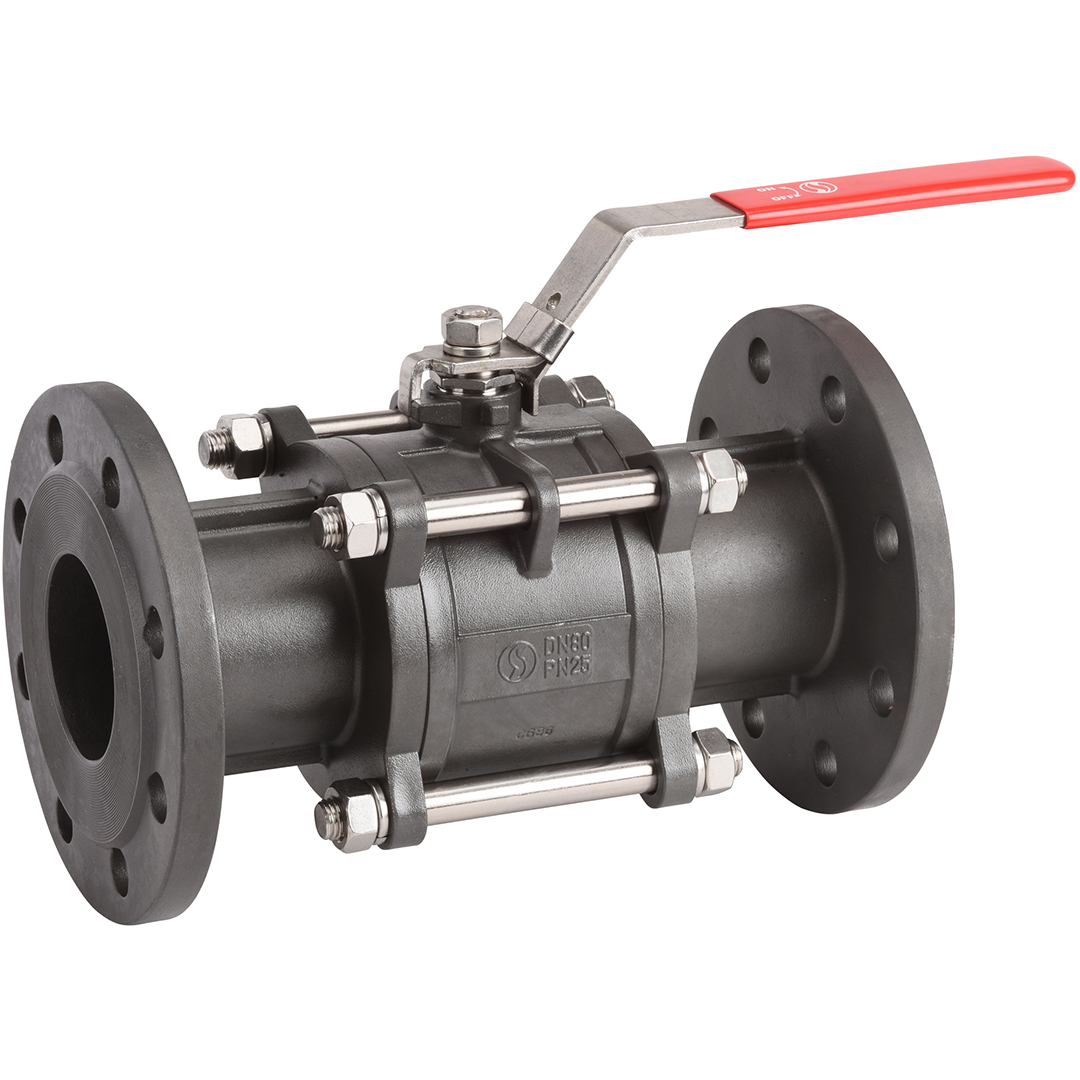

The 730 series ball valve, 3-piece body with flanges PN40, in steel, full bore, PTFE packing gland, phosphating, for common fluids compatible with group 2.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| CE risk category | III Module H |
| EN face-to-face standard | EN 558 Series 1 |
| DIN face-to-face standard | DIN 3202 F1 |
| Face to face standard | EN 558 Series 1. DIN 3202 F1 |
| Tightness test standard | API 598 |
| Stem sealing material | PTFE gland packing |
| Opening device | Handle |
| Application | Industry |
| Shaft/stem matérial | Stainless steel AISI 304 |
| Lockable | Yes |
| Torque (Nm) | 2 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 130.0 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 20.7 |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | No |
| Packing gland | Yes |
| PS (bar) | 40 |
| Connections | Flanged PN10/40 |
| Seats | PTFE-Glass |
| Ball material | Stainless steel AISI 304 |
| TS max (°C) | 180 |
| TS min (°C) | -20 |
| Ball valve design | flanged 3-piece body |
| Warranty period | 2 years |
| CE | Yes |
| Main product colour | Black |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full flanged 3-piece body DN15 - 1/2'' | 730015 | S1008530 |
€42.80
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full flanged 3-piece body DN20 - 3/4'' | 730020 | S1008531 |
€62.51
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full flanged 3-piece body DN25 - 1'' | 730025 | S1008532 |
€71.59
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full flanged 3-piece body DN32 - 1''1/4 | 730032 | S1008533 |
€111.64
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full flanged 3-piece body DN40 - 1''1/2 | 730040 | S1008534 |
€136.07
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full flanged 3-piece body DN50 - 2'' | 730050 | S1008535 |
€192.99
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full flanged 3-piece body DN65 - 2''1/2 | 730065 | S1008536 |
€324.69
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full flanged 3-piece body DN80 - 3'' | 730080 | S1008537 |
€446.46
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full flanged 3-piece body DN100 - 4'' | 730100 | S1008538 |
€640.71
(excl. btw)
|
add to cart |
