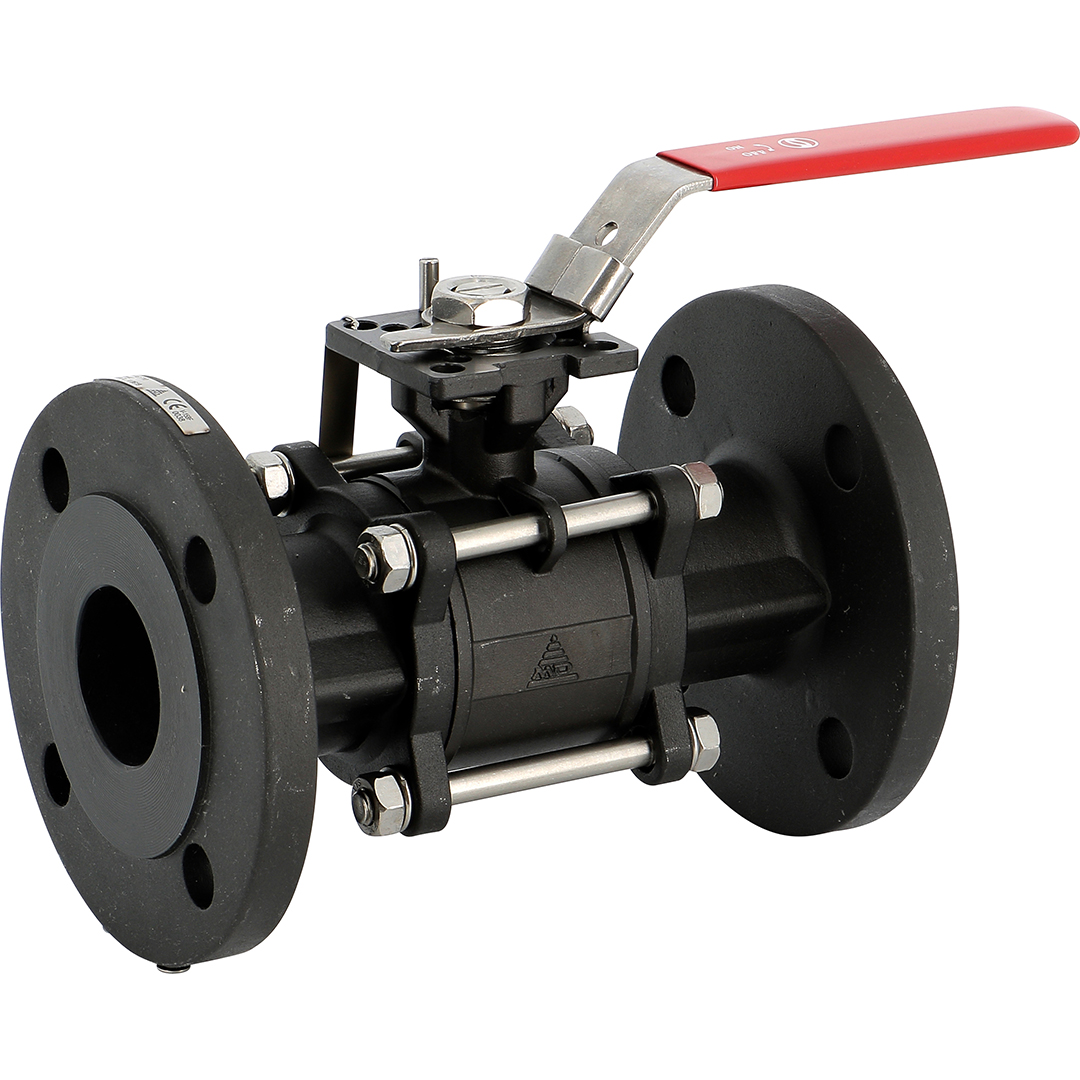

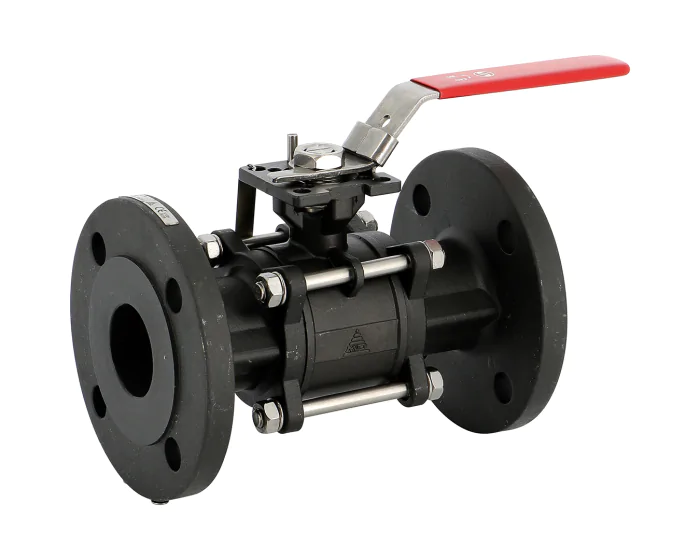

3-piece body steel ball valve with flanges PN40 Series 710 Sferaco with ISO pad 5211 direct mounting, full bore for chemical and pharmaceutical industries, petrochemicals, hydraulic installations
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| CE risk category | III Module H |
| EN face-to-face standard | EN 558 Series 1 |
| DIN face-to-face standard | DIN 3202 F1 |
| Face to face standard | EN 558 Series 1. DIN 3202 F1 |
| Tightness test standard | EN 12266-1 Rate A |
| Stem sealing material | 25% Graphite filled PTFE gland packing |
| Antistatic device | Yes |
| Steam | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Lockable | Yes |
| Square, star (mm) | Square 9 mm |
| ATEX compatible | Yes |
| Torque (Nm) | 7 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 130.0 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 31.3 |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 40 |
| Connections | Flanged PN10/40 |
| Seats | PTFE-Stainless steel |
| Ball material | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 220 |
| TS min (°C) | -20 |
| Ball valve design | flanged 3-piece body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Main product colour | Black |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full flanged 3-piece body DN15 - 1/2'' | 710015 | S1008548 |
€106.46
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full flanged 3-piece body DN20 - 3/4'' | 710020 | S1008549 |
€146.37
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full flanged 3-piece body DN25 - 1'' | 710025 | S1008550 |
€165.39
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full flanged 3-piece body DN32 - 1''1/4 | 710032 | S1008551 |
€214.56
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full flanged 3-piece body DN40 - 1''1/2 | 710040 | S1008552 |
€286.41
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full flanged 3-piece body DN50 - 2'' | 710050 | S1008553 |
€402.01
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full flanged 3-piece body DN65 - 2''1/2 | 710065 | S1008554 |
€711.87
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full flanged 3-piece body DN80 - 3'' | 710080 | S1008555 |
€883.19
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) Full flanged 3-piece body DN100 - 4'' | 710100 | S1008556 |
€1,333.44
(excl. btw)
|
add to cart |
