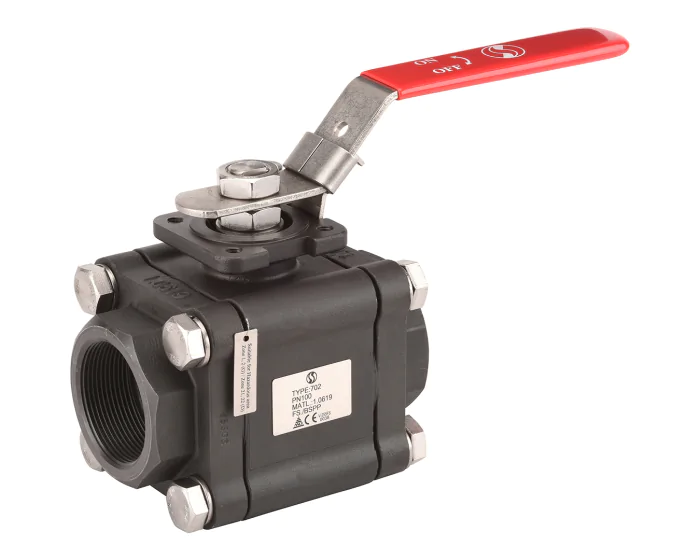

Carbon steel ball valve 702R 3-piece body + ISO pad Fire Safe
€71.10
(excl. btw)
The 702R carbon steel 3-piece ball valve combines fire-safe design, ISO pad for easy actuation, and ATEX compatibility. Handles 140 bar from -20°C to +220°C, reduced bore, sizes 1/4'' to 2'', ensuring reliable shut-off in heavy industries.
Specification
Value
DN inches NPS
1/2''
Option certificate 3.1
Yes
Construction standard
EN 12516-1 - ASME B16.34
CE risk category
III Module H
Fire safe standard
ISO 10497:2010. API 607 V6
Thread standard
ISO 228-1
Tightness test standard
EN 12266-1 Rate A
Stem sealing material
Graphite
Antistatic device
Yes
Steam
Yes
Opening device
Handle
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel AISI 316
Lockable
Yes
Square, star (mm)
MEP Ø9.5x6.5
ATEX compatible
Yes
Torque (Nm)
10
DN
DN15 - 1/2''
Face to Face (mm)
64.8
Fluid
Hydrocarbons. gas
Kv (m³/h)
13.4
Body material
Carbon steel A216 WCB (1.0619)
Number of ways
2
Bore
Reduced
ISO pad 5211
Yes
Packing gland
Yes
PS (bar)
140
Connections
BSP FF
Seats
PTFE-Carbon
Ball material
Stainless steel ASTM A351 CF8M
TS max (°C)
220
TS min (°C)
-20
Ball valve design
3-piece body
ATEX zone
1 & 21. 2 & 22
Warranty period
2 years
CE
Yes
Main product colour
Black
Handle material
Stainless steel AISI 304
Handle type
Red lever
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
8331
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN15 - 1/2'' BSP FF
702R004
S1008373
€71.10
(excl. btw)
add to cart
8332
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN20 - 3/4'' BSP FF
702R005
S1008374
€82.33
(excl. btw)
add to cart
8333
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN25 - 1'' BSP FF
702R006
S1008375
€113.90
(excl. btw)
add to cart
8334
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN32 - 1''1/4 BSP FF
702R007
S1008376
€168.41
(excl. btw)
add to cart
8335
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN40 - 1''1/2 BSP FF
702R008
S1008377
€206.50
(excl. btw)
add to cart
8336
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN50 - 2'' BSP FF
702R009
S1008378
€359.56
(excl. btw)
add to cart
8337
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN15 - 1/2'' Welding BW
702R115
S1008379
€71.10
(excl. btw)
add to cart
8338
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN20 - 3/4'' Welding BW
702R120
S1008380
€82.33
(excl. btw)
add to cart
8339
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN25 - 1'' Welding BW
702R125
S1008381
€113.90
(excl. btw)
add to cart
8340
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN32 - 1''1/4 Welding BW
702R132
S1008382
€168.41
(excl. btw)
add to cart
8341
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN40 - 1''1/2 Welding BW
702R140
S1008383
€206.50
(excl. btw)
add to cart
8342
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN50 - 2'' Welding BW
702R150
S1008384
€359.56
(excl. btw)
add to cart
8343
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN15 - 1/2'' Welding SW
702R215
S1008385
€71.10
(excl. btw)
add to cart
8344
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN20 - 3/4'' Welding SW
702R220
S1008386
€82.33
(excl. btw)
add to cart
8345
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN25 - 1'' Welding SW
702R225
S1008387
€113.90
(excl. btw)
add to cart
8346
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN32 - 1''1/4 Welding SW
702R232
S1008388
€168.41
(excl. btw)
add to cart
8347
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN40 - 1''1/2 Welding SW
702R240
S1008389
€206.50
(excl. btw)
add to cart
8348
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN50 - 2'' Welding SW
702R250
S1008390
€359.56
(excl. btw)
add to cart
8349
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN15 - 1/2'' NPT FF
702R304
S1008391
€71.10
(excl. btw)
add to cart
8350
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN20 - 3/4'' NPT FF
702R305
S1008392
€82.33
(excl. btw)
add to cart
8351
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN25 - 1'' NPT FF
702R306
S1008393
€113.90
(excl. btw)
add to cart
8352
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN32 - 1''1/4 NPT FF
702R307
S1008394
€168.41
(excl. btw)
add to cart
8353
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN40 - 1''1/2 NPT FF
702R308
S1008395
€206.50
(excl. btw)
add to cart
8354
BSP FF Carbon steel A216 WCB (1.0619) Reduced 3-piece body DN50 - 2'' NPT FF
702R309
S1008396
€359.56
(excl. btw)
add to cart
