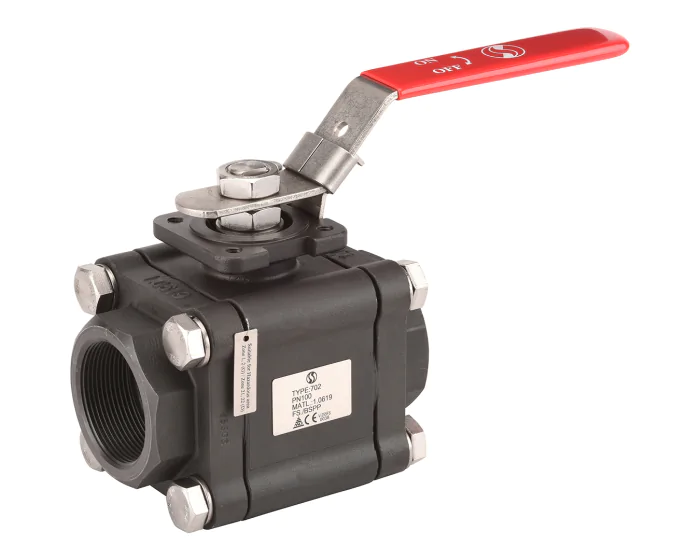

Carbon steel ball valve 702 3-piece body + ISO pad Fire Safe
€66.40(excl. btw)
The 702 Series carbon steel ball valve combines fire-safe certification, ISO pad mounting, and robust 3-piece design. With ATEX compliance, pressure resistance up to 140 bar and -20°C to +220°C, it is ideal for demanding industries.
In stock Subject prior to sales
Categories :
Kogelkranen
Reference 702 three-piece body ISO pad and fire safe ball valve Our reference 702 is a three-piece body ISO pad and fire safe ball valve. This type of valve is mainly used in the field of heavy industry such as the chemical and pharmaceutical sectors, petrochemical industries, hydraulic installations, and compressed air systems. With body in A216WCB carbon steel and PTFE filled with 25% carbon seat, this three-piece body ISO pad and fire safe ball valve offers great creep strength and high temperature resistance. It comes in sizes ranging from ¼'' to 2'' and with different types of connections: threaded BSP or NPT, SW or BW. This valve allows temperatures between -20 °C and +220 °C, and a maximum pressure of 140 bar up to 1'' (100 bar above 1'' - 18 bar maximum for steam). Our reference 702 is also characterised by the following technical specifications: Full bore Anti-blowout stem Antistatic device up to 3/8'', double antistatic device (between body and stem, and between ball and stem) from ½'' to 2'' Three stage gland packing in graphite and 15% Grafoil PTFE for enhanced stem tightness Handle with locking device ISO 5211 mounting pad Fully encapsulated stud bolts/fitted-in struts for robust construction Fire safe construction with graphite gaskets according to ISO 10497 and API 607 V.6 Compatibility with ATEX zone ABS type Approval Marine certificate Handwheel and stem extension (optional)
Specification
Value
DN inches NPS
1/4''
Option certificate 3.1
Yes
Construction standard
EN 12516-1 - ASME B16.34
CE risk category
III Module H
Fire safe standard
ISO 10497:2010. API 607 V6
Thread standard
ISO 228-1
Tightness test standard
EN 12266-1 Rate A
Stem sealing material
Graphite
Antistatic device
Yes
Steam
Yes
Opening device
Handle
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel AISI 316
Lockable
Yes
Square, star (mm)
MEP Ø9.5x6.5
ATEX compatible
Yes
Torque (Nm)
6
DN
DN8 - 1/4''
Face to Face (mm)
64.8
Fluid
Hydrocarbons. gas
Kv (m³/h)
13.0
Body material
Carbon steel A216 WCB (1.0619)
Number of ways
2
Bore
Full
ISO pad 5211
Yes
Packing gland
Yes
PS (bar)
140
Connections
BSP FF
Seats
PTFE-Carbon
Ball material
Stainless steel ASTM A351 CF8M
TS max (°C)
220
TS min (°C)
-20
Ball valve design
3-piece body
ATEX zone
1 & 21. 2 & 22
Warranty period
2 years
CE
Yes
Main product colour
Black
Handle material
Stainless steel AISI 304
Handle type
Red lever
Fire safe
Yes
If you have any questions about this product, please feel free to contact us.
Product Name
Product Number
EVAC Number
Price
Add to Cart
8400
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF DN8 - 1/4''
