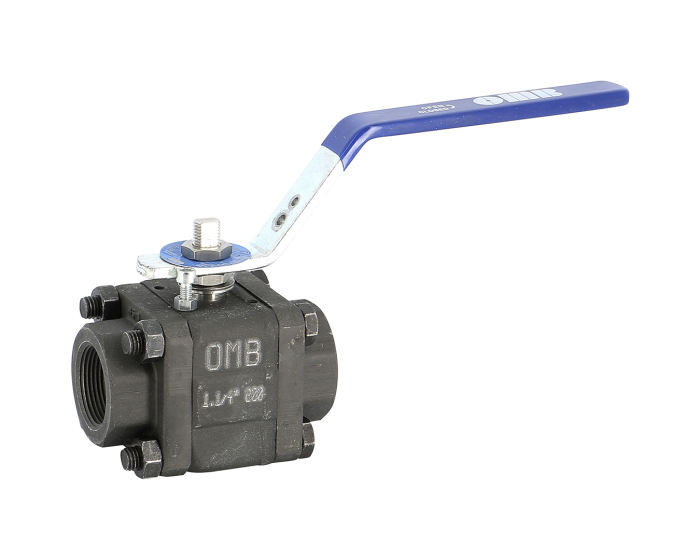

The 745 series ball valve, three-piece model in forged steel A105N, class 800, SW or NPT threaded connection, actuation by ISO 5211 pad, full bore, fire safe, ATEX, for industrial.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| Construction standard | ISO 17292 - ASME B16.34 |
| CE risk category | III Module H |
| Brand | OMB |
| Tightness test standard | API 598 |
| Stem sealing material | Graphite |
| Steam | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel ASTM A479 type 316 |
| ATEX compatible | Yes |
| Torque (Nm) | 17 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 75.0 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 10.4 |
| Body material | Carbon steel ASTM A105 N |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 136 |
| Connections | NPT FF |
| Seats | PTFE-Glass |
| Ball material | Stainless steel ASTM A479 Tp 316 |
| TS max (°C) | 200 |
| TS min (°C) | -29 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Main product colour | Black |
| Handle material | Carbon steel |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| NPT FF Carbon steel ASTM A105 N Full DN15 - 1/2'' NPT FF | 745004 | S1007304 |
€146.19
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A105 N Full DN20 - 3/4'' NPT FF | 745005 | S1007305 |
€173.60
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A105 N Full DN25 - 1'' NPT FF | 745006 | S1007306 |
€191.87
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A105 N Full DN32 - 1''1/4 NPT FF | 745007 | S1007307 |
€249.76
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A105 N Full DN40 - 1''1/2 NPT FF | 745008 | S1007308 |
€328.93
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A105 N Full DN50 - 2'' NPT FF | 745009 | S1007309 |
€542.73
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A105 N Full DN15 - 1/2'' Welding SW | 745115 | S1007310 |
€146.19
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A105 N Full DN20 - 3/4'' Welding SW | 745120 | S1007311 |
€173.60
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A105 N Full DN25 - 1'' Welding SW | 745125 | S1007312 |
€191.87
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A105 N Full DN32 - 1''1/4 Welding SW | 745132 | S1007313 |
€249.76
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A105 N Full DN40 - 1''1/2 Welding SW | 745140 | S1007314 |
€328.93
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A105 N Full DN50 - 2'' Welding SW | 745150 | S1007315 |
€542.73
(excl. btw)
|
add to cart |
