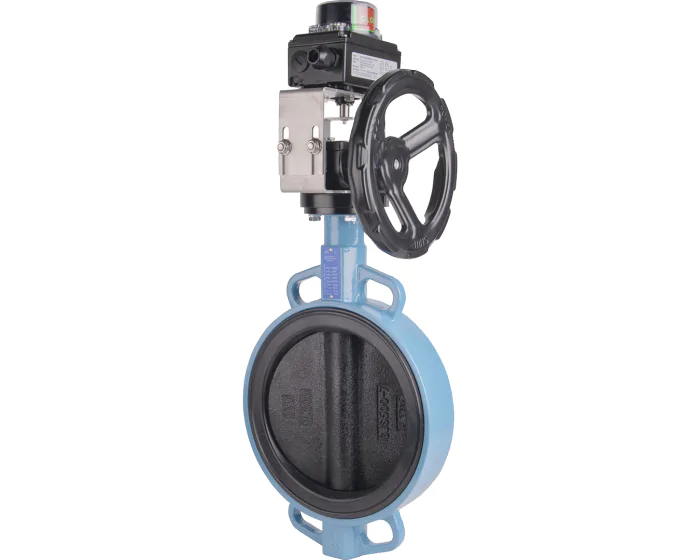

Ductile iron body (EN-GJS-500-7), coated cast iron disc, EPDM seat. PS: 16bar up to DN300 - TS: 90°C. Mounting between flanges PN10/16. Limit switch box SF012, 2 dry contacts SPDT. ACS approval.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Switch type | dry SPDT |
| DN | DN200 - 8'' |
| Face to Face (mm) | 60.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Seat | EPDM |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Chrome-plated ductile iron |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| TS max (°C) | 110 |
| TS min (°C) | -10 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' | 260310R0462012 | S1008979 |
€621.60
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10'' | 260311R0462012 | S1008980 |
€854.33
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN300 - 12'' | 260312R0462012 | S1008981 |
€1,051.33
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN350 - 14'' | 260313R0462012 | S1008982 |
€1,339.26
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN400 - 16'' | 260314R0462012 | S1008983 |
€1,599.73
(excl. btw)
|
add to cart |
