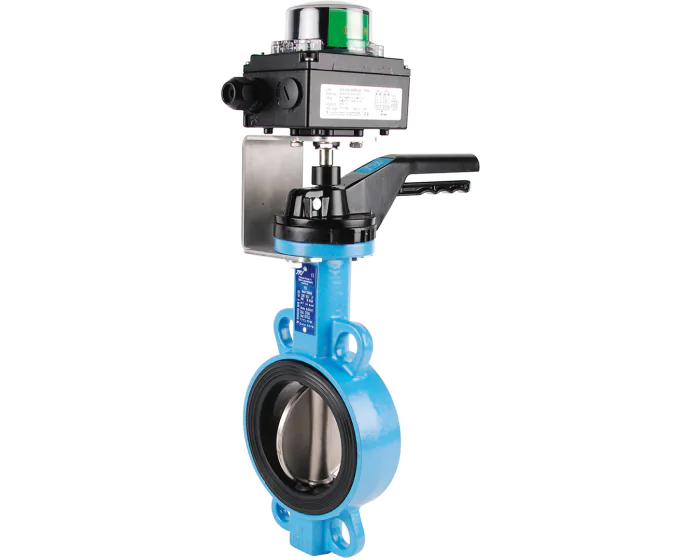

GS cast iron body (EN-GJS-500-7), 316 stainless steel butterfly, EPDM sleeve. PS : 16 bar - TS : 90°C. Mounting between flanges PN10/16. Limit switch box SF012, 2 dry contacts SPDT. ACS approval.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Shaft/stem matérial | Stainless steel 420 |
| Switch type | dry SPDT |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 33.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Seat | EPDM |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| TS max (°C) | 90 |
| TS min (°C) | -10 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Warranty period | 1 year |
| CE | Risk category III |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 | 2603030462012 | S1008940 |
€349.59
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' | 2603040462012 | S1008941 |
€352.34
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 | 2603050462012 | S1008942 |
€395.71
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' | 2603060462012 | S1008943 |
€397.80
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' | 2603070462012 | S1008944 |
€402.54
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' | 2603080462012 | S1008945 |
€452.64
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' | 2603090462012 | S1008946 |
€477.67
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' | 2603100462012 | S1008947 |
€570.71
(excl. btw)
|
add to cart |
